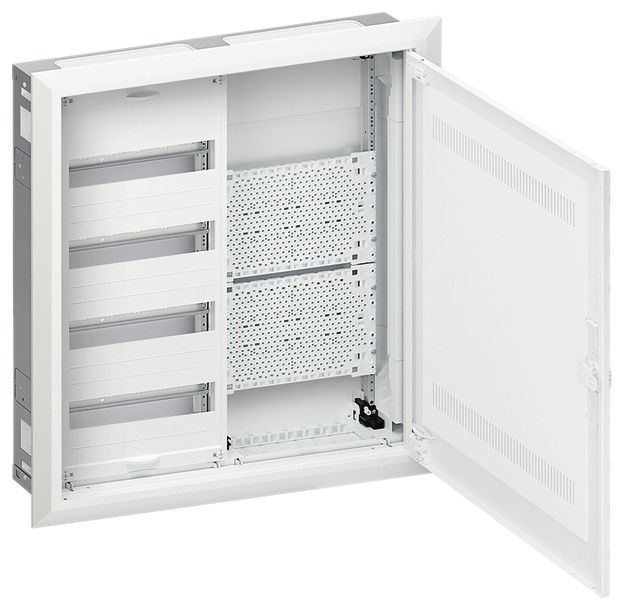

Hager FWU42K3 field distributor UP 48PLE+ Multimedia IP30 SKII HxWxD 657x565x112mm

Field distributor UP 48PLE+Multimedia, IP30, SKII, niche dimensions 657x565x115mm. Field distributor UP/HW certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consists of cabinet, frame and door, powder-coated in RAL 9010 (pure white). Complete distributor with installation kit on the left equipped with profiled support rails, 7.5 mm high top hat rails with 125 mm centre distance and matching contact protection covers, including 1xPE and 2xN QuickConnect terminal blocks mounted on supports, with multimedia field on the right equipped with plastic perforated plates on profiled support rails without contact protection covers and continuous vertical partitioning between multimedia and energy field. Cable entries at the top/bottom through removable plastic flange plates with pre-punched holes and integrated cable strain relief. Power entries that can be knocked out at the side and rear. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinge can be changed without tools. Door lock with sash lock and folding handle that can be sealed as standard. Right-hand doors maximum 2 fields wide. With double door with bar lock. Frame depth or overhang 13 mm. Notes: Interchangeable locking systems possible.
Type: FWU42K3
