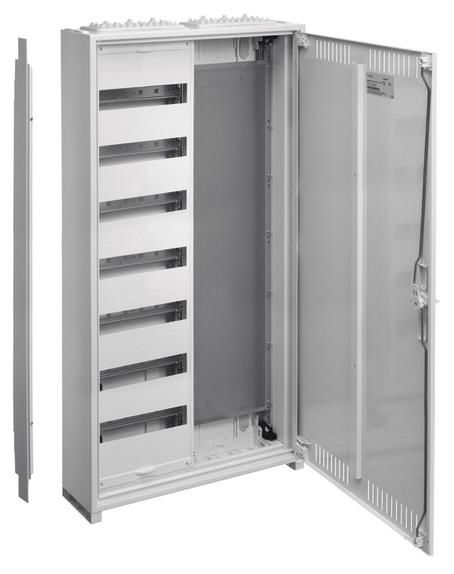

Hager FWB72K1 field distributor AP 84PLE with multi-field

Field distributor AP,univers,IP31,SKII,84PLE+media field,with closed door,1100x550x161,QC.Field distributor according to DIN EN 61 439-1/-3, dimension standard DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1. Consists of a cabinet with a slotted sheet metal door made of powder-coated and baked-on sheet steel. From a cabinet width of 800 mm (3-field), two-door construction. Right-hand doors maximum 2-field wide. Complete cabinet with installation kit on the left equipped with profiled mounting rails, 7.5 mm high top-hat rails with 125 mm center-to-center spacing and matching contact protection covers, including PE/N QuickConnect terminals mounted on supports, and with a multimedia field on the right equipped with plastic panels on profiled mounting rails without contact protection covers. Internal contact protection (SKII) made of plastic, cable entries at the top/bottom through removable plastic flange plates and continuous vertical partitioning between multimedia and energy field. Door with internal adjustable hinges and an opening angle of 130°. Doors can be hinged on the right and left. Door lock as standard with three-point bar lock (from cabinet width 800 mm) and sealable folding handle. For interchangeable locking systems, see accessories.
Type: FWB72K1
