Hager FG25LD
modular stand distributor univers 5-field IP54 SKI

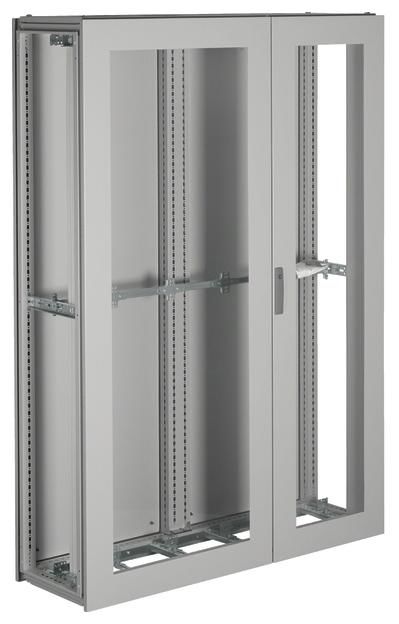

Modular cabinet, universal, IP 54, protection class I, 1900x1350x400mm, with clear view. Modular cabinet for indoor installation in accordance with VDE 0660 Part 600-1/-2, DIN EN 61 439-1/-2, dimensions in accordance with DIN 43870 protection class, IP 54 in accordance with DIN EN 60529 (VDE0470-1), protection class IP 3x with open door, air and creepage distances in accordance with VDE 0110, Part 1 and 2/1.89, rated insulation voltage AC 800 V, overvoltage category IV, pollution degree 3, insulation class II, protection class I earthed. Freestanding housing for single or row installation with removable rear and side panels, width 1 to 6 fields, 144 to 864 space units. Interior fitting system can be installed for network systems: 3 AC 50 Hz 230/400 V or 3 AC 50 Hz 400/690 V with a maximum feed-in current of 1600 A.
Cabinet frame made of galvanized sheet steel, cover plate and rear wall made of hot-dip galvanized sheet steel. With horizontal support rail for supporting rail stabilization, coupling plates for supporting rail fastening, prepared for univers N interior fitting system. Busbar bushings can be flanged next to each other through open side walls.
Transparent door with frame made of sheet steel, powder-coated and baked, lying on top with internal hinges, can be hinged on the right or left. Door opening angle 120°, double door from width 1100 mm, door lock with standard four-point rod lock (single door) or 3-point rod lock (two doors) with 3 mm double bit.
Upper cable entries: 2 rows are punched out in the cover plate for each field, different cable entries (plastic or metal) can be installed. Lower cable entries: open, base plate can be installed. Compliance with the protection class is required for installation of the cable entries at the top/bottom.
Note: The installation of a skirting board (100 mm or 200 mm) is always required (accessory)! Matching side walls are available as accessories. Door lock can be exchanged for other locks.
