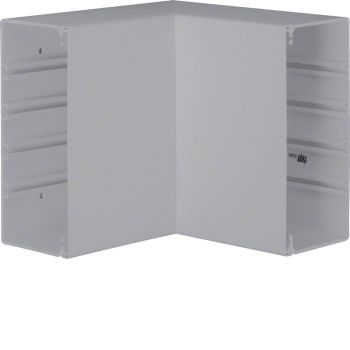

Hager FB9923047030 inner corner base profile made of PVC for FB 100x230 mm stone grey
|
271,60 EUR |
|||||||||||
|
( 323,20 EUR incl. VAT ) ≈ £227.06 | ≈ $300.12 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 640153 | ||||||||||
| Mfg Part No: | FB9923047030 | ||||||||||
| UPC/EAN: | 4012740020633 | ||||||||||
| Weight: | 1.355 kg | ||||||||||
| Type: | FB9923047030 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Cable duct accessories complete from HagerFurther products in category Cable duct accessories complete
All products of Hager
Product information for Hager FB9923047030:

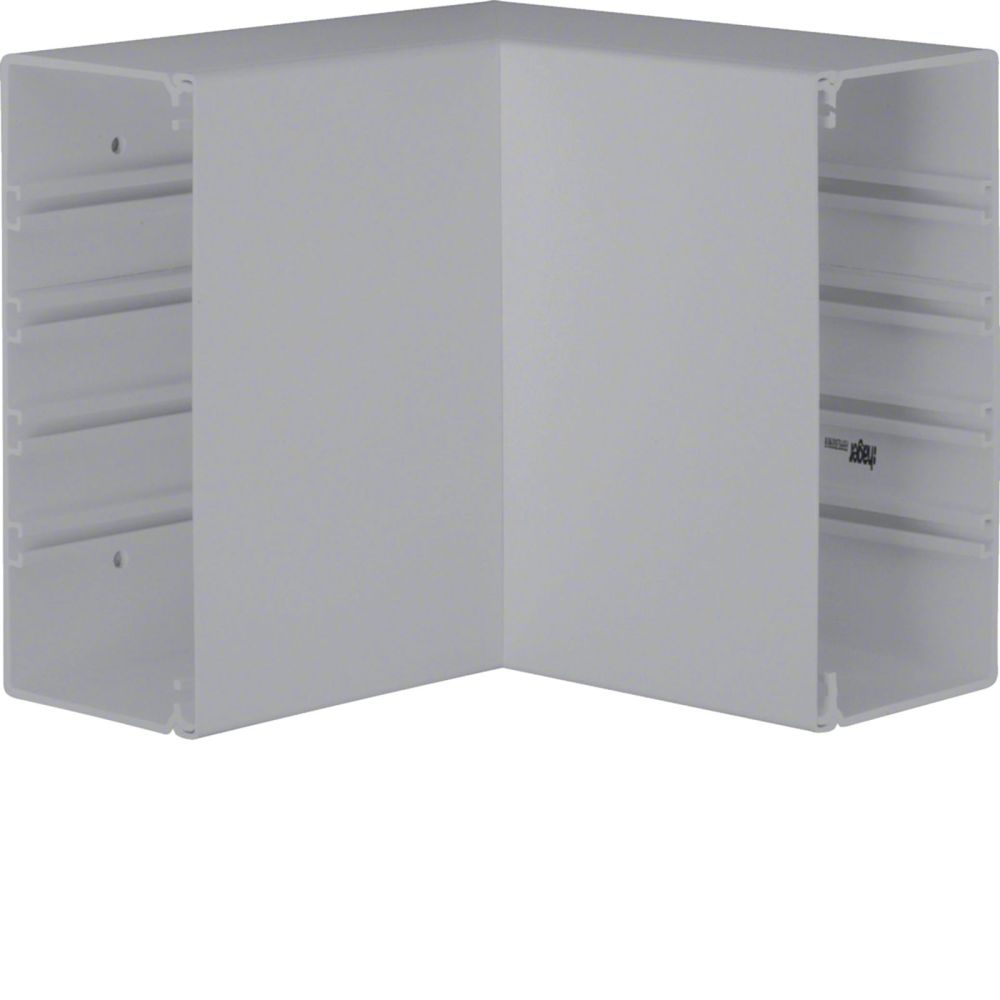

This product is an internal corner made of base profile from polyvinyl chloride (PVC) for the cable duct FB 100x230 mm, manufactured by Hager. It serves as a bending element within the interior of cable ducts to create a rectangular corner (90° angle). The internal corner consists of two parts: a lower part and an upper part, which are connected via a snap-fit fastening. The color is stone grey, corresponding to RAL number 7030, and the surface is untreated. It is specifically designed for use with the cable duct FB 100x230 mm, with the height (100 mm) and width (230 mm) dimensions precisely matched to this duct.
Applications
The internal corner is used within the interior of buildings where cable ducts are installed on walls or ceilings and a right-angled corner is required. It is suitable for installations in offices, apartments, commercial and industrial facilities, where orderly and aesthetically pleasing cable routing is required. The product is used in combination with the base profile FB 100x230 mm to ensure a closed, clean routing of cables and conduits.
Functions and Equipment in Detail
The internal corner consists of a lower part and an upper part, connected by a click-fastening mechanism. This snap-fit assembly allows for quick and secure installation without additional tools. The dimensions of 100 mm height and 230 mm width fit exactly to the base profile FB 100x230 mm. The dimension 'a' measures 250 mm, indicating the total length of the internal corner including connection areas. The surface is untreated, meaning no additional coatings or lacquers are applied.
Technology Explained Simply
The internal corner is made of polyvinyl chloride (PVC), a robust plastic known for its shape stability and weather resistance. The impact resistance is IK07, providing a certain level of mechanical protection against shocks and vibrations. The protection class IP20 protects against finger contact and solid foreign objects, but is not waterproof and not suitable for outdoor use. The operating temperature range is between -5 °C and 60 °C, enabling use in normal indoor environments. The product is not halogen-free and not suitable for functional integrity according to DIN 4102-12, meaning it is not intended for applications in fire protection.
Compatibility and Accessories
The internal corner is specifically developed for the cable duct FB 100x230 mm and fits precisely into this system. It is part of a modular cable duct system consisting of base profiles, covers, end caps, and other bending elements. Combination with other accessories such as external corners, T-pieces, or branch pieces allows for flexible design of complex cable routing systems. Installation is done via click-fastening, enabling quick and tool-free assembly.
Installation and Mounting
The internal corner is mounted by snapping together the lower and upper parts. The lower part is clicked onto the base profile of the cable duct, and the upper part is placed on top and also secured with a click-fit connection. The connection is stable and creates a clean, straight corner. No additional fastening or adhesive is required. The installation is tool-free, reducing mounting time and improving work quality.
Operational Advantages
The internal corner provides a clean and professional solution for right-angled corners in cable duct systems. The snap-fit mounting enables quick and secure installation without requiring additional tools. The use of PVC ensures high shape stability and durability. The stone grey color (RAL 7030) blends well into most indoor environments and contributes to a uniform visual appearance. The impact resistance IK07 offers sufficient protection against mechanical stress in indoor applications.
Not Included
The product is delivered without protective film. Installation is tool-free, and no additional fastening materials are required.
Applications
The internal corner is used within the interior of buildings where cable ducts are installed on walls or ceilings and a right-angled corner is required. It is suitable for installations in offices, apartments, commercial and industrial facilities, where orderly and aesthetically pleasing cable routing is required. The product is used in combination with the base profile FB 100x230 mm to ensure a closed, clean routing of cables and conduits.
Functions and Equipment in Detail
The internal corner consists of a lower part and an upper part, connected by a click-fastening mechanism. This snap-fit assembly allows for quick and secure installation without additional tools. The dimensions of 100 mm height and 230 mm width fit exactly to the base profile FB 100x230 mm. The dimension 'a' measures 250 mm, indicating the total length of the internal corner including connection areas. The surface is untreated, meaning no additional coatings or lacquers are applied.
Technology Explained Simply
The internal corner is made of polyvinyl chloride (PVC), a robust plastic known for its shape stability and weather resistance. The impact resistance is IK07, providing a certain level of mechanical protection against shocks and vibrations. The protection class IP20 protects against finger contact and solid foreign objects, but is not waterproof and not suitable for outdoor use. The operating temperature range is between -5 °C and 60 °C, enabling use in normal indoor environments. The product is not halogen-free and not suitable for functional integrity according to DIN 4102-12, meaning it is not intended for applications in fire protection.
Compatibility and Accessories
The internal corner is specifically developed for the cable duct FB 100x230 mm and fits precisely into this system. It is part of a modular cable duct system consisting of base profiles, covers, end caps, and other bending elements. Combination with other accessories such as external corners, T-pieces, or branch pieces allows for flexible design of complex cable routing systems. Installation is done via click-fastening, enabling quick and tool-free assembly.
Installation and Mounting
The internal corner is mounted by snapping together the lower and upper parts. The lower part is clicked onto the base profile of the cable duct, and the upper part is placed on top and also secured with a click-fit connection. The connection is stable and creates a clean, straight corner. No additional fastening or adhesive is required. The installation is tool-free, reducing mounting time and improving work quality.
Operational Advantages
The internal corner provides a clean and professional solution for right-angled corners in cable duct systems. The snap-fit mounting enables quick and secure installation without requiring additional tools. The use of PVC ensures high shape stability and durability. The stone grey color (RAL 7030) blends well into most indoor environments and contributes to a uniform visual appearance. The impact resistance IK07 offers sufficient protection against mechanical stress in indoor applications.
Not Included
The product is delivered without protective film. Installation is tool-free, and no additional fastening materials are required.
| General | |
| Height | 100 mm |
| Width | 230 mm |
| Model | Base unit and cover |
| Angle | 90 |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Surface protection | Untreated |
| Colour | Grey |
| RAL-number | 7030 |
| Type of fastening | Snap on |
| Degree of protection (IP) | IP20 |
| Impact strength | IK07 |
| Working temperature | 60 |
| Halogen free | |
| Suitable for circuit integrity | |
| With protection film | |
| Antibacterial treatment | |
