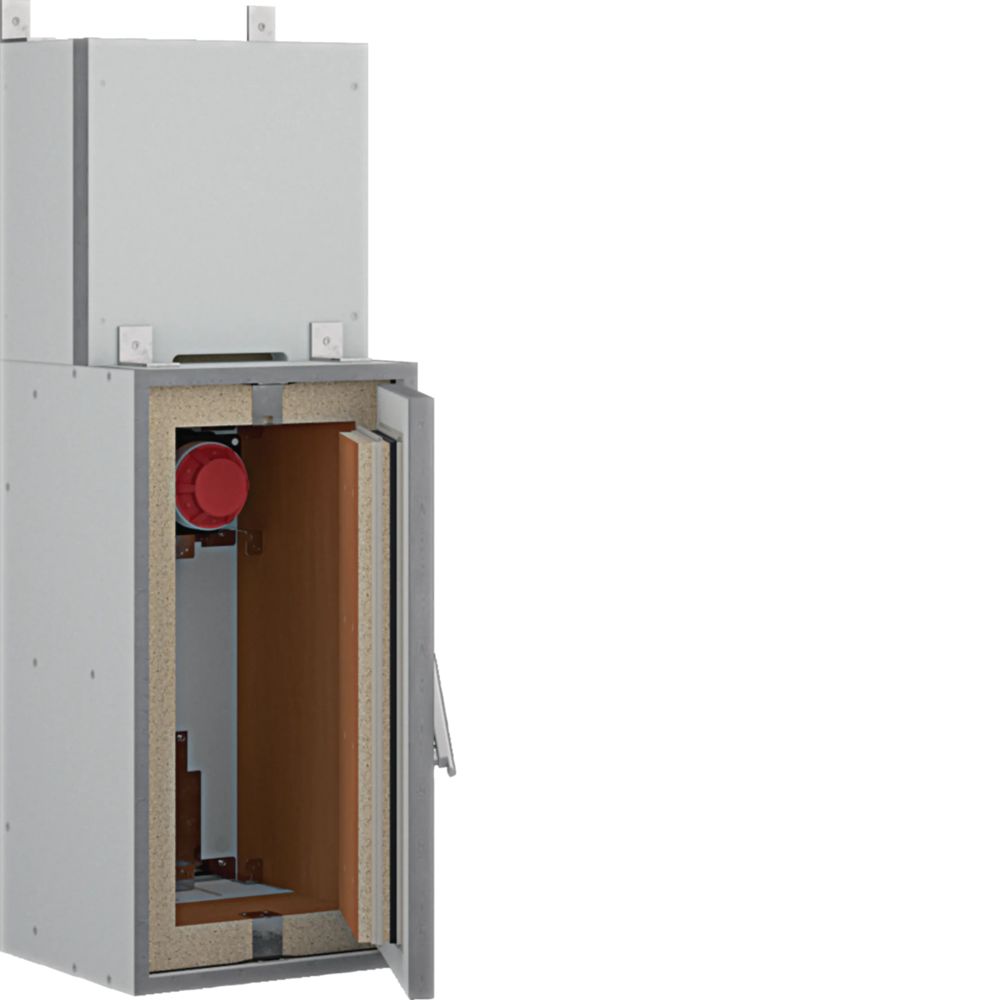

HAGER FB42SE fire protection cabinet univers 90min. 748x648x349mm

Fire protection cabinet, universal, 748 x 648 x 349 mm, 90 minutes. Electrical fire protection wall cabinet F90 for mounting on the wall to secure escape and rescue routes (fire load insulation), prepared for setting up a low-voltage distribution system up to 630A. Suitable for maintaining the functionality of safety systems in the event of a fire for over 90 minutes. The housing is made of non-combustible building material of class A2 - s1, d0, IP44, protection class II, color similar to RAL7035 and cable entries at the top/bottom. General building approval (DIBt): Z-86.1-82. Wall cabinet consisting of empty housing, fastening straps and fastening material, cable cooling attachment with insulation material. One or two doors that close into the body with door stop that can be changed to the right or left, opening angle 180°. Door with swivel lever, door lock via push rod with 2-point locking and with DIN half cylinder double bit, replaceable, door hinges made of stainless steel. Rear wall with active ventilation system 230V AC cold smoke-tight, automatically switches off in the event of fire via smoke detector and automatically foaming fire protection seal (all around).
Notes: A suitable cable cooling attachment is essential. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
Type: FB42SE
