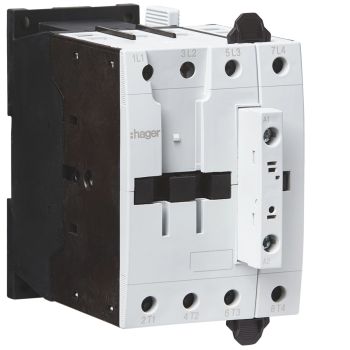

Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC
|
512,72 EUR 534,30 EUR |
|||||||||||
|
( 610,14 EUR incl. VAT ) ≈ £429.66 | ≈ $575.78 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 872950 | ||||||||||
| Mfg Part No: | EVN063E | ||||||||||
| UPC/EAN: | 3250612236435 | ||||||||||
| Weight: | 1.254 kg | ||||||||||
| Type: | EVN063E | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager EVN063E:
| General | |
| Rated control supply voltage Us at DC | 27 V |
| Voltage type for actuating | AC/DC |
| Rated operation current Ie at AC-1, 400 V | 63 A |
| Rated operation current Ie at AC-3, 400 V | 40 A |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Rated operation current Ie at AC-4, 400 V | 25 A |
| Rated operation power at AC-4, 400 V | 12 kW |
| Rated operation power NEMA | 22 kW |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Screw connection |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 4 |
| Depth | 114 mm |
| Height | 115 mm |
| Operating voltage at AC 50 Hz | 690 V |
| Operating voltage at AC 60 Hz | 690 V |
| Width | 74 mm |
| Modular version | |
Questions & answers
What is the delivery time of Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC?
The article Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager EVN063E to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC always at the best possible price. We can give you a discount of 2% on Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Hager EVN063E power contactor 4P 63 A at AC-1 24 VDC we can offer you a price of 466,58 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
