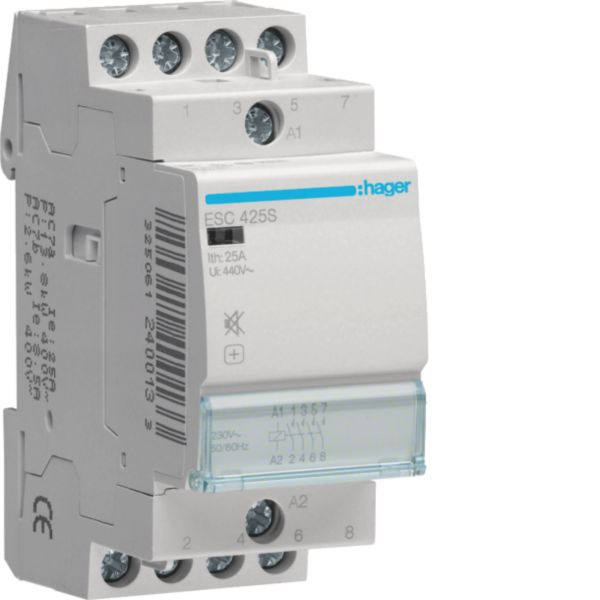

Hager ESC425S contactor noiseless 25 A 4S 230 V
|
94,33 EUR |
|||||||||||
|
( 112,25 EUR incl. VAT ) ≈ £78.95 | ≈ $103.67 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 118510 | ||||||||||
| Mfg Part No: | ESC425S | ||||||||||
| UPC/EAN: | 3250612400133 | ||||||||||
| Weight: | 0.207 kg | ||||||||||
| Type: | ESC425S | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ESC425S:
Installation contactor is the product type, specifically designed for mounting in distribution boxes or enclosures. The hum-free design means that the contactor does not produce characteristic noises during operation, making it particularly suitable for rooms with high noise sensitivity such as offices, apartments, or medical facilities. The control voltage of 230 V AC is supplied via a control signal that activates or deactivates the contactor.
Applications include switching heating systems, lighting systems, and other electrical consumers in residential and commercial buildings. The maximum load capacity is 1900 W for incandescent lamps and 950 VA for fluorescent lamps. In a dual switching configuration, a load of up to 1990 VA is possible, while for parallel-compensated fluorescent lamps, a load of 810 VA is permitted. These values are relevant for planning the electrical installation to ensure safe and overload-free operation.
Functions and equipment in detail include four closing contacts, which ensure the connection of loads in the closed state. There are no opening contacts. The contactor is not equipped with a manual override lever, meaning it is operated exclusively via an electrical control signal. The contact arrangement allows for clear assignment of switching functions in the circuit diagram. The integrated labeling field enables easy on-site identification of functions.
Technology explained simply shows that the contactor features a DC magnetic system responsible for the hum-free operation. This system includes a protection circuit against overvoltage and for limiting transient voltage spikes, which increases service life and reliability. The insulation voltage is 440 V, and the impulse voltage withstand is 4000 V, ensuring electrical safety. The operating temperature ranges from -10 °C to 50 °C, making the contactor suitable for use in rooms with fluctuating temperatures.
Compatibility and accessories include the possibility of installing additional components later. Suitable accessories include the ESC080 auxiliary switch 6 A 1S+1Oe, the LZ060 spacing block for heat dissipation, and the ESC002 sealing cap for contactors 2M. The spacing block is particularly required when multiple contactors are installed directly next to each other to ensure sufficient heat dissipation. The sealing cap serves to prevent unauthorized manipulation.
Mounting and installation is carried out in a panel mounting format with a width of 2 module units. The mounting depth is 60 mm, and the dimensions are defined with a height of 83 mm and a width of 35.75 mm. The connection cross-sections range from 1 to 6 mm² for flexible conductors and from 1 to 10 mm² for rigid conductors. The nominal torque is 1.20 Nm, which must be considered during installation to ensure a secure connection.
Operational advantages include quiet operation, a long service life with up to 100,000 mechanical and 30,000 electrical switching operations, and reliability in switching loads. RoHS compliance ensures environmental compatibility. The contactor is designed for usage category AC-7a/AC-7b, making it suitable for use in heating and lighting systems. The integrated contact position indicator allows for quick visual inspection of the switching state.
The protection rating IP2X ensures protection against finger contact and against solid foreign objects, but not against water or dust. Therefore, the contactor is intended for indoor use only, not for outdoor or damp environments. The service life and load capacity values are designed for use in installations, with the manufacturer’s notes indicating that hum-free contactors are not suitable for 24/7 operation and industrial contactors must be used in such cases.
| General | |
| Rated operating voltage | 400 V |
| Rated operation current | 25 A |
| Rated excitation voltage | 230 V |
| Voltage type (operating voltage) | AC |
| Voltage type (excitation voltage) | AC |
| Number of contacts as normally open contact | 4 |
| Number of contacts as normally closed contact | 0 |
| Max. incandescent lamp load | 1900 W |
| Max. load fluorescent lamp | 950 VA |
| Max. load fluorescent lamp (Duo circuit) | 1990 VA |
| Max. load fluorescent lamp (parallel compensated) | 810 VA |
| Built-in depth | 60 mm |
| Degree of protection (IP) | IP2X |
| Width in number of modular spacings | 2 |
| Slider for hand switch | |
| Additional equipment possible | |
| With day/night function | |
