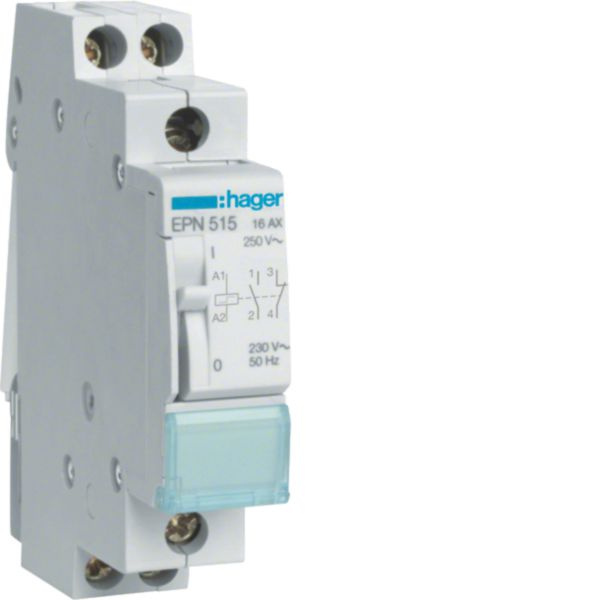

Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A
|
50,06 EUR 52,17 EUR |
|||||||||||
|
( 59,57 EUR incl. VAT ) ≈ £41.95 | ≈ $56.22 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 486075 | ||||||||||
| Mfg Part No: | EPN515 | ||||||||||
| UPC/EAN: | 3250612369577 | ||||||||||
| Weight: | 0.14 kg | ||||||||||
| Type: | EPN515 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager EPN515:
- Standards: DIN VDE 0632T.1, E VDE 0632T.502/A1/A2
- The impulse control of lighting circuits up to 16 A
- AC and DC operation
- Contact position indicator and manual transmission
- 4 different accessories:
- Central-off for central control of multiple lighting circuits
- Multi-stage central-off for higher-level central control of individual central-Off
- Auxiliary switch 1 NO + 1 NC for remote indication
- Continuous signal on-off control with external control sensors with pulse duration, eg switch or limit switch
- Electric shock protection to DIN VDE 0106 part 100
Contact: 1 NC +1
Current: 16 A
Coil voltage AC 230 V
Type: EPN515
Quantity: 1 unit.
| General | |
| Function | Mechanical switch |
| Mounting method | DIN rail |
| Width in number of modular spacings | 17.5 |
| Built-in depth | 63 mm |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Control voltage 1 | 230 V |
| Type of control voltage 1 | AC |
| Frequency control voltage 1 | 60 Hz |
| Control voltage 2 | 110 V |
| Type of control voltage 2 | DC |
| Frequency control voltage 2 | 60 Hz |
| Rated switch current | 16 A |
| Supply voltage | 250 V |
| Voltage type of supply voltage | AC |
| Max. incandescent lamp load | 1800 W |
| Max. load fluorescent lamp | 800 VA |
| Max. load fluorescent lamp (Duo circuit) | 1600 VA |
| Max. load fluorescent lamp (parallel compensated) | 900 VA |
| Max. switching current (cos phi = 0.6) | 16 A |
| Manual operation | |
Questions & answers
What is the delivery time of Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A?
The article Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager EPN515 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A always at the best possible price. We can give you a discount of 2% on Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager EPN515 remote switch 1NO+1NC 230 V AC 110 V DC 16 A we can offer you a price of 45,18 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
