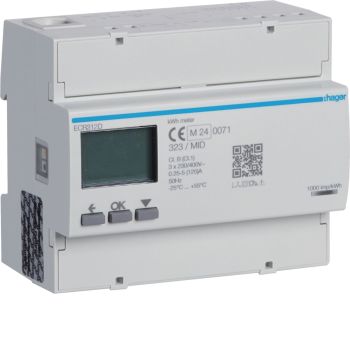

Hager ECR312D energy meter 3-phase direct 125 A 6 M MODBUS MID
|
687,04 EUR 715,97 EUR |
|||||||||||
|
( 817,58 EUR incl. VAT ) ≈ £575.74 | ≈ $771.55 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 607545 | ||||||||||
| Mfg Part No: | ECR312D | ||||||||||
| UPC/EAN: | 3250610008188 | ||||||||||
| Weight: | 0.689 kg | ||||||||||
| Type: | ECR312D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ECR312D:
| General | |
| Type of meter | Electronic |
| Nominal current (In) | 125 A |
| Max. current (Imax) | 125 A |
| Nominal voltage (Un) N-L | 276 V |
| Nominal voltage (Un) L-L | 480 V |
| Frequency | 65 Hz |
| Accuracy class | B |
| Pole type | Four conductor |
| Model | Direct measurement |
| Energy type | Effective power and blind power |
| Suitable for | Purchase/supply |
| Tariff type | Multi-tariff |
| Tariff control | Internal/external |
| Approval | Measuring Instruments Directive |
| Pulse output | Optic |
| Pulse type | D0 |
| Pulse rate | 1000 |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adapter) |
| Width in number of modular spacings | 6 |
| Type of interface | Modbus |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 2 |
| Depth | 60 mm |
| Height | 92 mm |
| Power consumption | 0.6 W |
| Width | 107 mm |
| Measuring type load profile | |
| Escapement mechanism | |
| Calibrated | |
| EEC40 signature | |
| With lock code | |
