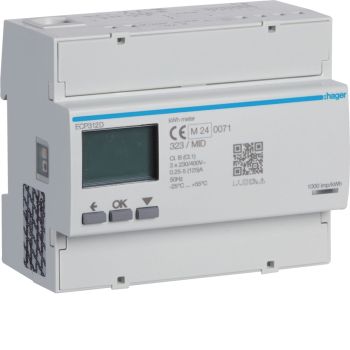

Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID
|
557,46 EUR 580,93 EUR |
|||||||||||
|
( 663,38 EUR incl. VAT ) ≈ £467.15 | ≈ $626.03 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 876724 | ||||||||||
| Mfg Part No: | ECP312D | ||||||||||
| UPC/EAN: | 3250610008157 | ||||||||||
| Weight: | 0.619 kg | ||||||||||
| Type: | ECP312D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ECP312D:
| General | |
| Type of meter | Electronic |
| Nominal current (In) | 125 A |
| Max. current (Imax) | 125 A |
| Nominal voltage (Un) N-L | 276 V |
| Nominal voltage (Un) L-L | 480 V |
| Frequency | 65 Hz |
| Accuracy class | B |
| Pole type | Four conductor |
| Model | Direct measurement |
| Energy type | Effective power and blind power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Approval | Measuring Instruments Directive |
| Pulse output | Electrical |
| Pulse type | S0 |
| Pulse rate | 200 Imp/kWh (kvarh) |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adapter) |
| Width in number of modular spacings | 6 |
| Type of interface | Other |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 2 |
| Depth | 60 mm |
| Height | 92 mm |
| Power consumption | 0.6 W |
| Width | 107 mm |
| Measuring type load profile | |
| Escapement mechanism | |
| Calibrated | |
| EEC40 signature | |
| With lock code | |
Questions & answers
What is the delivery time of Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID?
The article Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ECP312D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID always at the best possible price. We can give you a discount of 2% on Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Hager ECP312D energy meter 3-phase direct 125 A 6 M S0 MID we can offer you a price of 519,83 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
