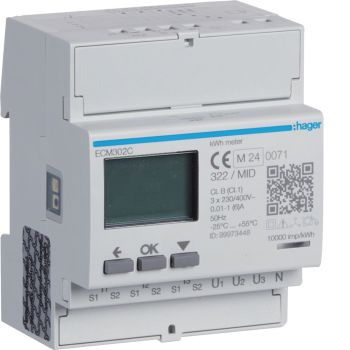

Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS
|
535,42 EUR 557,96 EUR |
|||||||||||
|
( 637,15 EUR incl. VAT ) ≈ £448.68 | ≈ $601.28 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 877083 | ||||||||||
| Mfg Part No: | ECM302C | ||||||||||
| UPC/EAN: | 3250610008119 | ||||||||||
| Weight: | 0.249 kg | ||||||||||
| Type: | ECM302C | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ECM302C:
| General | |
| Type of meter | Electronic |
| Nominal current (In) | 5 A |
| Max. current (Imax) | 6 A |
| Nominal voltage (Un) N-L | 276 V |
| Nominal voltage (Un) L-L | 480 V |
| Frequency | 65 Hz |
| Accuracy class | B |
| Pole type | Four conductor |
| Model | Measurement transformer |
| Energy type | Effective power and blind power |
| Suitable for | Purchase/supply |
| Tariff type | Multi-tariff |
| Tariff control | Internal/external |
| Approval | Measuring Instruments Directive |
| Pulse output | Optic |
| Pulse type | D0 |
| Pulse rate | 1000 |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adapter) |
| Width in number of modular spacings | 4 |
| Type of interface | M-bus |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 2 |
| Depth | 60 mm |
| Height | 90 mm |
| Power consumption | 0.6 W |
| Width | 72 mm |
| Measuring type load profile | |
| Escapement mechanism | |
| Calibrated | |
| EEC40 signature | |
| With lock code | |
Questions & answers
What is the delivery time of Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS?
The article Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ECM302C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS always at the best possible price. We can give you a discount of 2% on Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Hager ECM302C energy meter 3-phase for transformer ratio 1A or 5A 4M MBUS we can offer you a price of 499,28 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
