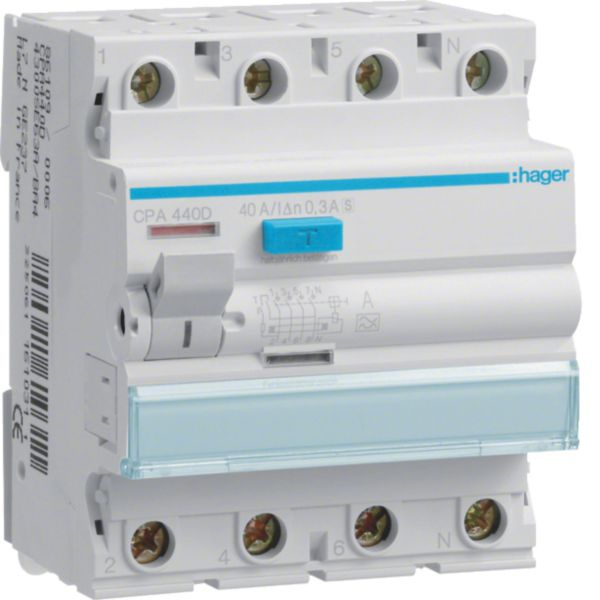

Hager CPA440D residual current circuit breaker 4-pole 6kA 40A 300mA type S
|
234,46 EUR |
|||||||||||
|
( 279,01 EUR incl. VAT ) ≈ £196.24 | ≈ $257.67 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 868181 | ||||||||||
| Mfg Part No: | CPA440D | ||||||||||
| UPC/EAN: | 3250611610311 | ||||||||||
| Weight: | 0.373 kg | ||||||||||
| Type: | CPA440D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CPA440D:
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 40 A |
| Rated fault current | 0.3 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 5 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 7.20 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
