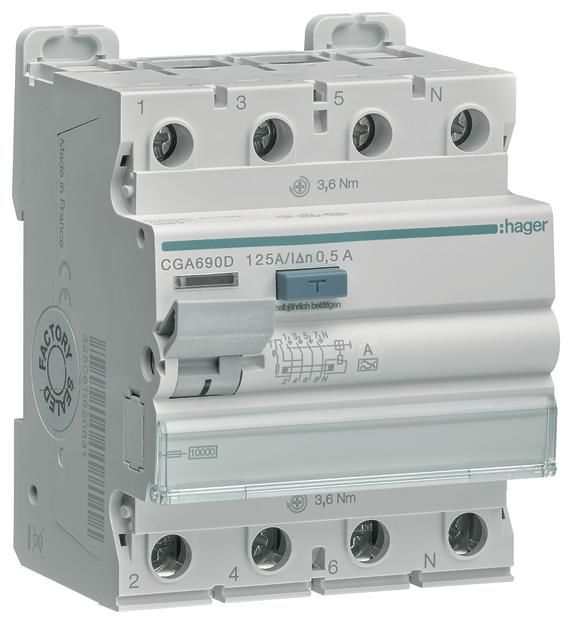

Hager CGA690D FI switch 4P 10kA 125A 500mA Type A
|
1.174,20 EUR 1.223,64 EUR |
|||||||||||
|
( 1.397,30 EUR incl. VAT ) ≈ £983.98 | ≈ $1,318.63 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1904111 | ||||||||||
| Mfg Part No: | CGA690D | ||||||||||
| UPC/EAN: | 3250611623274 | ||||||||||
| Weight: | 0.369 kg | ||||||||||
| Type: | CGA690D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CGA690D:
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 125 A |
| Rated fault current | 0.5 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 3 kA |
| Frequency | 50/60 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section solid-core | 50 mm² |
| Power loss | 29.20 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CGA690D FI switch 4P 10kA 125A 500mA Type A?
The article Hager CGA690D FI switch 4P 10kA 125A 500mA Type A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CGA690D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CGA690D FI switch 4P 10kA 125A 500mA Type A always at the best possible price. We can give you a discount of 2% on Hager CGA690D FI switch 4P 10kA 125A 500mA Type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager CGA690D FI switch 4P 10kA 125A 500mA Type A we can offer you a price of 1.121,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
