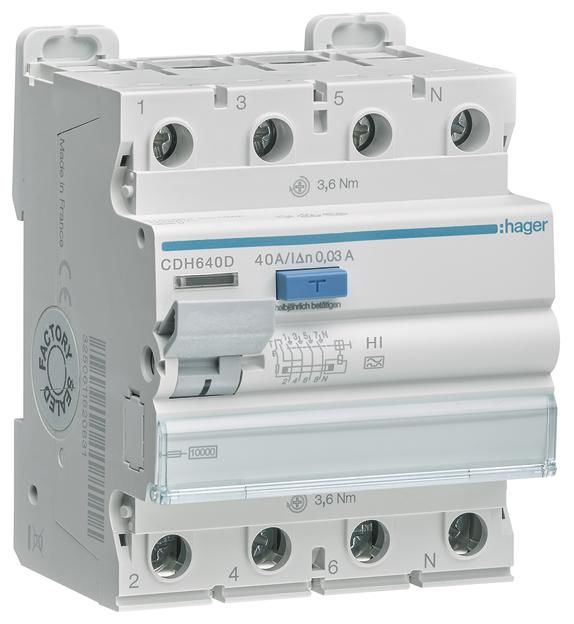

Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI
|
303,43 EUR 316,21 EUR |
|||||||||||
|
( 361,08 EUR incl. VAT ) ≈ £254.27 | ≈ $340.75 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1904115 | ||||||||||
| Mfg Part No: | CDH640D | ||||||||||
| UPC/EAN: | 3250611620686 | ||||||||||
| Weight: | 0.369 kg | ||||||||||
| Type: | CDH640D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDH640D:
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 40 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 5 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 70 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 4.39 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI?
The article Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CDH640D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI always at the best possible price. We can give you a discount of 2% on Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager CDH640D FI switch 4P 10kA 40A 30mA Type HI we can offer you a price of 292,05 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
