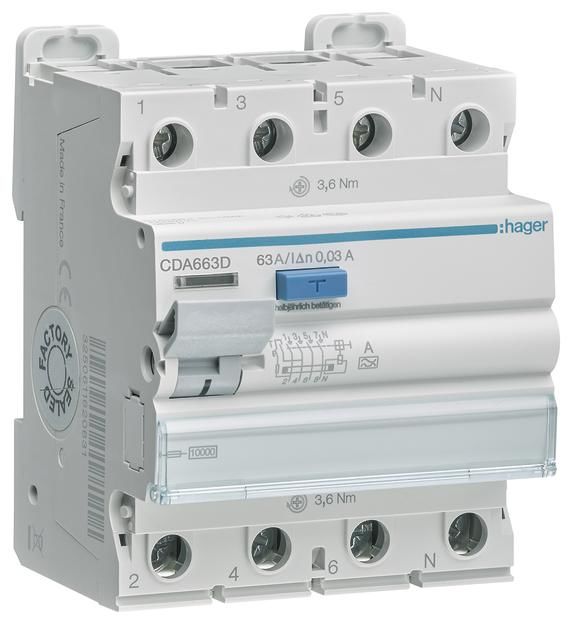

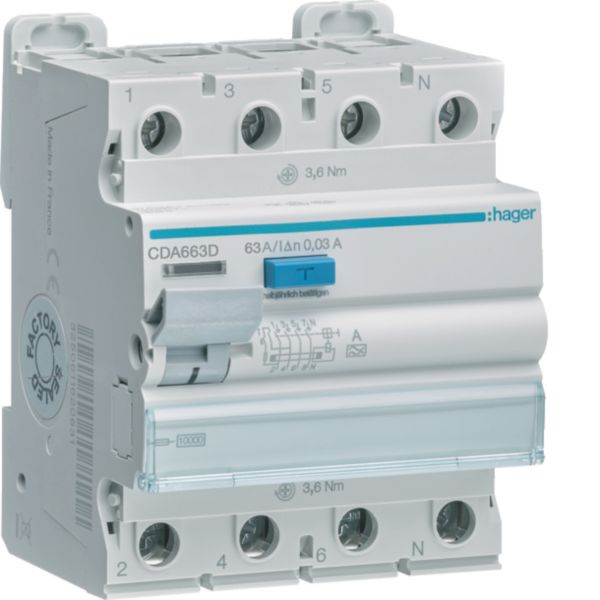

Hager CDA663D FI switch 4P 10kA 63A 30mA Type A
|
399,85 EUR 416,69 EUR |
|||||||||||
|
( 475,82 EUR incl. VAT ) ≈ £335.07 | ≈ $449.03 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1349961 | ||||||||||
| Mfg Part No: | CDA663D | ||||||||||
| UPC/EAN: | 3250611620655 | ||||||||||
| Weight: | 0.369 kg | ||||||||||
| Type: | CDA663D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDA663D:
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Surge current capacity | 3 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 70 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 9.29 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CDA663D FI switch 4P 10kA 63A 30mA Type A?
The article Hager CDA663D FI switch 4P 10kA 63A 30mA Type A is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CDA663D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CDA663D FI switch 4P 10kA 63A 30mA Type A always at the best possible price. We can give you a discount of 2% on Hager CDA663D FI switch 4P 10kA 63A 30mA Type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager CDA663D FI switch 4P 10kA 63A 30mA Type A we can offer you a price of 348,87 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
