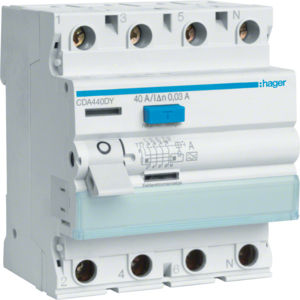

Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N
|
121,60 EUR 126,72 EUR |
|||||||||||
|
( 144,70 EUR incl. VAT ) ≈ £103.00 | ≈ $136.07 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 1104896 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CDA440DY | ||||||||||
| UPC/EAN: | 3250611610090 | ||||||||||
| Weight: | 0.305 kg | ||||||||||
| Type: | CDA440DY | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDA440DY:
| General | |
| Number of poles | 4 |
| Rated voltage | 400 V |
| Rated current | 40 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 6.50 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
Questions & answers
What is the delivery time of Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N?
The article Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager CDA440DY to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N always at the best possible price. We can give you a discount of 2% on Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N we can offer you a price of 111,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager CDA440DY residual current circuit breaker 4p 6kA 40A 30mA Type A test circuit L1-N
 |
Hager spacer 9 LZ060 mm, for mounting on DIN rail
Spacer Cross section: 9 mm ² Type: LZ060 Quantity: 1 unit. Lieske Part No.: 178169 Mfg Part No: LZ060 |
3,32 EUR 3,47 EUR
 ≈ £2.81 | ≈ $3.72
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager Locking MZN175, for LS-cabinet
Locking device for circuit breakers FI-switch FI-LS-switch Lieske Part No.: 565350 Mfg Part No: MZN175 |
8,26 EUR 8,61 EUR
≈ £7.00 | ≈ $9.24
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager CZ001 contact for RCD switch 2(2S+2Ö) 6A 240V
Accessories for RCD more auxiliary switches on request Design: 2 NO, 2 NC GA for 2 -, 4-pol. FI of 6-63 A Type: CZ ST. Lieske Part No.: 961035 Mfg Part No: CZ001 |
42,27 EUR 44,06 EUR
≈ £35.80 | ≈ $47.30
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
