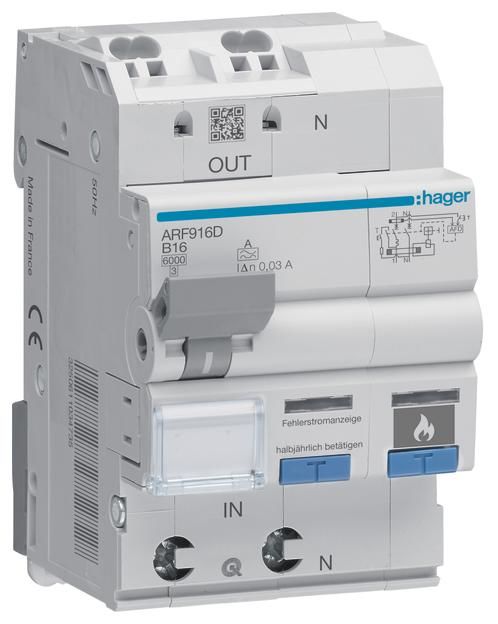

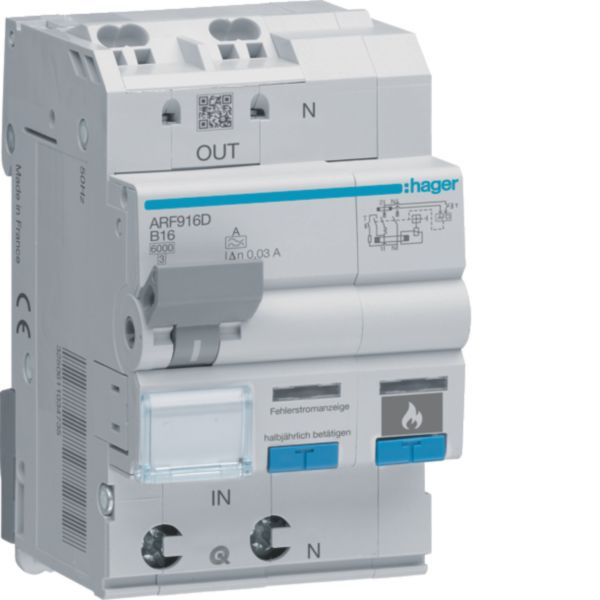

Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M
|
321,29 EUR 334,82 EUR |
|||||||||||
|
( 382,34 EUR incl. VAT ) ≈ £269.24 | ≈ $360.81 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1594010 | ||||||||||
| Mfg Part No: | ARF916D | ||||||||||
| UPC/EAN: | 3250611034766 | ||||||||||
| Weight: | 0.279 kg | ||||||||||
| Type: | ARF916D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ARF916D:
| General | |
| Rated voltage | 230 V |
| Rated current | 16 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity acc. EN 61009 | 6 kA |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Additional equipment attached at delivery | Fire protection switch |
| Control voltage type auxiliary equipment | AC |
| Degree of protection (IP) | IP2X |
| Ambient temperature during operating | 40 °C |
| Connectable conductor cross section multi-wired | 40 mm² |
| Connectable conductor cross section solid-core | 40 mm² |
| Frequency | 50 Hz |
| Mounting method | DIN rail |
| Number of poles (total) | 2 |
| Power loss | 5.76 W |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 500 V |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 kA |
| Voltage type | AC |
| Concurrently switching N-neutral | |
| With interlocking device | |
Questions & answers
What is the delivery time of Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M?
The article Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ARF916D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M always at the best possible price. We can give you a discount of 2% on Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M we can offer you a price of 294,78 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager ARF916D AFDD with FI-LS 1P+N 6kA B-16A 30mA A 3M
 |
Hager LZ060 spacing piece for heat dissipation
Spacer Cross section: 9 mm ² Type: LZ060 Quantity: 1 unit. Lieske Part No.: 178169 Mfg Part No: LZ060 |
3,32 EUR 3,47 EUR
 ≈ £2.78 | ≈ $3.73
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager MZ202 signal contact 1NO+1NC 6A 240V
Signal contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 502785 Mfg Part No: MZ202 |
45,79 EUR 47,72 EUR
≈ £38.37 | ≈ $51.42
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
 |
Hager MZ201 auxiliary contact 1NO+1NC 6A 240V for MCB, RCBO, RCCB
Auxiliary contact for MCB RCBO 125A 1 NO and 1 NC 6A 240V Lieske Part No.: 547425 Mfg Part No: MZ201 |
31,35 EUR 32,67 EUR
≈ £26.27 | ≈ $35.21
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager KDN263AZ phase bar 2P for ARFxxxD 12 modules
Phase rail 2P fork connection 10 mm² for ARFxxxD 12 modules. Phase rail for suitable modular devices. Lieske Part No.: 1594014 Mfg Part No: KDN263AZ |
11,97 EUR 12,47 EUR
≈ £10.03 | ≈ $13.44
Made to order · Delivery time approx. 20 workdaysinfo_outline
|
