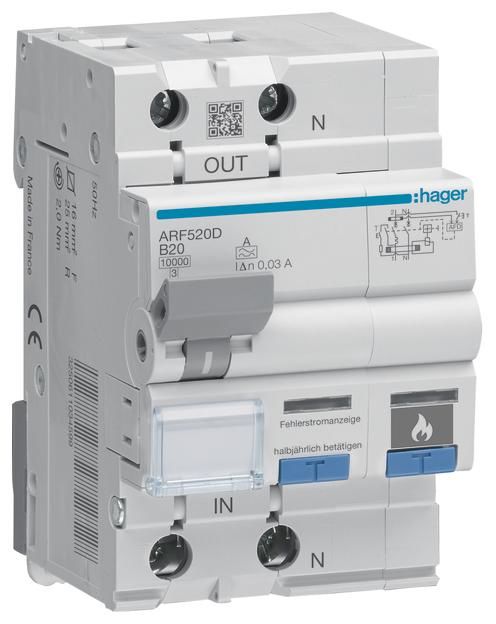

Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch
|
360,14 EUR 375,31 EUR |
|||||||||||
|
( 428,57 EUR incl. VAT ) ≈ £301.80 | ≈ $404.44 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2106307 | ||||||||||
| Mfg Part No: | ARF520D | ||||||||||
| UPC/EAN: | 3250611034636 | ||||||||||
| Weight: | 0.284 kg | ||||||||||
| Type: | ARF520D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ARF520D:
| General | |
| Rated voltage | 230 V |
| Rated current | 20 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity acc. EN 61009 | 10 kA |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 mm |
| Additional equipment attached at delivery | Fire protection switch |
| Degree of protection (IP) | IP2X |
| Ambient temperature during operating | 55 °C |
| Connectable conductor cross section multi-wired | 25 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Disconnection characteristic | Undelayed |
| Frequency | 50 Hz |
| Mounting method | DIN rail |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Power loss | 6.08 W |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 500 V |
| Voltage type | AC |
| Concurrently switching N-neutral | |
| Anti-nuisance tripping version | |
| With interlocking device | |
Questions & answers
What is the delivery time of Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch?
The article Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ARF520D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch always at the best possible price. We can give you a discount of 2% on Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager ARF520D AFDD Fi-LS 1P+N 10kA B-20A 30mA 3M arc fault/fire protection switch we can offer you a price of 343,93 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
