Hager ADX420D FI-LS 4P 10kA B-20A 30mA A

Your rating:
Average rating
product review for Hager ADX420D FI-LS 4P 10kA B-20A 30mA A
( 4.6 / 5 ) 11 ratings
Hager ADX420D
This image may differ from the desired article.
Hager ADX420DHager ADX420D
278,82 EUR
( 331,80 EUR incl. VAT )
≈ £233.37  |  ≈ $306.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces

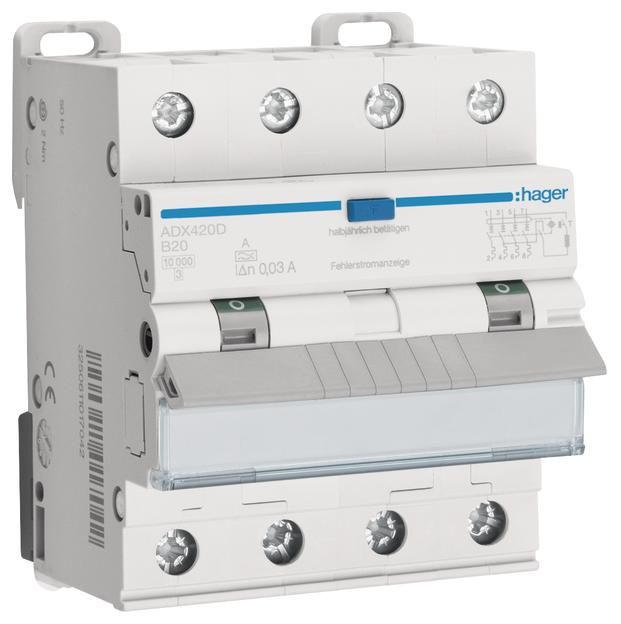

1x Hager ADX420D FI-LS 4P 10kA B-20A 30mA A
Datasheet:file_download Download
Lieske Part No.:145429
Mfg Part No: ADX420D
UPC/EAN: 3250611016977
Weight:0.431 kg
Type:ADX420D
Graduated prices net
From piecesPrice per pieces
4272,55 EUR
8266,27 EUR
12260,00 EUR
16253,73 EUR

Product information for Hager ADX420D:

The residual current circuit breaker ADX420D from Hager is a 4-pole switch with integrated residual current detection, overload and short-circuit protection. It is designed for use in 400 V three-phase circuits and complies with the standard DIN EN 61009-1 (VDE 0664-20). The device features a type B tripping characteristic, a rated current of 20 A, and a rated residual current of 30 mA, with residual current type A enabling detection of pulsating residual currents. The protection class IP2X protects against contact with fingers and larger objects, but is not waterproof. The compact housing is designed for mounting in modular enclosures and offers easy installation and expandability.

Applications

The ADX420D is suitable for industrial applications where reliable protection against overload, short-circuit, and residual currents is required. It can be used in electrical distributions operating at 400 V AC and is designed for operating temperatures up to 40 °C. The overvoltage category 3 and pollution degree 2 make it suitable for environments with moderate pollution and medium overvoltage stresses. The maximum operating altitude is 2000 m above sea level.

Functions and Equipment in Detail

The device combines mechanical and thermal tripping mechanisms, with the type B tripping characteristic ensuring immediate disconnection in case of short-circuit and delayed response in case of overload. The blue test button allows testing of the residual current function, and a residual current indicator signals the operating status. The switching neutral conductor ensures safe disconnection of all poles, including the neutral conductor. The locking device supports safe mounting and removal in the enclosure.

Technology Explained Simply

The switch protects electrical installations against overload, short-circuit, and dangerous residual currents. When a residual current of at least 30 mA occurs, the switch disconnects within seconds to prevent electrical hazards. The energy limitation class 3 reduces the thermal and electrical energy released during switching off, increasing safety. The rated voltage is 400 V, the rated insulation voltage is 500 V, and the impulse voltage withstand is 4 kV. The rated short-circuit breaking capacity Icn is 10 kA, indicating the switch's ability to safely interrupt a short-circuit current up to this level. The power loss is 11.7 W under nominal operation.

Compatibility and Accessories

The ADX420D is designed for mounting in modular enclosures and can be expanded with various accessories. Suitable cable bridges such as K67E (6 mm², 250 mm) or K67L (10 mm², 250 mm, fork) enable conductor connections. Spacers such as LZ060 support heat dissipation. Auxiliary and signaling contacts such as MZ201 or MZ202 can be used for status monitoring or control. The connection cross-sections are 1–16 mm² for multi-strand and 1–25 mm² for single-strand conductors.

Mounting and Installation

Mounting is performed in a modular enclosure, with the device having a width of 4 module units and an insertion depth of 70 mm. The connection terminals are designed for a nominal torque of 2 Nm. The lower connection terminal is designed for modular devices with the biconnect system, enabling easy and secure mounting. The device can be individually removed from the phase busbar system, facilitating maintenance and expansion.

Advantages in Operation

The ADX420D offers high reliability through the combination of overload, short-circuit, and residual current protection. The simple handling, clear indication, and expandability with accessories facilitate operation and maintenance. Compliance with DIN EN 61009-1 ensures adherence to European safety standards. The service life is 2000 electrical and 4000 mechanical switching operations, enabling long-term use. RoHS compliance ensures the environmental compatibility of the device.

General
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current20 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn acc. EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicB
Over voltage category3
Pollution degree2
Ambient temperature during operating40 °C
Width in number of modular spacings4
Built-in depth70 mm
Degree of protection (IP)IP2X
Connectable conductor cross section solid-core25 mm²
Connectable conductor cross section multi-wired16 mm²
Power loss11.7 W
Concurrently switching N-neutralyes
With interlocking deviceyes
Anti-nuisance tripping versionno


Product data sheet
Datasheet for Hager ADX420D, EAN: 3250611016977
