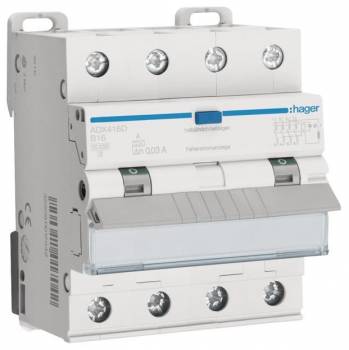

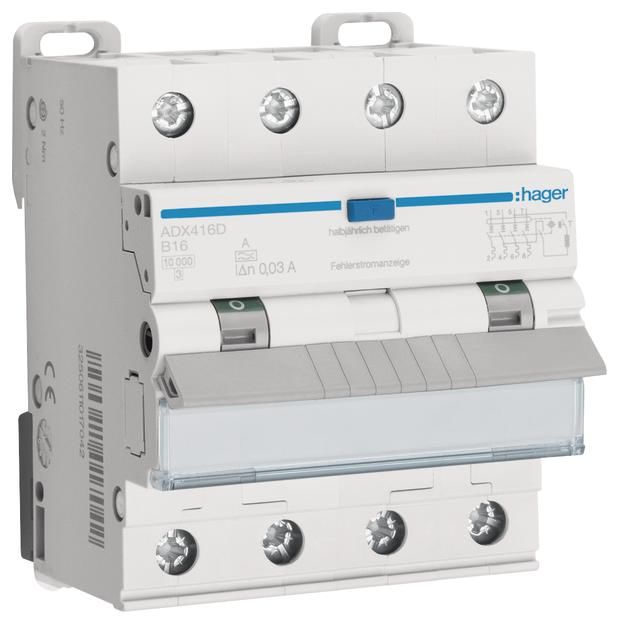

Hager ADX416D FI-LS 4P 10kA B-16A 30mA A

Your rating:
Average rating
product review for Hager ADX416D FI-LS 4P 10kA B-16A 30mA A
( 4.5 / 5 ) 50 ratings
Hager ADX416D
This image may differ from the desired article.
Hager ADX416DHager ADX416D
267,80 EUR
( 318,68 EUR incl. VAT )
≈ £224.15  |  ≈ $294.31
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Hager ADX416D FI-LS 4P 10kA B-16A 30mA A
Datasheet:file_download Download
Lieske Part No.:145419
Mfg Part No: ADX416D
UPC/EAN: 3250611016960
Weight:0.419 kg
Type:ADX416D
Graduated prices net
From piecesPrice per pieces
4261,77 EUR
8255,75 EUR
12249,72 EUR
16243,70 EUR

Product information for Hager ADX416D:

The residual current circuit breaker ADX416D from Hager is a 4-pole switch with a rated current of 16 A and a residual current detection of 30 mA. It is designed for the protection of electrical installations against overloads and earth faults, particularly in residential and commercial buildings. The switch is designed in accordance with VDE standards and offers reliable protection through the combination of thermal and magnetic tripping as well as residual current detection. It is rated for a nominal voltage of 400 V and a rated insulation voltage of 500 V, with a rated impulse withstand voltage of 4 kV. The tripping characteristic is B, ensuring immediate disconnection in case of overloads and short circuits. The switch features a switching neutral conductor and a locking device, enabling safe mounting and locking in the enclosure.

Applications

The ADX416D is intended for use in indoor electrical installations, particularly in residential and commercial buildings, where high safety against earth faults and overloads is required. It is designed for an operating temperature up to 40 °C and can be used at altitudes up to 2000 m above sea level. The protection rating IP2X protects against contact with fingers and larger objects, but not against water or dust. The overvoltage category 3 and pollution degree 2 meet the requirements for typical indoor installations.

Functions and Equipment in Detail

The switch detects residual currents of type A, meaning it reliably detects pulsating residual currents, such as those occurring with electronic devices. The energy limitation class 3 ensures limited energy release in case of a fault, increasing safety. The rated short-circuit breaking capacity is 10 kA, ensuring high performance during short-circuit events. The tripping characteristic is instantaneous, meaning the switch disconnects immediately upon reaching the tripping threshold. The surge current withstand is 3 kA, ensuring the robustness of the device under transient conditions.

Technology Explained Simply

The switch operates with a thermal and magnetic tripping function, which responds to overloads and short circuits. The thermal tripping is achieved through a bimetal strip, which heats up under continuous overload and triggers the switch to disconnect. The magnetic tripping reacts immediately to high current surges, such as those occurring during short circuits. The residual current detection is performed via a differential transformer, which measures the difference between incoming and outgoing current. When a difference of 30 mA is detected, the switch trips. The locking device enables safe mounting in the enclosure and prevents unintentional opening.

Compatibility and Accessories

The ADX416D is designed for mounting in standard switchboards with a width of 4 module units. Compatible accessories include cable bridges in various cross-sections (e.g. NYAF 6 mm² and 10 mm² in lengths of 100 mm and 250 mm), spacing elements for heat dissipation, signal contacts (MZ202) and auxiliary contacts (MZ201) for additional control functions. The 4P fork phase bar 10 mm² 63A 12M (KDN463A) is also compatible. These accessories enable flexible and safe installation in various switchgear systems.

Mounting and Installation

Mounting is performed in modular enclosures with biconnect technology. The connection terminals are designed for single-core conductors up to 25 mm² and multi-core conductors up to 16 mm². The nominal torque is 2 Nm for both upper and lower terminals. The mounting depth is 70 mm, the total height is 84 mm, and the width is 71 mm. Mounting is carried out in an environment with a maximum operating temperature of 40 °C and a storage/transport temperature range of -55 to 70 °C.

Advantages in Operation

The ADX416D offers high reliability through the combination of thermal, magnetic, and residual current tripping. The energy limitation class 3 reduces the risk of thermal damage during earth faults. The locking device increases safety during mounting and maintenance. Compatibility with various accessories allows flexible adaptation to different requirements. The power loss is 10.9 W, ensuring efficient operation. The service life is 2000 electrical and 4000 mechanical switching operations, ensuring a long operational life.

General
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current16 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn acc. EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicB
Over voltage category3
Pollution degree2
Ambient temperature during operating40 °C
Width in number of modular spacings4
Built-in depth70 mm
Degree of protection (IP)IP2X
Connectable conductor cross section solid-core25 mm²
Connectable conductor cross section multi-wired16 mm²
Power loss10.9 W
Concurrently switching N-neutralyes
With interlocking deviceyes
Anti-nuisance tripping versionno


Product data sheet
Datasheet for Hager ADX416D, EAN: 3250611016960
