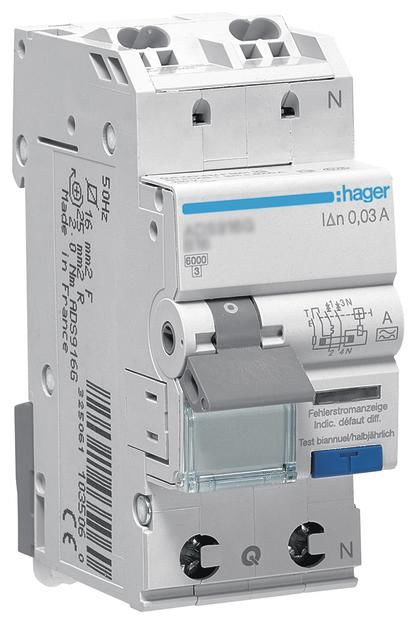

Hager ADS966D Fi-LS 1P+N 6kA C-16A 30mA Type A QC

Your rating:
Average rating
product review for Hager ADS966D Fi-LS 1P+N 6kA C-16A 30mA Type A QC
( 4.4 / 5 ) 22 ratings
Hager ADS966D
This image may differ from the desired article.
Hager ADS966DHager ADS966D
127,68 EUR
( 151,94 EUR incl. VAT )
≈ £106.87  |  ≈ $140.32
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Hager ADS966D Fi-LS 1P+N 6kA C-16A 30mA Type A QC
Datasheet:file_download Download
Lieske Part No.:349414
Mfg Part No: ADS966D
UPC/EAN: 3250611068228
Weight:0.214 kg
Type:ADS966D
Graduated prices net
From piecesPrice per pieces
5114,27 EUR
10100,87 EUR
1587,46 EUR
2074,05 EUR

Product information for Hager ADS966D:

The residual current circuit breaker ADS966D from Hager is a combined protection device for electrical installations, integrating overload and short-circuit protection as well as residual current protection in a single module. The device is designed for use in residential and commercial installations and provides protection against dangerous residual currents with a rated residual current of 30 mA. The 1P+N pole configuration enables protection of a live conductor and the neutral conductor, with the neutral conductor switching simultaneously. The C tripping characteristic and rated current of 16 A ensure reliable protection under normal operating conditions. The device has a breaking capacity of 6 kA, making it suitable for installations with high short-circuit currents. The QuickConnect technology simplifies mounting and installation, especially when connecting to phase bar systems.

Applications

The ADS966D is intended for use in indoor electrical installations, particularly in residential and commercial buildings, where high safety standards for power supply are required. The protection rating IP2X protects against contact with fingers and larger objects, but not against splashing water or dust. The operating temperature ranges from -25 °C to 40 °C, allowing use even in cooler environments. The maximum installation altitude is 2000 m above sea level, enabling use in mountainous regions. The overvoltage category 3 and pollution degree 2 meet the requirements for typical indoor installations.

Functions and Equipment in Detail

The device protects against overload and short-circuit via a thermal and magnetic tripping unit with tripping characteristic C. The residual current protection type A detects pulsating residual currents, such as those occurring with devices featuring rectifier or electronic control. The rated insulation voltage is 500 V, and the rated voltage is 240 V. The impulse voltage withstand of 4 kV ensures high electrical strength. Energy limitation class 3 reduces thermal and mechanical stress during a fault. The power loss is 5.20 W, limiting heat generation during operation.

Technology Explained Simply

The residual current circuit breaker ADS966D operates on the principle of differential current measurement: it monitors the current flow in the live and neutral conductors and trips when a difference of 30 mA is detected. This value is sufficient to prevent dangerous electrical contacts without unnecessarily frequent tripping. The tripping characteristic C ensures the switch does not trip under normal loads but reacts quickly in the event of a short-circuit. The QuickConnect technology enables fast and secure mounting on phase bar systems, reducing installation time. The terminals are designed for flexible conductors from 1 to 16 mm² and solid conductors from 1 to 25 mm².

Compatibility and Accessories

The device is designed for mounting on DIN rails and is compatible with various phase bar systems. Suitable accessories include phase bar models such as KDN263A (2P fork 10 mm²) and KDN451D (3P+N fork 16 mm²), as well as cable bridges like K67M (NYAF 10 mm², 250 mm) and K67F (NYAF 6 mm², 100 mm). Auxiliary and signal contacts such as MZ201 (auxiliary contact 1S+1Ö) and MZ202 (signal contact 1S+1Ö) can be used to extend functionality. End caps such as KZN024 (for 4-pole rails) or KZN023 (for 2- and 3-pole rails) serve to terminate and protect the rails.

Mounting and Installation

Mounting is done on a DIN rail, with the QuickConnect technology enabling fast and secure connection. The connection terminals are designed for flexible and solid conductors, with the nominal torque for both terminals being 2.1 Nm. The mounting depth is 68 mm, and the width corresponds to two modules (35 mm). The device lifespan is 2000 mechanical and 2000 electrical switching operations, ensuring high operational reliability over the service life.

Advantages in Operation

The ADS966D offers a compact solution for combining circuit protection and residual current protection. The high sensitivity of 30 mA and residual current protection type A increase safety in installations with electronic devices. The QuickConnect technology reduces installation time and minimizes errors during installation. The locking device ensures secure positioning in the enclosure. RoHS compliance guarantees environmentally compatible manufacturing.

Protection Rating and Operating Conditions

The protection rating IP2X protects against contact with fingers and larger objects, but is not suitable for outdoor use or in damp rooms. The operating temperature ranges from -25 °C to 40 °C, allowing use even in cooler environments. The humidity protection class is designed for all climate zones, enabling flexible use in various regions.

Compatibility and Accessories

The device is designed for mounting on DIN rails and is compatible with various phase bar systems. Suitable accessories include phase bar models such as KDN263A (2P fork 10 mm²) and KDN451D (3P+N fork 16 mm²), as well as cable bridges like K67M (NYAF 10 mm², 250 mm) and K67F (NYAF 6 mm², 100 mm). Auxiliary and signal contacts such as MZ201 (auxiliary contact 1S+1Ö) and MZ202 (signal contact 1S+1Ö) can be used to extend functionality. End caps such as KZN024 (for 4-pole rails) or KZN023 (for 2- and 3-pole rails) serve to terminate and protect the rails.

Mounting and Installation

Mounting is done on a DIN rail, with the QuickConnect technology enabling fast and secure connection. The connection terminals are designed for flexible and solid conductors, with the nominal torque for both terminals being 2.1 Nm. The mounting depth is 68 mm, and the width corresponds to two modules (35 mm). The device lifespan is 2000 mechanical and 2000 electrical switching operations, ensuring high operational reliability over the service life.

Advantages in Operation

The ADS966D offers a compact solution for combining circuit protection and residual current protection. The high sensitivity of 30 mA and residual current protection type A increase safety in installations with electronic devices. The QuickConnect technology reduces installation time and minimizes errors during installation. The locking device ensures secure positioning in the enclosure. RoHS compliance guarantees environmentally compatible manufacturing.

Protection Rating and Operating Conditions

The protection rating IP2X protects against contact with fingers and larger objects, but is not suitable for outdoor use or in damp rooms. The operating temperature ranges from -25 °C to 40 °C, allowing use even in cooler environments. The humidity protection class is designed for all climate zones, enabling flexible use in various regions.

General
Number of poles (total)2
Number of protected poles1
Rated voltage240 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current16 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity IEC 60947-26 kA
Rated short-circuit breaking capacity Icn acc. EN 61009-16 kA
Disconnection characteristicUndelayed
Surge current capacity0.25 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Over voltage category3
Pollution degree2
Ambient temperature during operating40 °C
Width in number of modular spacings2
Built-in depth68 mm
Degree of protection (IP)IP2X
Power loss5.20 W
Concurrently switching N-neutralyes
With interlocking deviceyes
Anti-nuisance tripping versionno


Product data sheet
Datasheet for Hager ADS966D, EAN: 3250611068228
