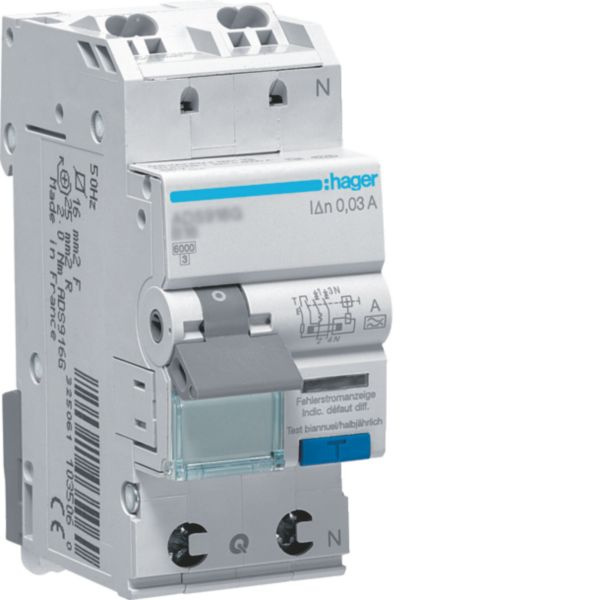

Hager ADS917D
FI circuit breaker 1P+N 127 V 6 kA B-16 A 30 mA Type A QC
|
125,49 EUR 130,78 EUR |
|||||||||||
|
( 149,33 EUR incl. VAT ) ≈ £105.16 | ≈ $140.93 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1342388 | ||||||||||
| Mfg Part No: | ADS917D | ||||||||||
| UPC/EAN: | 3250611011958 | ||||||||||
| Weight: | 0.214 kg | ||||||||||
| Type: | ADS917D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADS917D:
| General | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Rated voltage | 127 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 16 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity IEC 60947-2 | 6 kA |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 2 |
| Built-in depth | 68 mm |
| Degree of protection (IP) | IP20 |
| Power loss | 5.20 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
