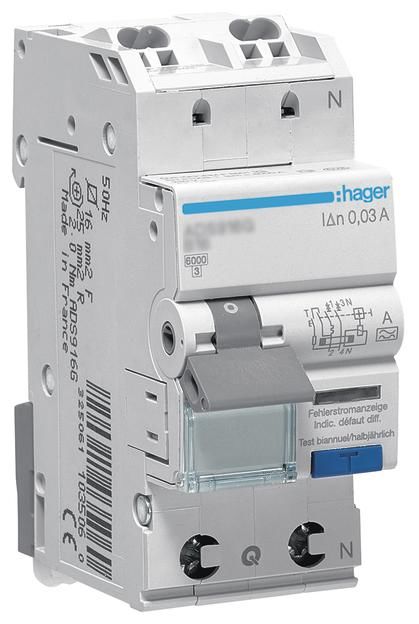

ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC
|
132,81 EUR 138,40 EUR |
|||||||||||
|
( 158,04 EUR incl. VAT ) ≈ £112.36 | ≈ $148.48 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 515066 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ADS906D | ||||||||||
| UPC/EAN: | 3250611068112 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | ADS906D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADS906D:
Residual current circuit breaker 1P+N 6kA B-6A 30mA Type A QuickConnect. Residual current circuit breaker in accordance with DIN EN 61009-1 (VDE 0664-20) with QuickConnect terminal, on the outgoing circuit up to 20 A and on the incoming circuit up to 63 A, blue test button and residual current display. Easy individual removal from the phase busbar system. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device.
| General | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 6 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity IEC 60947-2 | 6 kA |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 2 |
| Built-in depth | 68 mm |
| Degree of protection (IP) | IP2X |
| Power loss | 1.90 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
Questions & answers
What is the delivery time of ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC?
The article ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ADS906D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC always at the best possible price. We can give you a discount of 2% on ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of ADS906D Hager MCB, 1P + N 6kA B-6A 30mA Type A 240VAC QC we can offer you a price of 121,85 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
