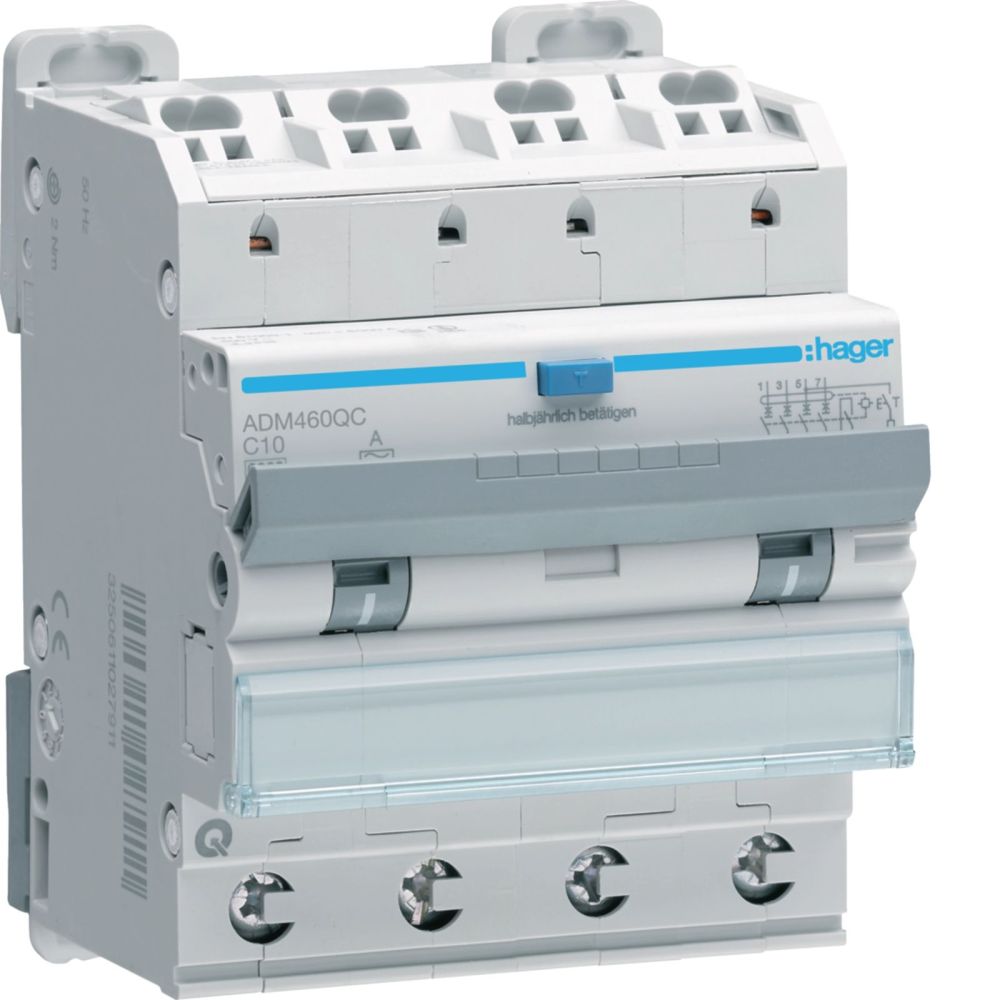

Hager ADM460QC
Fi-LS 4P 6kA C-10A 30mA Type A QC/QB 230/400V
|
253,36 EUR 264,03 EUR |
|||||||||||
|
( 301,50 EUR incl. VAT ) ≈ £212.32 | ≈ $284.52 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 874155 | ||||||||||
| Mfg Part No: | ADM460QC | ||||||||||
| UPC/EAN: | 3250611027973 | ||||||||||
| Weight: | 0.414 kg | ||||||||||
| Type: | ADM460QC | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADM460QC:
| General | |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 10 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 3 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | C |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 16 mm² |
| Power loss | 9.7 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
