Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min.

Your rating:
Average rating
product review for Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min.
( 4.5 / 5 ) 220 ratings

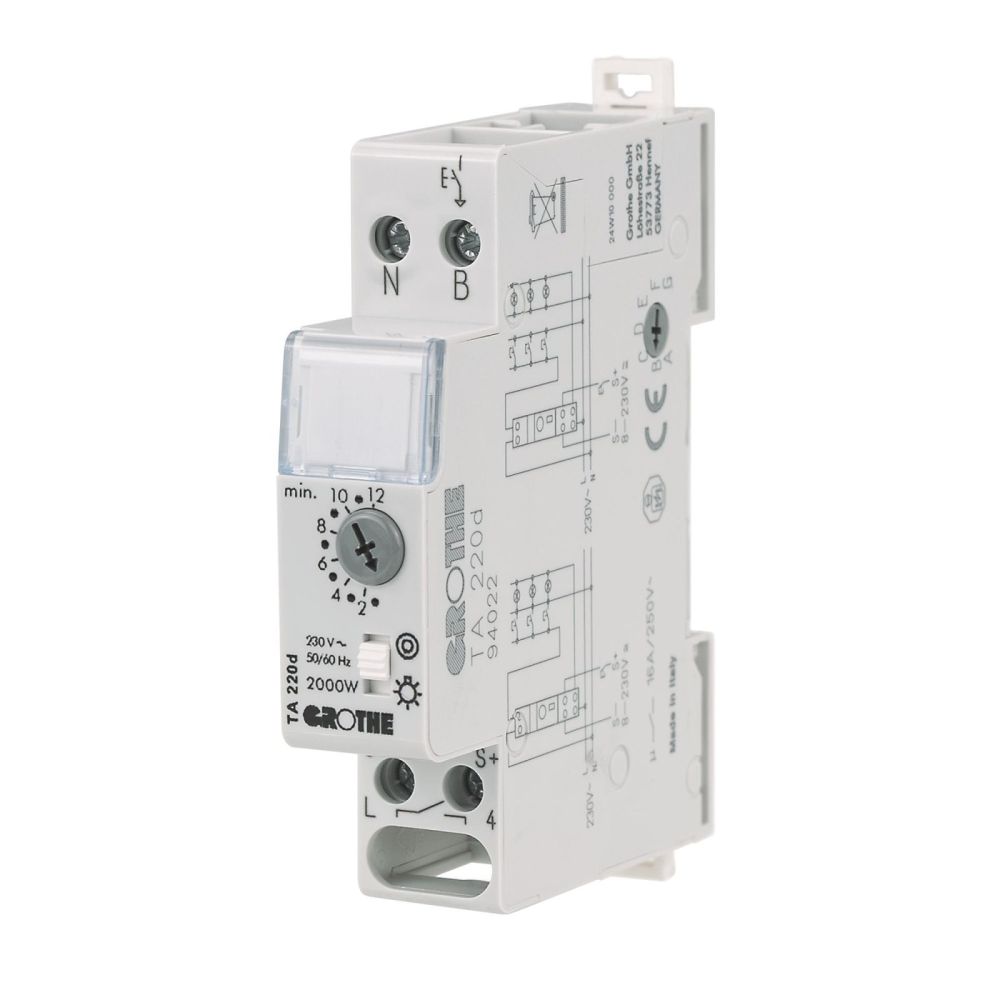

Grothe 94022
This image may differ from the desired article.
61,18 EUR 63,76 EUR
( 72,80 EUR incl. VAT )
≈ £51.21  |  ≈ $67.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 1 pieces
1x Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min.
Lieske Part No.:577618
Mfg Part No: 94022
UPC/EAN: 4011459940225
Weight:0.084 kg
Type:TA 220d

Product information for Grothe 94022:

The Grothe TA 220d is an electronic stairway light timer switch designed for installation in electrical distributions on a standard rail. It is used for the automatic control of lighting systems in stairwells, corridors, or other areas where time-controlled lighting is required. The device allows for stepless adjustment of the lighting duration up to 12 minutes, enabling adaptation to various requirements. The switching function is designed for 3- and 4-wire circuits and automatically detects the respective circuit type, eliminating the need for manual adjustment. When switching from a 4-wire to a 3-wire circuit, a device replacement is necessary in existing installations.

Applications

The TA 220d is specifically designed for built-in installation in electrical distributions and is suitable for residential and commercial buildings. It is typically used in stairwells, corridors, entrance areas, or other locations where time-controlled lighting is beneficial. Features such as the switch-off warning and constant lighting function support its use in public or shared spaces, where safe and user-friendly operation is required.

Functions and Equipment in Detail

A central feature of the device is the switch-off warning in accordance with DIN 18015-2, which signals approximately 30 seconds before the light is automatically switched off by flashing the light source multiple times. This warning can be deactivated as needed. Additionally, the switch offers a constant lighting function, which can be activated either at the light switch or directly on the device. This function is useful when continuous lighting is required for work or maintenance in the stairwell.

Technology Explained Simply

The switch operates with an electronic control that allows stepless adjustment of the switching time. The contact switching occurs at the zero crossing, meaning the switch only opens or closes the circuit when the voltage reaches zero. This reduces contact wear and extends the lifespan of the switching components as well as the connected lamps. The control voltage can range from 8 to 230 V, enabling flexible integration into various supply voltages. The maximum switching capacity is 2000 W, sufficient to operate a wide range of lighting solutions, including fluorescent tubes, LED, or incandescent lamps.

Compatibility and Accessories

The TA 220d is designed for use in 3- and 4-wire circuits and automatically detects the respective circuit type. It is compatible with standard installations in electrical distributions and can be integrated into existing circuits. The constant lighting function can be activated via the light switch or directly on the device, increasing operational flexibility.

Mounting and Installation

The switch is mounted in electrical distributions on a standard rail. Installation involves fitting the device into the enclosure, with electrical connections made according to the respective circuit type (3- or 4-wire). The automatic circuit detection reduces installation complexity. No additional tools or components are required beyond those standard for installation.

Operational Advantages

The stepless time adjustment allows precise adaptation to specific needs. The switch-off warning enhances safety, especially in high-usage areas. The constant lighting function provides flexibility during maintenance work. The zero-crossing switching protects electrical components and extends the lifespan of the device and connected lighting. The use of a control voltage ranging from 8 to 230 V broadens the application possibilities in various electrical systems.

General
Switching power2000 W
Control voltage8 to 230 V
Time settingcontinuously adjustable up to 12 minutes
Interrupting pre-warningin accordance with DIN 18015-2
Contact circuitAt zero crossing
Constant light functionon light switch or on device
Switching type3 and 4 wire configuration
InstallationOn standard rail


Questions & answers

What is the delivery time of Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min. ?

The article Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min. is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Grothe 94022 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min. always at the best possible price. We can give you a discount of 2% on Grothe 94022 TA 220d stair light timer 230 VAC switch-off warning 12 min. if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
