Grandstream GXP2200 EXT expansion module black, LCD keypad content_copy

The Grandstream GXP2200EXT is an expansion module for compatible Grandstream IP phones, extending the functionality of the base unit with additional control elements and display options. It is particularly designed to increase efficiency in managing high call volumes, for example in reception areas or for executives who need access to multiple contacts or lines. The module is powered via the host phone and can be connected via a Daisy-Chain connection to up to three additional GXP2200EXT modules, supporting up to 160 contacts or extensions in total.

Applications

The GXP2200EXT is designed for businesses requiring extended operation of their IP phones. It is especially suitable for positions where many calls must be monitored and managed simultaneously, such as in call centers, reception areas, or for employees with multiple phone numbers. The ability to display up to 40 contacts per module (across two sides with 20 programmable keys each) enables quick and direct connection to frequently used contacts.

Functions and Features in Detail

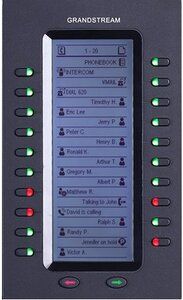

The module features a backlit graphic LCD with a resolution of 128×384 pixels, enabling display of contact data, status information, and other relevant details. The 20 programmable keys per module are equipped with dual-color LEDs that can light up green or red to visually indicate status (e.g., busy, free, call). Two arrow keys allow switching between two sides, increasing the number of accessible contacts per module to 40. The keys can be configured for various functions, including BLA (Bridged Line Appearance), SCA (Shared Call Appearance), BLF (Busy Lamp Field), Call Park/Pick-up, Speed Dial, Presence, Intercom, as well as conferencing, call forwarding, and call transfer.

Technology Explained Simply

The GXP2200EXT operates as an external control panel connected to the main phone via a serial connection. It draws power from the host phone and is updated via its firmware. Communication occurs through the integrated system of the base unit, eliminating the need for an additional network connection or power supply. The display is clearly readable even in low light conditions, thanks to the backlighting of the LCD screen.

Compatibility and Accessories

The module is compatible with Grandstream models GXP2140, GXP2170, and GXV3240. It can be combined with up to four GXP2200EXT modules per phone to maximize the number of available contacts or function keys. The connection is made via a Daisy-Chain structure, where each module connects to the previous one. Firmware updates are performed through the host phone, enabling centralized maintenance.

Installation and Mounting

Installation involves physically connecting the module to the base unit. No additional power supply is required, as the module is powered by the host phone. Configuration of keys and displays is done via the base unit’s software, with functions varying according to system settings.

Operational Advantages

By expanding the control panel with the GXP2200EXT, work speed is increased, as frequently used contacts are directly accessible via keys. The visual indication of status LEDs allows for quick identification of calls or busy lines. Combining it with up to three additional modules offers high scalability without requiring additional network connections or power sources. The use is particularly advantageous in environments with high call volumes, where fast response and clarity are essential.
