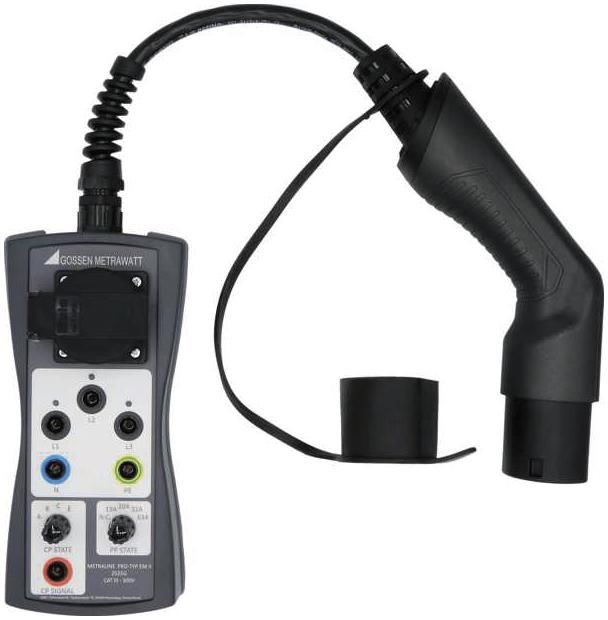

Gossen Z525G METRALINE PRO-TYPE EM II test adapter

Test adapter for e-charging points (1-/3-phase, type 2) for PROFITEST with Schuko socket. 1- and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at e-charging points with the Profitest Master, simulation of fictitiously connected electric vehicles and simulation of the current carrying capacity in accordance with IEC 61851-1. Extended CP test pin can also be used to test charging points with a permanently installed charging cable. Vehicle simulation (CP) Vehicle states A to E are set using a rotary switch Cable simulation (PP) The different codings for charging cables with 13, 20, 32 and 63 A as well as 'no cable connected' can be simulated using a rotary switch Error simulation Simulation of a short circuit between CP and PE using a rotary switch Display of the phase voltages via LEDs Depending on the e-charging station, one or three phases can be active Testing e-charging stations with a permanently connected charging cable using an extended CP test pin For vehicle simulation (CP): According to IEC 61851, states A, B, C and E can be simulated. The different vehicle states are set using the rotary switch. State A - no vehicle connected State B - vehicle connected but not ready to charge State C - vehicle connected and ready to charge, ventilation of the charging area not required State E - error: short circuit CP-PE via internal diode For cable simulation (PP): The various codings for charging cables with 13, 20, 32 and 63 A can be simulated. It is also possible to simulate the 'no cable' state. The simulation of the various charging cables is carried out by switching different resistances between PP and PE using the rotary switch. According to IEC 61851, the following values are possible: 13 A cable - 1.5 kO 20 A cable - 680 O 32 A cable - 220 O 63 A cable - 100 O . Also with Schuko socket. 1 METRALINE PRO-TYP EM II test adapter 1 operating manual
Type: METRALINE PRO-TYP EM II
