Gossen Z525F METRALINE PRO-TYPE EM I

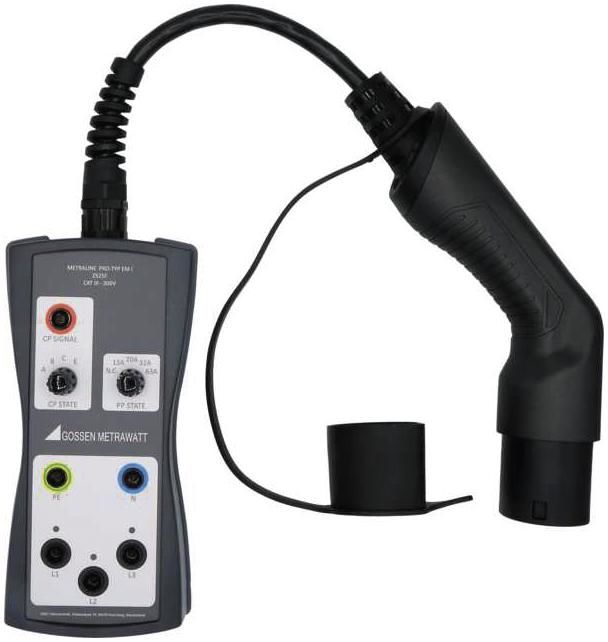

Test adapter for e-charging points (1-/3-phase, type 2) for PROFITEST. 1- and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at e-charging points with the Profitest Master. Simulation of fictitiously connected electric vehicles and simulation of the current carrying capacity in accordance with IEC 61851-1. Extended CP test pin also for testing charging points with a permanently installed charging cable. Vehicle simulation (CP) Vehicle states A to E are set using a rotary switch Cable simulation (PP) The various codings for charging cables with 13, 20, 32 and 63 A as well as 'no cable connected' can be simulated using a rotary switch Error simulation Simulation of a short circuit between CP and PE using a rotary switch Display of the phase voltages via LEDs; depending on the e-charging station, one or three phases can be active Testing of e-charging stations with a permanently connected charging cable using an extended CP test pin For vehicle simulation (CP): According to IEC 61851, states A, B, C and E can be simulated. The various vehicle states are set using the rotary switch. State A - no vehicle connected State B - vehicle connected but not ready to charge State C - vehicle connected and ready to charge, ventilation of the charging area not required State E - error: short circuit CP-PE via internal diode For cable simulation (PP): The various codings for charging cables with 13, 20, 32 and 63 A can be simulated. It is also possible to simulate the 'no cable' state. The simulation of the various charging cables is carried out by switching different resistances between PP and PE using the rotary switch. According to IEC 61851, the following values are possible: 13 A cable - 1.5 kO 20 A cable - 680 O 32 A cable - 220 O 63 A cable - 100 O . 1 x test adapter METRALINE PRO-TYP EM I 1 x operating instructions
Type: METRALINE PRO-TYP EM I
