Gossen M630V PE RLO-CHECK-PACKAGE Digital low resistance measuring device content_copy

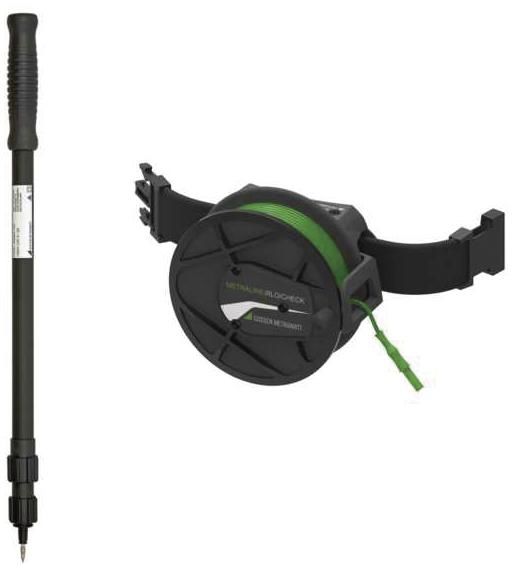

PE RLO-CHECK-PACKAGE for lighting systems. The PE RLO-CHECK PACKAGE consists of a portable digital low-resistance measuring device with an integrated cable reel and test probe extension. It is particularly suitable for checking the low-resistance continuity of the protective conductor on lighting systems. Battery-operated low-resistance measuring device Cable reel with 30m cable including test lead compensation Easy-to-read digital display Automatic polarity reversal Acoustic alarm Optical alarm One-button operation Manual calibration Extensive accessories. Safety for the user and the device in the measurement categories CAT IV up to 300V and CAT III up to 600V Very comfortable to wear thanks to the adjustable lap belt and ultra-light telescopic rod Simple evaluation of the measured value thanks to the color-backlit digital display (red = bad, blue = good). The PE RLO-CHECK-PACKAGE consists of a measuring device for checking the low-resistance continuity of protective and equipotential bonding conductors. By extending the test probe with the ultra-light telescopic rod, it is particularly suitable for checking objects that are difficult to access, such as lighting systems. . Measuring range: 0.00 O ... 20.0 O Acoustic signaling of continuity (R < 1O) Acoustic and visual external voltage detection External voltage display: 8 ... 400 V Automatic polarity reversal in accordance with DIN EN 61557-4/VDE 0413-4 Adjustment function for cable drum and accessories (maximum 4 O can be compensated). 1 measuring device 4 batteries (AA) 1 lap belt 1 cable drum with 30 m cable 1 test probe with protective cap 1 telescopic rod 120 cm (190g) 1 crocodile clip 1 spiral measuring cable 1 PE adapter for sockets 1 short-circuit shunt (0 O) 1 calibration shunt for continuity threshold (1 O) 1 operating manual 1 test certificate
Type: PE RLO-CHECK-PACKAGE
