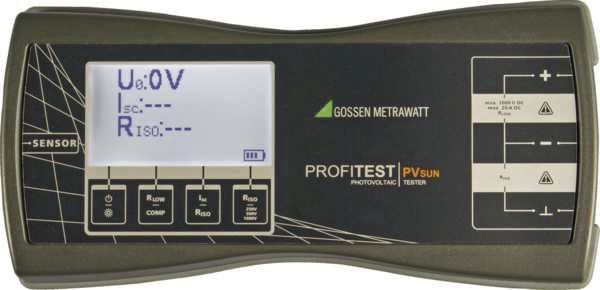

Gossen M360C Profitest PV Sun tester for testing v. modules and strings

Test device for PV modules and strings according to DIN EN 62446 (VDE 0126-23). With the PROFITEST PVsun, all required electrical safety tests on photovoltaic systems can be carried out easily, safely and in accordance with the standards according to DIN EN 62446. The test device is suitable for testing PV modules and strings up to max. 1,000 V / 20 A. In addition to insulation measurement, polarity testing and earth fault testing, the continuity of the protective conductor can also be tested. The tester is characterized by its ergonomic design and easy handling with a weight of only 500g.PROFITEST PV SUN MEMO - with bidirectional interface and memoryVoltage measurement: 0 ... 1000 V DCCurrent measurement (direct): 0 ... 20 A DCInsulation resistance measurement, measuring range: 0 ... 20 MO, test voltages: 250 V / 500 V / 1000 V DCEarth fault measurement: 0 ... 1000 V DCTest for continuity of the protective conductor: 0 ... 10 O / > 200 mAPolarity testBacklit LCD displayCompact and robust - for rough service applicationsExtensive accessoriesDAkkS calibration certificate (optional). 1 PROFITEST PVSUN or PROFITEST PVSUN MEMO test device1 4x batteries 1.5 V IEC LR6 (AA)3 safety measuring leads 1.5 m red, blue and yellow: banana plug - banana plug1 solar plug adapter red: MC3 coupling - banana coupling1 solar plug adapter red: MC4 coupling - banana coupling1 solar plug adapter blue: MC3 plug - banana coupling1 solar plug adapter blue: MC4 coupling - banana coupling1 safety test probe with plug-in socket red1 safety crocodile clip with plug-in socket yellow-gray1 carrying case with foam insert1 operating instructions1 PC software (PROFITEST PVSUN MEMO only) for downloading from our homepage www.gossenmetrawatt.com1 USB interface cable (PROFITEST PVSUN MEMO only)
Type: PROFiTEST PV Sun
