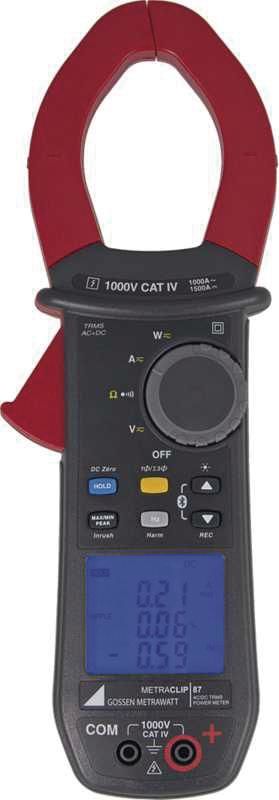

Clamp meter for current, voltage, power, harmonics and frequency, 1000 V CAT IV. The METRAclip 87 clamp meter is suitable for measuring medium power in the low-voltage range and thus offers optimum safety for every type of system and under all measuring conditions. In addition to applications such as maintenance, troubleshooting or servicing, the clamp is also used for measurements in rail traffic and in low-voltage distribution networks. Clamp opening: 48 mmCurrent: AC 99.99 / 999.9 A rms at 10 Hz - 2 kHz DC ±99.99 / ±999.9 / ±1500 A dc AC+DC 99.99 / 999.9 A rms99.99 / 999.9 / 1500 A peak Starting current: 10 ..1000 A rms / 1500 A peakVoltage: AC 99.99 / 999.9 V rms at 10 Hz - 3 kHz DC ±99.99 / ±999.9 V dc AC+DC 99.99 / 999.9 V rms99.99 / 999.9 / 1500 V peak Frequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..1999 Hz Power: Active power: 9999 W / 99.99 / 999.9 / 1500 kW Apparent power: 9999 VA / 99.99 / 999.9 / 1500 kVA Reactive power: 9999 var / 99.99 / 999.9 / 1500 kvar PF -1.00 ..+1.00 DPF 0.00 ..1.00 Distortion: Ripple 0.1 ..1000 % CF 1.00 ..10.00 THDr / THDf 0.0 ..100 % / 0.0 ..1000 % Harmonics H01 ..H25 METRAclip 87 Electrical safety in accordance with IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Power measurement (W, VA, var and PF) Measurement of the crest factor (CF) Displacement factor (DPF) Ripple (RIPPLE) Harmonic measurement (THD) Start-up and overcurrent measurements (True Inrush) Frequency measurement Automatic measuring range switching Display storage (DATA HOLD) Data logging (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Recording of measured values Wireless data transfer via Bluetooth LCD / Digits with blue backlight 10,000 Automatic switch-off Auto-power-off Software for evaluating measured values Test report incl. 1 multimeter clamp2 red and black measuring cables (length 1.6 m), each with touch-protected plug and attachable test probe, CAT IV 1000 V/15 A2 red and black crocodile clips, CAT IV 1000 V/15 A4 1.5 V batteries1 carrying case with wrist strap1 test report1 safety data sheet1 short instructions in printed form in D/GB/F/E/I1 operating instructions in D/GB/F/E/I on mini CD-ROM1 PC program for evaluating measured values on mini CD-ROM
Type: METRACLIP 87
Questions & answers
What is the delivery time of Gossen METRACLIP 87 multimeter clamp for current TRMS 1000V CAT IV M312L?
The article Gossen METRACLIP 87 multimeter clamp for current TRMS 1000V CAT IV M312L is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Gossen M312L to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gossen METRACLIP 87 multimeter clamp for current TRMS 1000V CAT IV M312L always at the best possible price. We can give you a discount of 2% on
Gossen METRACLIP 87 multimeter clamp for current TRMS 1000V CAT IV M312L if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Gossen METRACLIP 87 multimeter clamp for current TRMS 1000V CAT IV M312L we can offer you a price of 1.038,62 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
