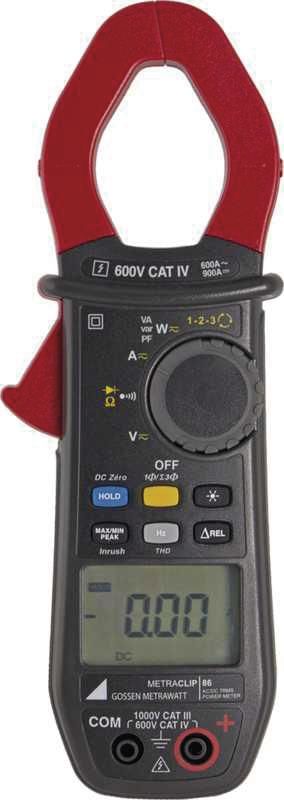

Clamp meter for current, voltage, power, harmonics and frequency, 600 V CAT IV. The METRAclip 86 clamp meter meets all the expectations of electrical trades and is suitable for applications in the low-voltage range with small and medium power outputs, e.g. maintenance of electrical installations and machine parks, troubleshooting, installation of heating and air conditioning systems and measuring starting currents of motors. Clamp opening: 34 mmCurrent: AC 60.00 / 600.0 A rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±900 A dc AC+DC 60.00 / 600.0 A rms60.00 / 600.0 / 900 A peak Starting current: 6 ..600 A rms / 900 A peakVoltage: AC 60.00 / 600.0 / 1000 V rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±1000 V dc AC+DC 60.00 / 600.0 / 1000 V rms60.00 / 600.0 / 1400 V peakFrequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..2999 Hz Power: Active power: 5999 W / 59.99 / 599.9 / 900 kW Apparent power: 5999 VA / 59.99 / 599.9 / 900 kVA Reactive power: 5999 var / 59.99 / 599.9 / 900 kvar PF -1.00 ..+1.00 THDr / THDf 0.0 ..100% / 0.0 ..1000% METRAclip 86 Electrical safety according to IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Power measurement (W, VA, var and PF) Harmonic measurement (THD) Start-up and Overcurrent measurements (True Inrush) Frequency measurement Automatic range switching Relative and differential measurements Display storage (DATA HOLD) Data acquisition (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Diode test Display of rotating field direction Phase sequence LCD / Digits with blue backlight 6,000 Automatic switch-off Auto-Power-Off Test report incl. 1 multimeter clamp2 Measuring cables red and black (length 1.6 m), each with touch-protected plug and attachable test probe, 1000 V/15 A CAT IV1 Black crocodile clip, CAT IV 1000 V/15 A1 9 V battery1 Carrying case with wrist strap1 Test report1 Safety data sheet1 Brief instructions in German/GB/French/English/Italian language1 Operating instructions in German/GB/French/English/Italian language on mini CD-ROM
Type: METRACLIP 86
Questions & answers
What is the delivery time of Gossen METRACLIP 86 multimeter clamp for current TRMS 600V CAT IV M312K?
The article Gossen METRACLIP 86 multimeter clamp for current TRMS 600V CAT IV M312K is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Gossen M312K to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gossen METRACLIP 86 multimeter clamp for current TRMS 600V CAT IV M312K always at the best possible price. We can give you a discount of 2% on
Gossen METRACLIP 86 multimeter clamp for current TRMS 600V CAT IV M312K if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Gossen METRACLIP 86 multimeter clamp for current TRMS 600V CAT IV M312K we can offer you a price of 704,41 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
