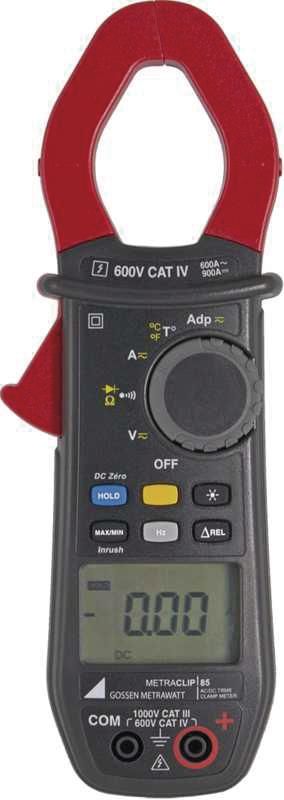

Gossen M312J METRACLIP 85 multimeter clamp for current TRMS 600V CAT IV content_copy

Clamp multimeter for current, voltage and frequency, 600 V CAT IV. The METRAclip 85 clamp multimeter is suitable for measurements in applications in the service and industrial sectors, for troubleshooting electrical installations and for repairing electric vehicles. Clamp opening: 34 mmCurrent: AC 60.00 / 600.0 A rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±900 A dc AC+DC 60.00 / 600.0 A rms60.00 / 600.0 / 900 A peak Starting current: 6 ..600 A rms / 900 A peakVoltage: AC 60.00 / 600.0 / 1000 V rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±1000 V dc AC+DC 60.00 / 600.0 / 1000 V rms60.00 / 600.0 / 1400 V peak Frequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..2999 Hz METRAclip 85 Electrical safety in accordance with IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Start-up and overcurrent measurements (True Inrush) Frequency measurement Automatic measuring range switching Relative and differential measurements Display storage (DATA HOLD) Data logging (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Diode test Temperature measurement - thermocouple type K Connection of sensors and measuring transmitters with voltage output LCD / digits with blue backlight. 6,000 Automatic switch-off Auto-Power-Off Test report incl. . 1 multimeter clamp2 red and black measuring cables (length 1.6 m), each with touch-protected plug, CAT IV 1000 V/15 A1 thermocouple sensor type K with banana plugs1 9 V battery1 carrying case with wrist strap1 test report1 safety data sheet1 short instructions in German/English/French/Italian language1 operating instructions in German/English/French/Italian language on mini CD-ROM
Type: MMETRACLIP 85
