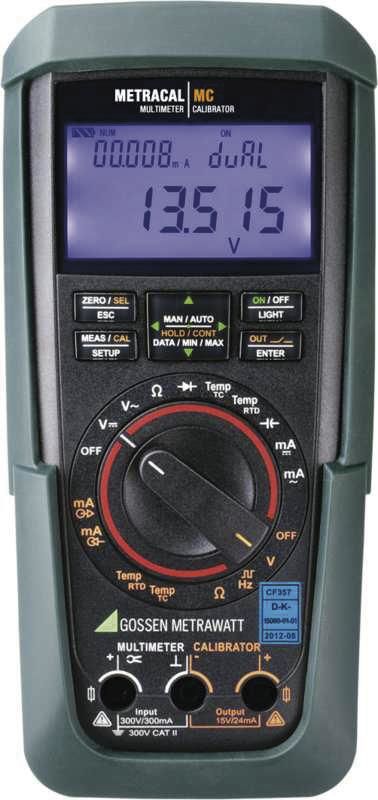

Universal calibrator with simulator and multimeter - '2 IN ONE'. 'The METRA
CAL MC is both a multimeter and a calibrator. It simulates sensor conditions at the input of a converter or transmitter or isolation amplifier, simultaneously measures the galvanically isolated signal output and saves the results on site.'. The extremely compact and inexpensive multifunctional process calibrator METRA
CAL MC impresses with its robustness, ease of use, maximum functionality, accuracy and PC system capability.The METRA
CAL MC streamlines measurement, calibration and revision work in chemical processes, laboratories and development, in the production area of electronic measuring transducers and when adjusting and calibrating metrological components. 2 IN ONE Universal calibrator/simulator and TRMS multimeterDual mode - simultaneous output and measurementTransfer of measurement and calibration results to a PC for recording and creating a calibration report with the METRAwin 90-2 software. The METRA
CAL MC streamlines measurement, calibration and revision work in chemical processes, laboratories and development, in the production area of electronic measuring transducers and in the adjustment and calibration of measuring components. The integrated multimeter and calibrator allow the measuring technician to simulate sensor conditions at the input of a transducer or transmitter or isolation amplifier and at the same time measure the signal output and save the results. The instrument has a data interface for later documentation of the saved results on the PC. The calibration and measurement functions can be scaled in electrical quantities or as a percentage of an adjustable measuring range. This elegantly displays percentage error information on the LCD without any additional tools. METRA
CAL MC is used in chemical process engineering, in pharmaceutical production, in gas transport and production, in refineries and by calibration service providers.In electrical engineering and electronics: long-term testing of recording devices with precise ramps, linearity testing with step generator.Application in systems/apparatus: plant engineers, furnace builders, manufacturers of ship electronics, control centers, control rooms, etc. for adjusting and calibrating instruments and assemblies. Universal calibrator, simulator and multimeter mA / mV...V / °C (Pt100 / 1000, Ni100 / 1000, thermocouple J, L, T, U, K, E, S, R, B, N) / 30...2000 ODual mode - simultaneous output and measurement (U / I)Measure and output in absolute and percentage terms (scaled)Memory for measurement results: 2 MB for 46,000 measured valuesFrequency and pulse generator: 1 Hz...2 kHzRamps and step functionsTransmitter simulator (sink 0...24 mA)DAkkS calibration certificate includedRobust and EMC-safe constructionPrecision multimeter (V, A, O, F, Hz,°C/°F) 30,000 (60.000) digits and triple displayTRMS measurement up to 20 kHzBidirectional IR data interfaceDevice driver for LabView® (National Instruments) free of chargeMeasurement software METRAwin®90-2 optionalMeasurement data acquisition and analysis software METRAwin®10 optional. DAkkS calibration certificate included36-month guarantee on material and manufacturing defects. Scope of delivery: 1 x METRA
CAL MC calibrator 2 x IEC LR6 batteries 1 x KS29 safety cable set consisting of 3 measuring cables with 90° angled safety plugs, test probes and 3 safety caps for CAT IV 600 V 1 A, 1000 V CAT II 16 A/ 1x quick guide 1 x GH-XTRA rubber protective cover with carrying strap 1 x DAkkS calibration certificate
Type:
METRAHIT MULTICAL
