Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH)

Your rating:
Average rating
product review for Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH)
( 4.6 / 5 ) 9 ratings
Goobay 93688
This image may differ from the desired article.
Goobay 93688Goobay 93688Goobay 93688Goobay 93688Goobay 93688Goobay 93688
2,65 EUR
( 3,15 EUR incl. VAT )
≈ £2.22  |  ≈ $2.91
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >1000 pieces
1x Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH)
Datasheet:file_download Download
Lieske Part No.:348715
Mfg Part No: 93688
UPC/EAN: 4040849936883
Weight:0.0445 kg
Graduated prices net
From piecesPrice per pieces
502,53 EUR
1002,41 EUR
2502,29 EUR
5002,17 EUR

Product information for Goobay 93688:

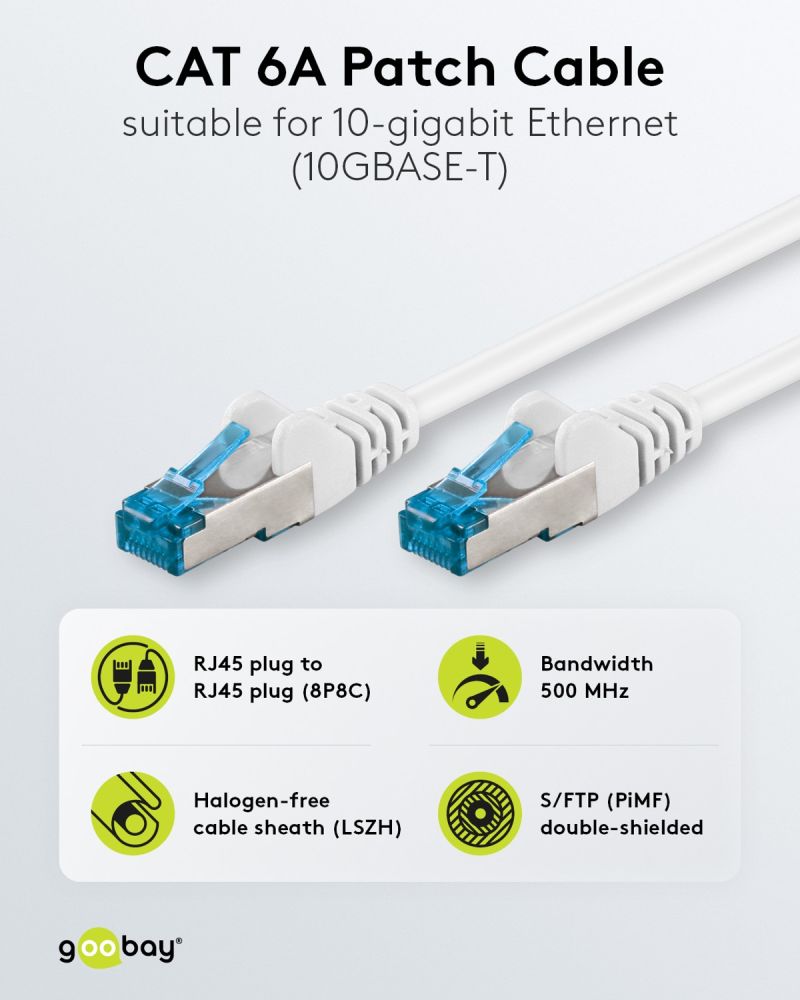

The Goobay Patch cable Cat6A is a double shielded network cable for connecting IT end devices such as PCs, laptops, routers, switches, Smart-TVs, game consoles and NAS systems. It serves as a reliable connection solution in home networks, home office environments as well as in professional network infrastructures. The cable is designed for use in local area networks (LAN) and supports data transfer rates up to 10 Gbit/s, in accordance with the standards 10BASE-T, 100BASE-TX, 1000BASE-T and 10/100/1000/10000 Mbit/s. The Cat6A category enables a maximum bandwidth of 500 MHz, ensuring stable and interference-free signal transmission.

Applications

The cable is suitable for indoor use and can be employed in private and commercial networks. It is particularly advantageous in environments with high electromagnetic interference levels, as the double shielding provides high immunity against EMI (electromagnetic interference). Use in home office and office applications is especially beneficial due to the high signal quality and support for PoE (Power over Ethernet) and PoE+.

Functions and equipment in detail

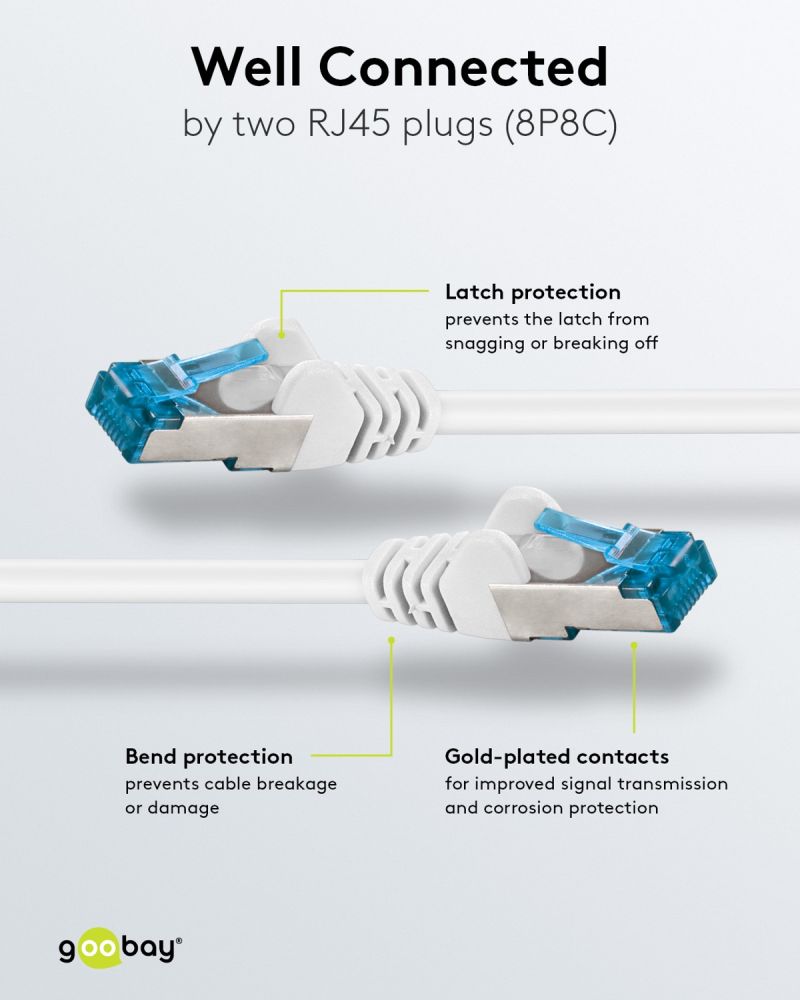

The cable features two RJ45 connectors (8P8C) at both ends, with a gold-plated contact surface of 3 μm. This gold plating prevents corrosion and ensures a reliable electrical connection. The inner conductors are made of pure copper (CU) and are configured as stranded conductors (AWG 27/7), ensuring high conductivity and mechanical stability. The termination follows EIA/TIA-568B, enabling a standardized and compatible connection with network devices.

Technology explained simply

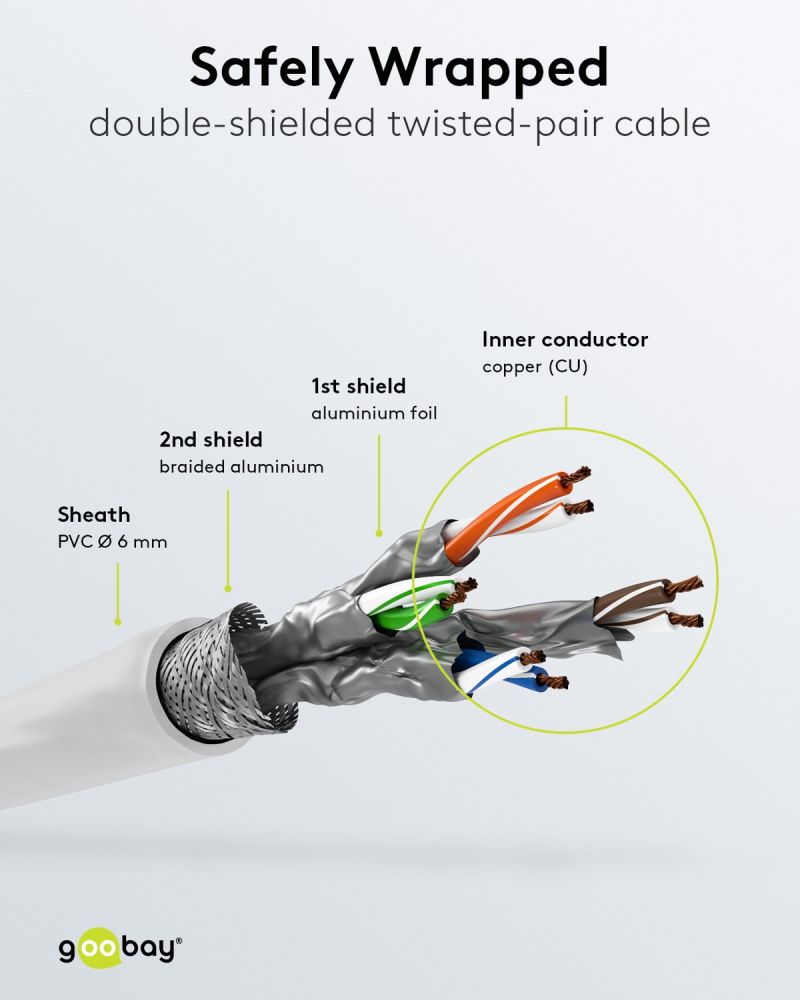

Shielding is provided in two layers: individual wire pairs are wrapped in an aluminium foil shielding (PiMF – Pair in Metal Foil), while the entire cable jacket is additionally protected by an aluminium braid (overall shield). This S/FTP shielding (Shielded/Foiled Twisted Pair) reduces electromagnetic interference and crosstalk between wire pairs. The cable jacket is made of halogen-free material (LSZH), which emits low smoke and no toxic gases in case of fire. The cable length is 1 m, with the length indicated directly on the connector.

Compatibility and accessories

The cable is designed for use with devices supporting the 10/100/1000/10000 Mbit/s standards. It is suitable for Power over Ethernet (PoE and PoE+), enabling power supply via the network cable. Connection is made via RJ45 connectors, which are typically found on network devices, switches, routers and end devices. The cable connection is compatible with all devices featuring RJ45 ports.

Installation and mounting

The cable is equipped with strain relief boots at both ends, protecting the cable from bending and torsional stress. The robust cable jacket and the latch protection feature on the RJ45 connectors prevent the latch from catching or breaking, ensuring a secure and durable connection. The minimum bending radius is 59 mm, which should be considered during installation to avoid mechanical damage. The operating temperature range is between -20 °C and +65 °C.

Operational advantages

The double shielding and high-quality materials ensure high signal integrity and minimize interference. The gold-plated contacts and copper conductors guarantee long service life and reliable connections. Support for PoE+ enables power supply of end devices such as IP cameras or access points directly via the network cable, eliminating the need for additional power cables. The length marking on the connector facilitates identification and organization within the network.

The cable is CAT-6A tested and complies with the test standard ISO/IEC 11801 Cat 6A Class Ea Channel Link. The use of LSZH materials makes it suitable for indoor applications, especially in areas with increased safety requirements.

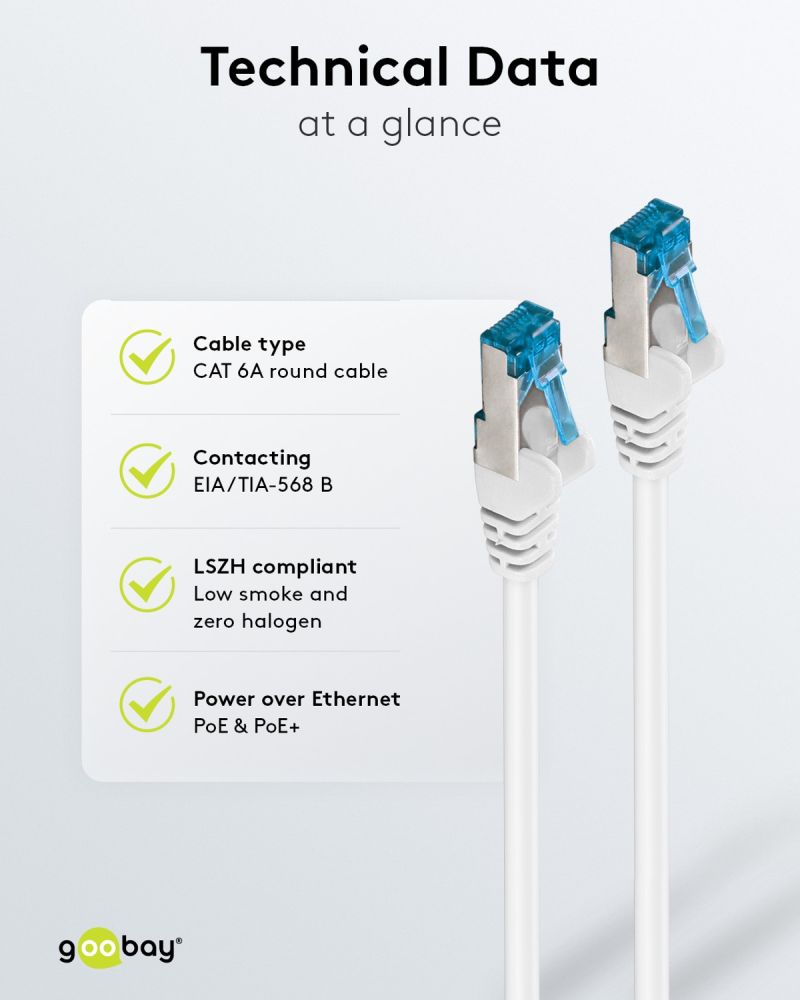

Technical data
Connection, contact materialGold-plated 3μm
Connection, typeRJ45 connector (8P8C)
Connection 2, typeRJ45 connector (8P8C)
Pin retention protectionAmbidextrous
Bend protectionAmbidextrous
Cable typeTubular cable
Conductor, materialCU (Copper)
Type 1, shieldingFilm (Alu) PiMF
Type 2, shieldingBraided (Alu) overall shield
Cable jacket, materialLSZH
ColourWhite
Special featureLength indication on connector
Consumption unit1 piece in plastic bag
Connection, shieldingYes
LSZH-compliantYes


Product data sheet
Datasheet for Goobay 93688, EAN: 4040849936883

Questions & answers

What is the delivery time of Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH)?

The article Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH) is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Goobay 93688 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH) always at the best possible price. We can give you a discount of 2% on Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH) if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Goobay 93688 CAT 6 A patch cable, S/FTP (PiMF), white, copper conductor (CU), halogen-free cable sheath (LSZH) we can offer you a price of 2,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
