Goobay 79579 Tool-free cable connector ''slim'' CAT 6A, STP shielded - for connecting two network installation cables content_copy

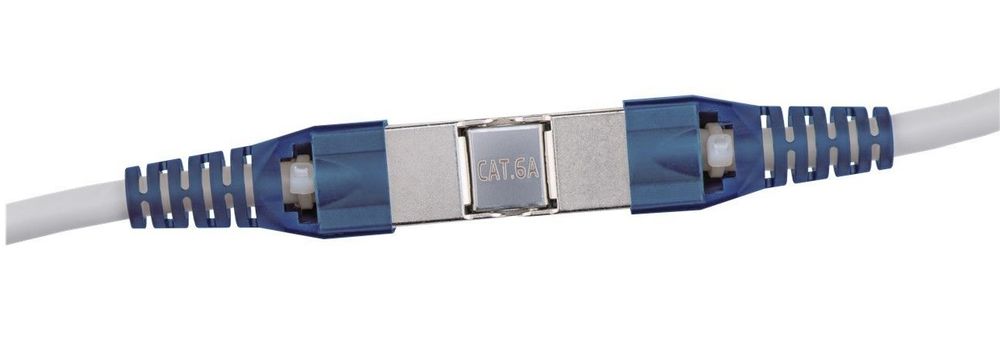

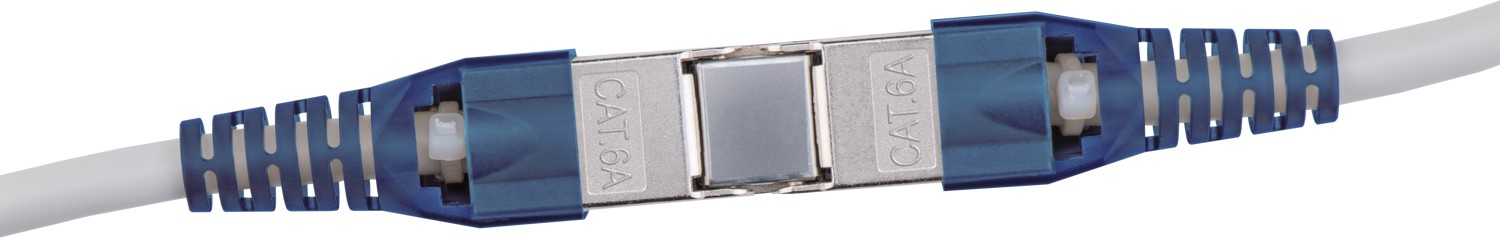

The Goobay tool-free cable connector slim CAT 6A, STP is a shielded, tool-free connector for connecting, extending, repairing, or rerouting two CAT-6A installation cables. It is particularly suitable for applications where space is limited, such as in cable shafts or narrow conduits, thanks to its very slim design. The module enables the connection of non-preterminated patch cables without soldering, screwing, or stripping, making installation quick and possible without special tools.

Applications
This cable connector is designed for use in network infrastructures where stable, high-quality data transmission is required. It is typically used in LAN network installations to repair or extend damaged or too-short cable sections without having to re-lay an entire cable. Its use in cable shafts, behind panels, or in other tight installation environments is especially advantageous due to its compact dimensions.

Features and Specifications in Detail

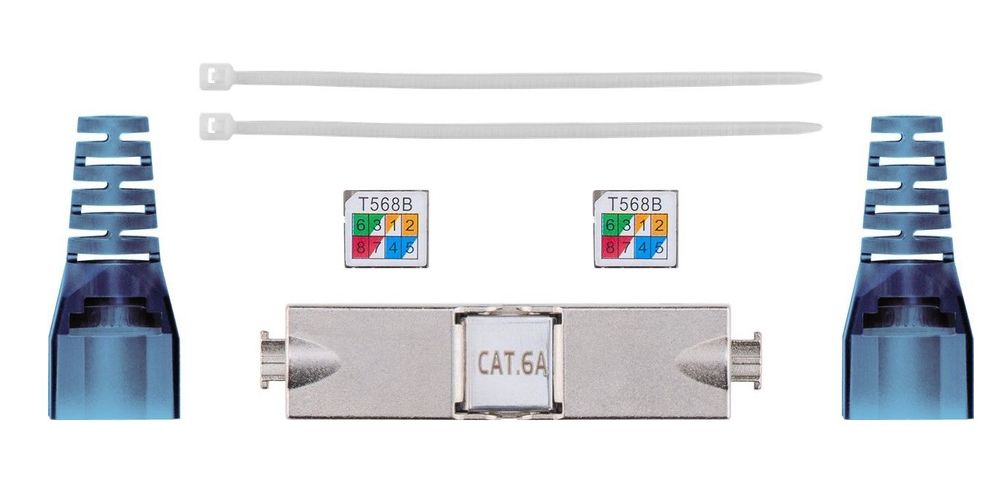

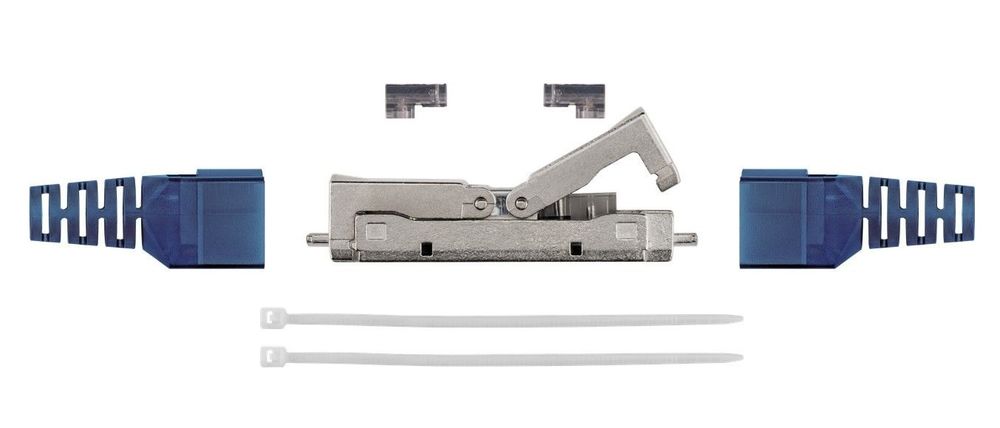

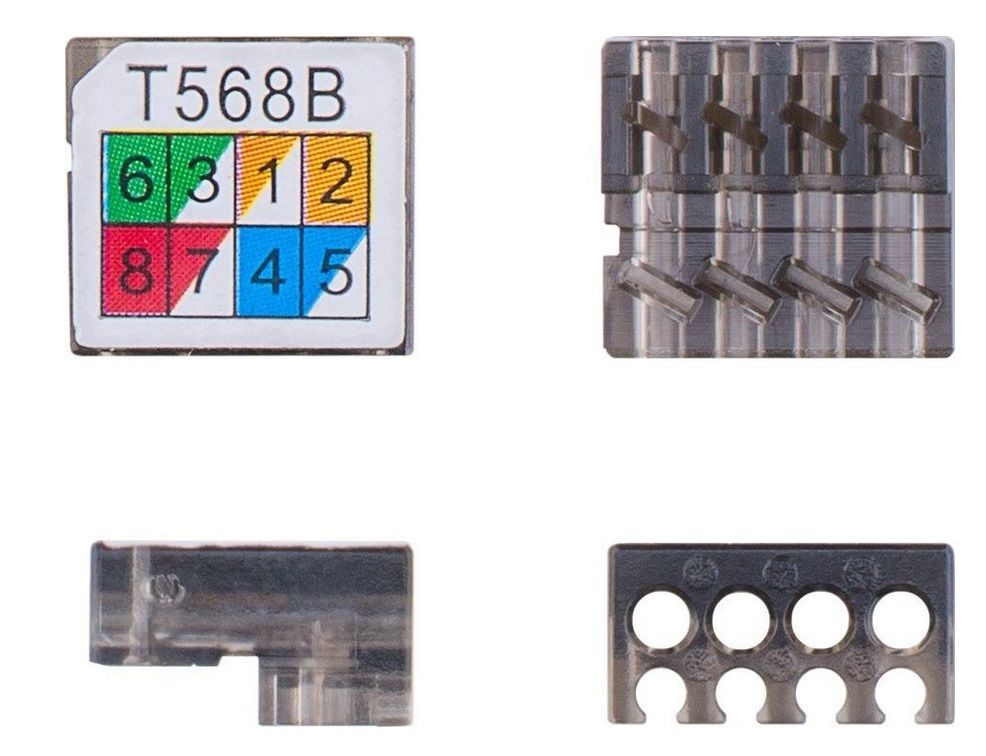

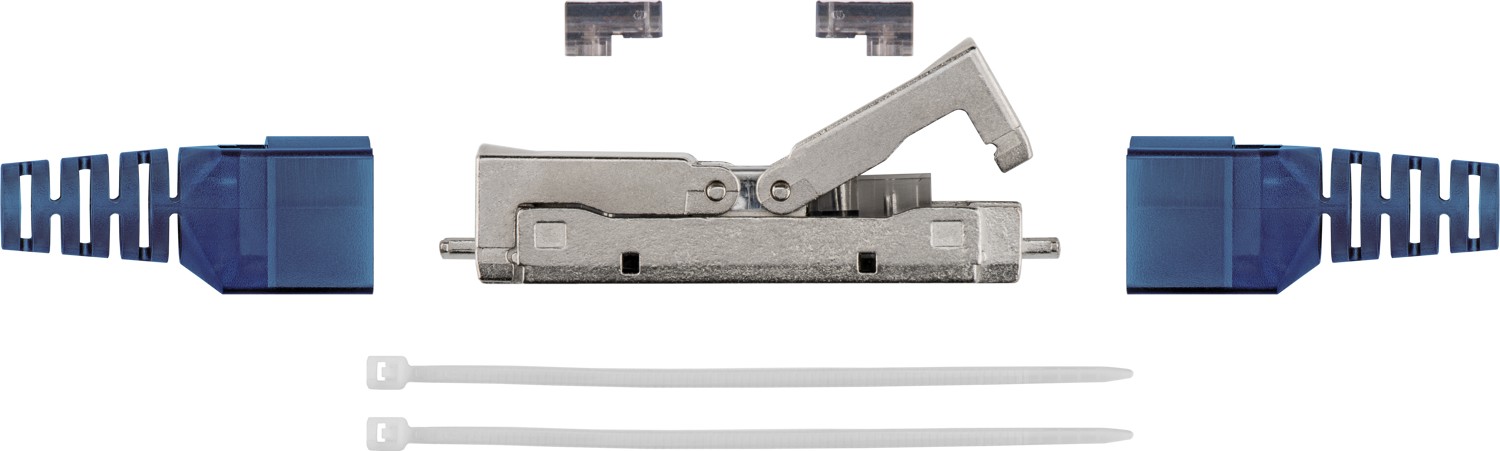

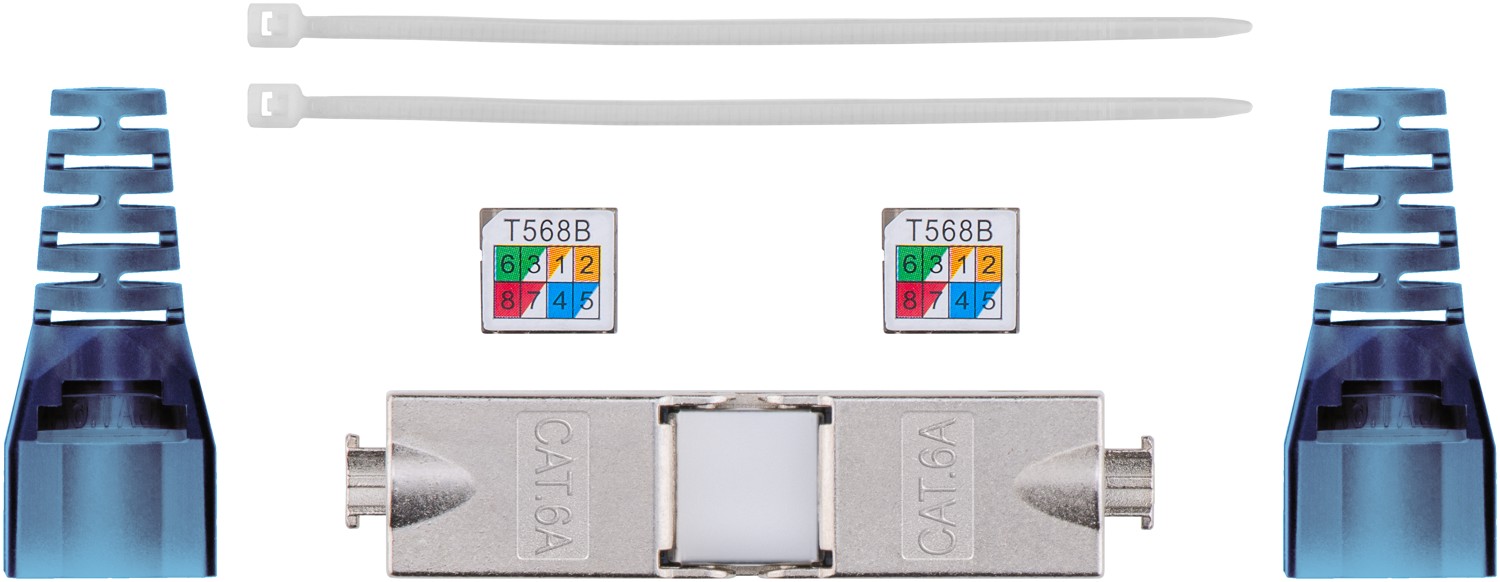

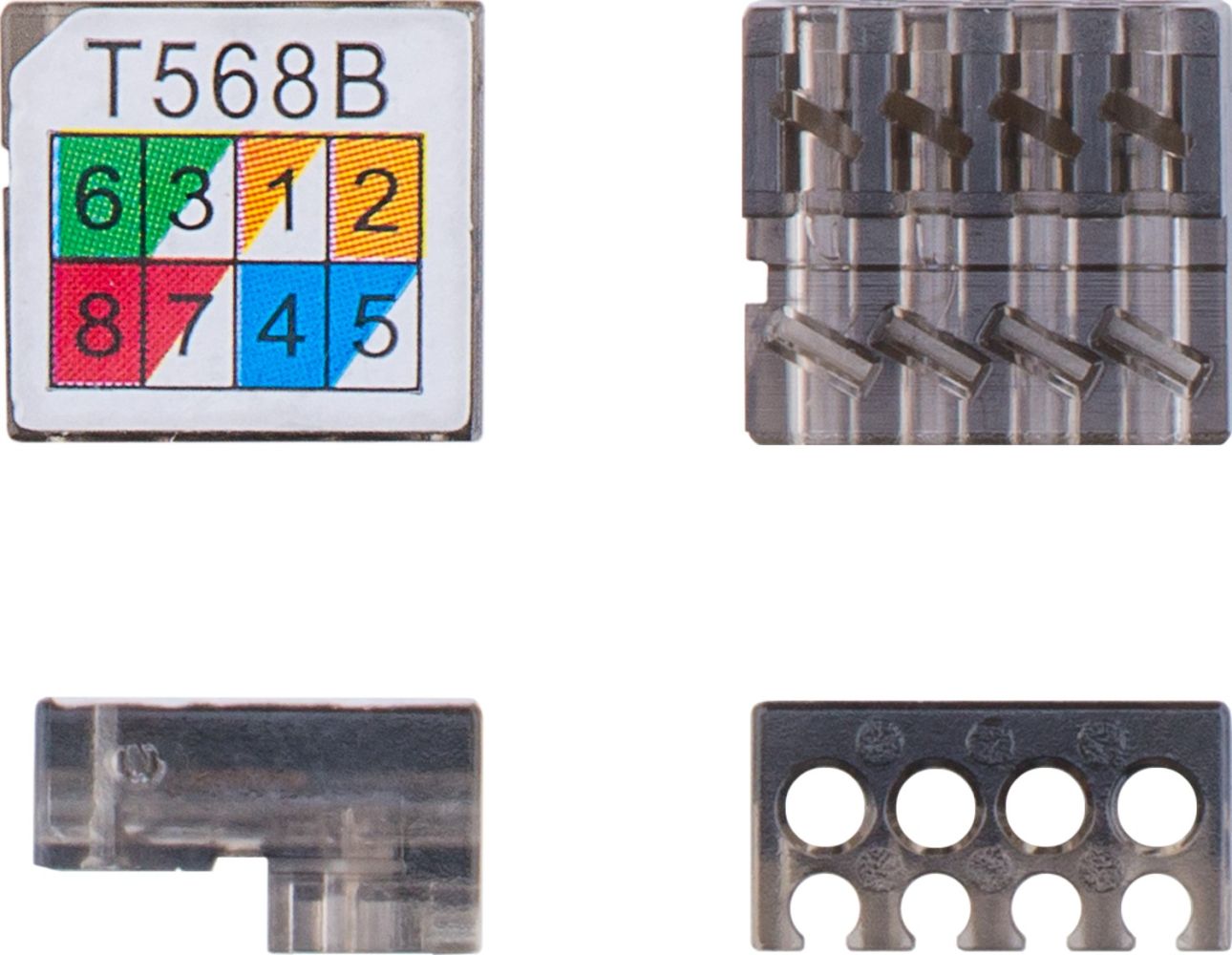

The connector features two clamp strips for tool-free LSA mounting (solder-, screw-, and stripping-free connection technology), enabling easy and secure connection of individual conductors. The cable connection is made directly through the clamp strips, without the need to strip or solder the conductors. The housing is made of zinc die-cast, ensuring high mechanical stability and durability. An integrated shield connection provides effective shielding against electromagnetic interference, preserving data integrity.

Technology Explained Simply
The maximum bandwidth of 500 MHz corresponds to the CAT 6A category specification, enabling high-performance data transmission at high speeds. The STP abbreviation stands for Shielded Twisted Pair, meaning a shielded, twisted cable that reduces interference from electromagnetic fields. The integrated strain relief protects the connection from mechanical stress that could result from pulling on the cable. The module is designed for non-preterminated patch cables, with compatible conductor diameters ranging from 0.5 to 0.64 mm for solid conductors and 0.61 to 0.76 mm for stranded conductors. The cable jacket diameter must be between 5.0 and 9.7 mm.

Compatibility and Accessories
The cable connector is designed for connecting two CAT-6A installation cables. It is not intended for other cable categories such as CAT 5e or CAT 6. Using cables outside the specified conductor or jacket diameters is not recommended. No specific accessories are mentioned in the sources that can be directly combined with this connector.

Installation and Mounting

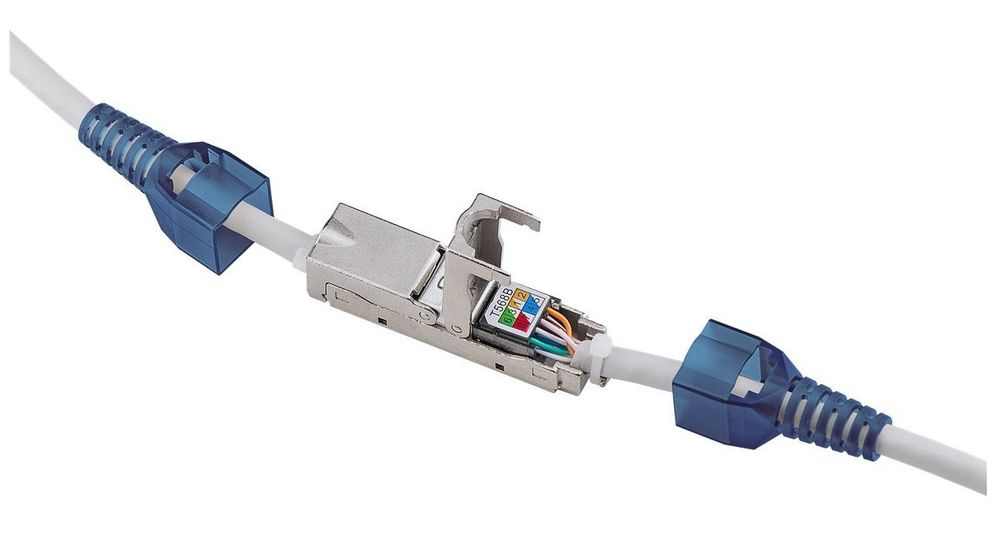

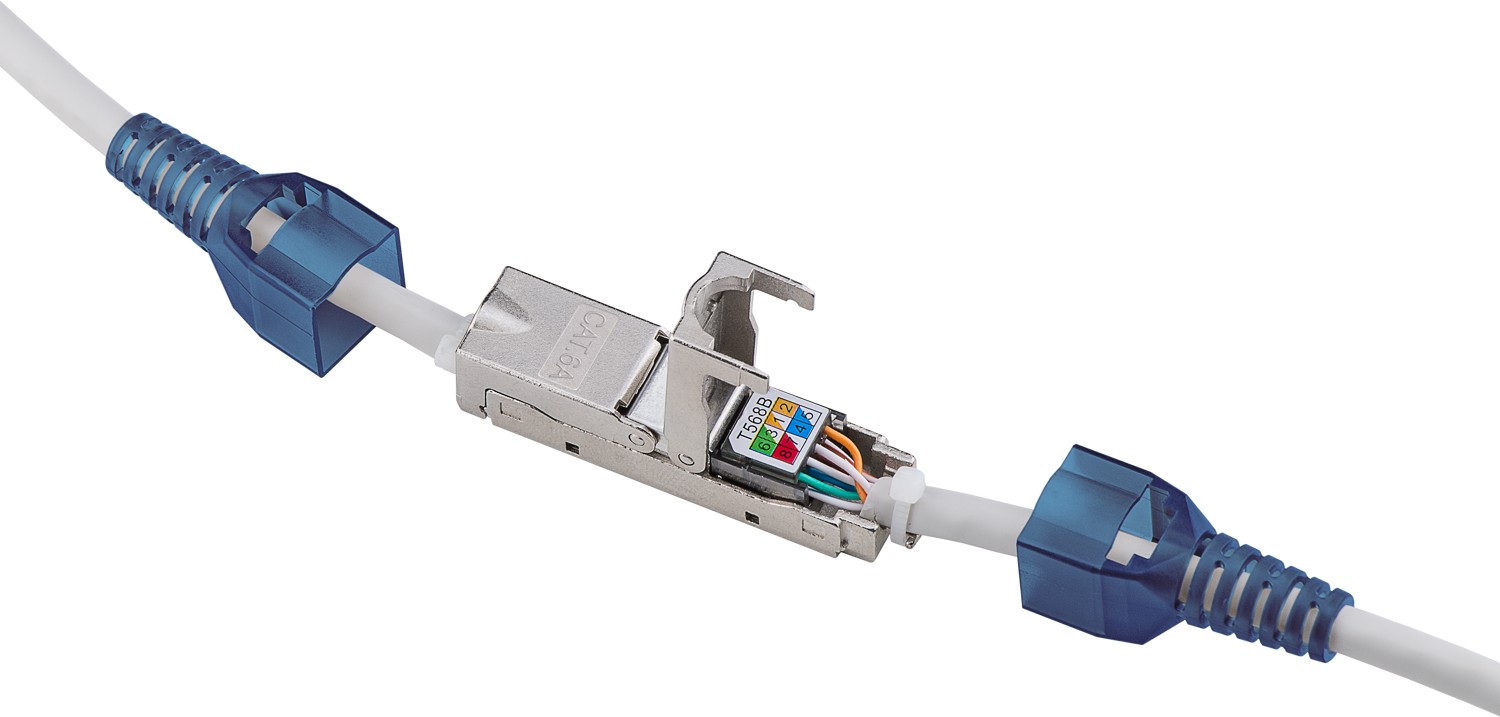

Mounting is tool-free and involves inserting the cable conductors into the clamp strips. The conductors do not need to be stripped, as the LSA technology allows for direct connection. The integrated strain relief ensures that mechanical stress is distributed across the connection. Installation is quick and requires no special training or tools.

Operational Advantages
The slim design of the module allows for flexible installation in tight spaces. Tool-free mounting reduces installation time and labor effort. The STP shielding ensures high resistance to interference, which is especially important in environments with high electromagnetic noise levels. Field terminability means the connector can be installed on-site without requiring pre-terminated cables.
