Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg

Your rating:
Average rating
product review for Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg
( 0 / 5 ) 0 ratings
Goobay 49731
This image may differ from the desired article.
Goobay 49731Goobay 49731Goobay 49731Goobay 49731Goobay 49731Goobay 49731
-16% 7,49 EUR 8,91 EUR
( 8,91 EUR incl. VAT )
≈ £6.27  |  ≈ $8.23
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline
In Stock: >1000 pieces
1x Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg
Datasheet:file_download Download
Lieske Part No.:110598
Mfg Part No: 49731
UPC/EAN: 4040849497315
Weight:1.12 kg
Type:Basic TV-Wandhalterung Basic TILT (M), Schwarz - H
Graduated prices net
From piecesPrice per pieces
257,10 EUR
506,70 EUR
1006,31 EUR
2505,92 EUR

Product information for Goobay 49731:

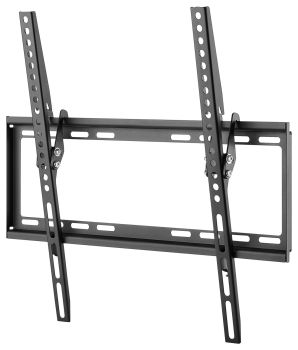

The Goobay Basic TV-Wall Mount Basic TILT (M), Black - H is a black-painted, flat wall mount for large screens in the size range of 81 to 140 cm (32 to 55 inches). It is designed for fixed mounting to the wall, holding the screen in a fixed position, yet allowing it to be tilted down by up to 8°. The mount is suitable for most flat and curved screens from common brands such as Samsung (QLED and LED), Sony, Philips, and LG. The construction made of powder-coated steel ensures stable fixation with a maximum load capacity of 35 kg.

Applications
This wall mount is suitable for use in living rooms, offices, or other indoor spaces where a TV is to be mounted in a fixed position on the wall. The minimal wall distance of 20.5 mm ensures the screen is placed close to the wall, making the room appear larger visually and emphasizing the elegance of modern, ultra-slim TVs. The tilt function of up to 8° allows for optimal viewing angle adjustment, especially when the TV is mounted slightly above the usual seating position.

Functions and Equipment in Detail
The mount features an open frame structure that ensures optimal ventilation for the TV and facilitates access to the rear of the device for cable changes or maintenance. Installation is carried out in two steps: first, the mounting rails are attached to the TV, then the rail is inserted into the wall mount. The mount is horizontally adjustable on the wall rail, allowing for precise alignment even after installation. The maximum VESA compatibility is 400x400 mm, with smaller VESA dimensions such as 200x200 mm, 300x300 mm, and 400x200 mm also supported.

Technology Explained Simply
The wall mount is designed as a tilt mount, meaning the screen is mounted in a fixed position but can be tilted by a specific angle. The tilt of up to 8° allows adjustment to different seating heights and viewing angles. The minimal depth of 20.5 mm ensures a flat installation that does not impair the visual appearance of the TV. The material combination of steel and powder coating offers high mechanical stability and corrosion protection. Installation is carried out using included wall plugs and screws, suitable for fixing to common wall materials.

Compatibility and Accessories
The mount is compatible with the VESA standard (FDMI) in dimensions 200x200 mm, 300x300 mm, 400x200 mm, and 400x400 mm. This covers most common TV models in the size range of 32 to 55 inches. The open structure allows the use of cable management systems or additional connection cables that can be routed behind the TV. No additional accessories or adapters are required to use the mount with the specified VESA sizes.

Installation and Mounting
Installation is carried out in two steps: first, the mounting rails are attached to the TV, aligning the VESA holes of the device with the mount. Then, the rail is inserted into the wall mount. The wall mount itself is fixed to the wall using the included wall plugs and screws. The horizontal adjustability of the mount on the wall rail allows for precise alignment after installation. The instruction manual is available in multiple languages, including German, English, French, Italian, Spanish, Dutch, Danish, Swedish, Czech, and Polish.

Operational Advantages
The flat design with a wall distance of only 20.5 mm ensures an aesthetically pleasing installation that does not visually clutter the room. The open frame structure promotes air circulation and prevents overheating of the TV. The tilt function of 8° allows individual adjustment of the viewing angle, making viewing more comfortable. The simple two-step installation and horizontal adjustability after installation increase flexibility during installation and adjustment.

Note: Batteries are not included in the delivery scope.

Technical data
Mounting typeTV Tilt
Mounting materialScrews, anchors
ColourBlack
MaterialSteel (powder-coated)
Consumption unit1 piece per carton
Packaging typeRetail box
Packaging languagesen, de, fr, it, es, nl, da, sv, cs, pl
Colour versionBlack
DisclaimerThe term VESA is a registered trademark.
Operating instructions languagesde, en, fr, it, es, nl, da, sv, cs, pl
Screen sizeM (81-140 cm / 32-55")
Maximum load capacity35 kg
min. wall distance20.5 mm
max. hole spacing (VESA)400x400 mm
VESA (FDMI)300 x 300 mm, 400 x 200 mm, 200 x 200 mm, 400 x 400 mm


Product data sheet
Datasheet for Goobay 49731, EAN: 4040849497315

Questions & answers

What is the delivery time of Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg?

The article Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg is currently in stock

According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Goobay 49731 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg always at the best possible price. We can give you a discount of 2% on Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Goobay 49731 Basic TV wall mount TILT (M) 32 to 55 inch (58-140 cm) max. 35 kg we can offer you a price of 7,10 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
