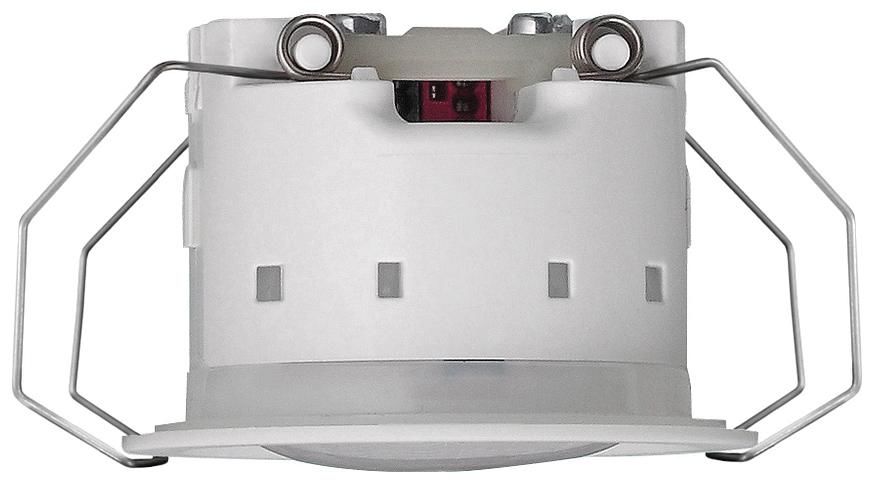

Presence detector Mini Standard for KNX presence detectors for presence monitoring (operating mode: presence detector), for motion detection (operating mode: ceiling monitor) or for monitoring by means of message telegrams (operating mode: detector) indoors or outdoors. The discreet design, the particularly flat construction and the flexible installation concept make the Mini presence detectors ideal for objects with high architectural demands. Features: Extremely flat installation. Clamp mounting on suspended ceilings. Ceiling mounting on solid ceilings in device box according to DIN 49073 using optional accessories. Surface mounting in surface-mounted device box (optional accessories). Protection class
IP44 enables installation outdoors or in damp rooms. Design ring that can be painted over enables the color to be matched to the wall or ceiling. After removing the design ring, all operating elements (e.g. programming button) of the device can be easily reached from the front. This means that no removal is necessary for subsequent adjustment or programming via the ETS. Ceiling-mounted device with integrated KNX bus connection. PIR sensors: three sensors, integrated brightness sensor. Sensitivity of motion detection can be manually adjusted using the adjuster. Sensitivity can be configured using ETS. Sensitivity adjuster on the device can be deactivated using software. Display of motion detection (permanently or only in the walk test). One function block can be configured. Adjustable operating mode: ceiling monitor, presence detector, detector. Individual device, main unit, extension unit can be adjusted. Operating mode for individual device or main unit: automatic, semi-automatic (manual ON automatic OFF or automatic ON manual OFF). Two outputs (for function: ceiling monitor, presence detector). Output (for function: ceiling monitor, presence detector): switching, staircase function, switching with forced position, dimming value transmitter, light scene extension unit, temperature value transmitter, brightness value transmitter, temperature operating mode. Twilight level can be adjusted using an external communication object or by teach-in. Additional transmission delay using an external communication object. Adaptive follow-up time (self-learning additional transmission delay). Short-term presence function. Feedback of the twilight level. Lock function. Manual operation via touch sensor (separate communication object). Switch-off brightness (with presence detector) via teach-in. Measurement of the time period after the last movement. Notes: The Mini presence detector is not suitable for alarm messages in VdS-compliant alarm systems.
Type:
222000
Questions & answers
What is the delivery time of Gira 222000 Mini presence detector standard, KNX?
The article Gira 222000 Mini presence detector standard, KNX is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Gira 222000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gira 222000 Mini presence detector standard, KNX always at the best possible price. We can give you a discount of 2% on
Gira 222000 Mini presence detector standard, KNX if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Gira 222000 Mini presence detector standard, KNX we can offer you a price of 152,06 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Gira 222000 Mini presence detector standard, KNX via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
