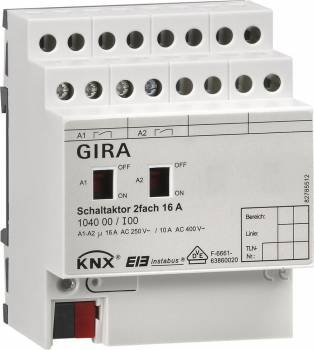

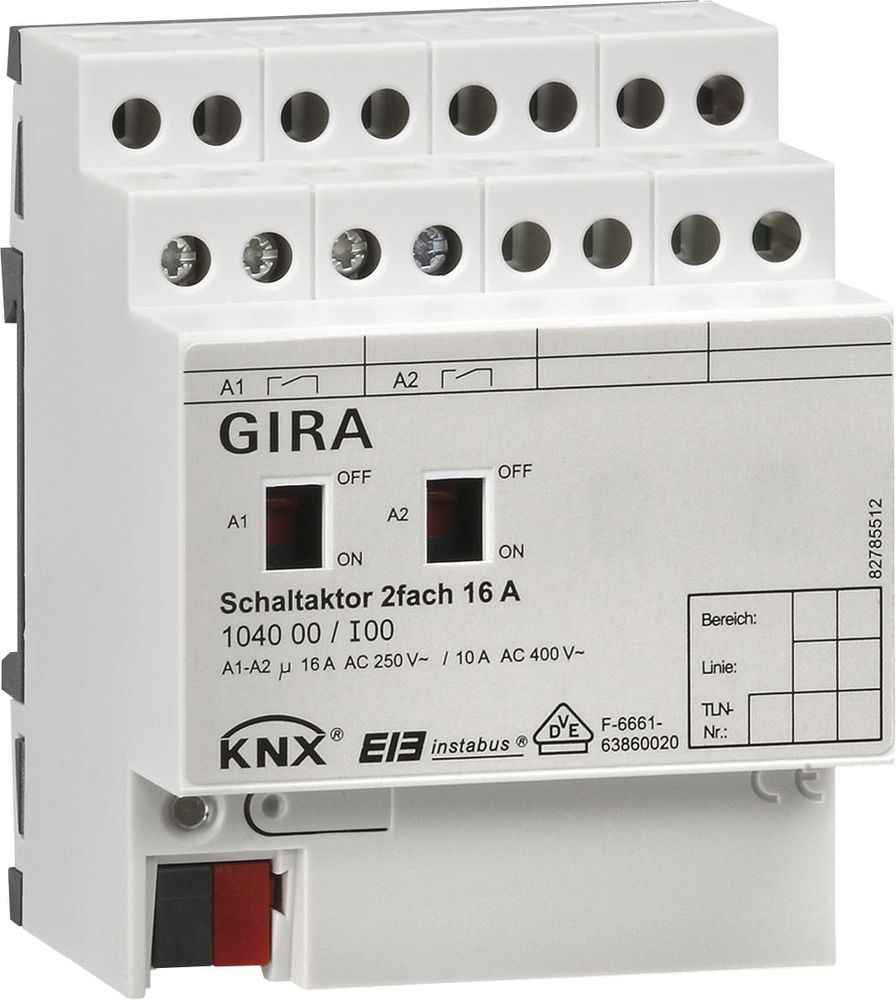

Gira 104000 2-fold switch actuator 16 A KNX / EIB REG

KNX / EIB switching actuator 16 A 2-fold with Handbetaetigung KNX / EIB system DRA plus product family: Output Product type: Binary output 2-input 2-output switching actuator with integrated bus coupler REG. vonzwei For switching Independently controllable groups of loads. Mounting on DIN rail. With manual switch for switching the relay (on / off) without parallel or KNX / EIB operation. No additional power supply. For project design and commissioning of the unit ETS3.0d is recommended. multi-phase connection. features : - Situated opposite der2 switching outputs. - Handbetaetigung the relay Independently from the bus / switch position indication. - NO or NC. - Central switching function. - Sammelrueckmeldung to reduce bus load. - active or passive (object readout) cyclical Rueckmeldefunktion. - Return codes can procrastinate after bus voltage. - Logical Verknuepfungsfunktion for each channel. - Lock function for each channel Configured. Alternatively forced setting function for each output. - Time functions (A, off delay, staircase light function - ie with advance warning). - Inclusion in light scenes possibleness, max. 8 internal scenes can be parameterised per channel. - Memory function for light scenes. - Operating hours counter with a limit function (overlimit bus changeable) for each output. - Eingangsueberwachung to cyclical updates with safety . - Reactions after bus voltage failure and recovery and after ETS programming of operation for each channel. Switching contact: relay with 2 x potential-free normally-SWITCHING AC 230 V: 16 A / AC or 10 A third SWITCHING AC 400 V AC: 10 A / 1 or 6 A AC / DC SWITCHING AC-3: 16 A / 24 V Max current: 400 A, 200 A 150 s, 600 s Power consumption: 3600 W resistive load consumption: 16 A, max. 140 F capacitive load 230 V AC Power consumption: 2500 W incandescence connection power: 2500 W HV halogen Power consumption: 1200 VA LV halogen, wound transformer power input: halogen 1500 W LV, Gira Tronic transformer connection power: 2500 VA fluorescent lamps, uncompensated power rating: 2300 VA fluorescent lamps, dual circuit connection power: 1300 VA fluorescent lamps with parallel compensation Power consumption: 2000 W mercury vapor lamps uncompensated connection power: 2000 W mercury vapor lamps in parallel compensated connections: KNX / EIB about connection and branch terminal 0595 00 connections: load over screw connections: 0.2 to 4 mm solid connections: 2 x 0.2 to 2.5 mm Solid connections: 0.75 to 4 mm stranded without ferrule connections: 0.5 to 2.5 mm Flexible with ferrule Dimensions: According to REG device with 4 modules VDE approval: EN 60669-1, EN 60669-2-1, EN 50428 type: 104000


Quantity: 1 unit.
Type: SCHALTAKTOR 2F 16A H
