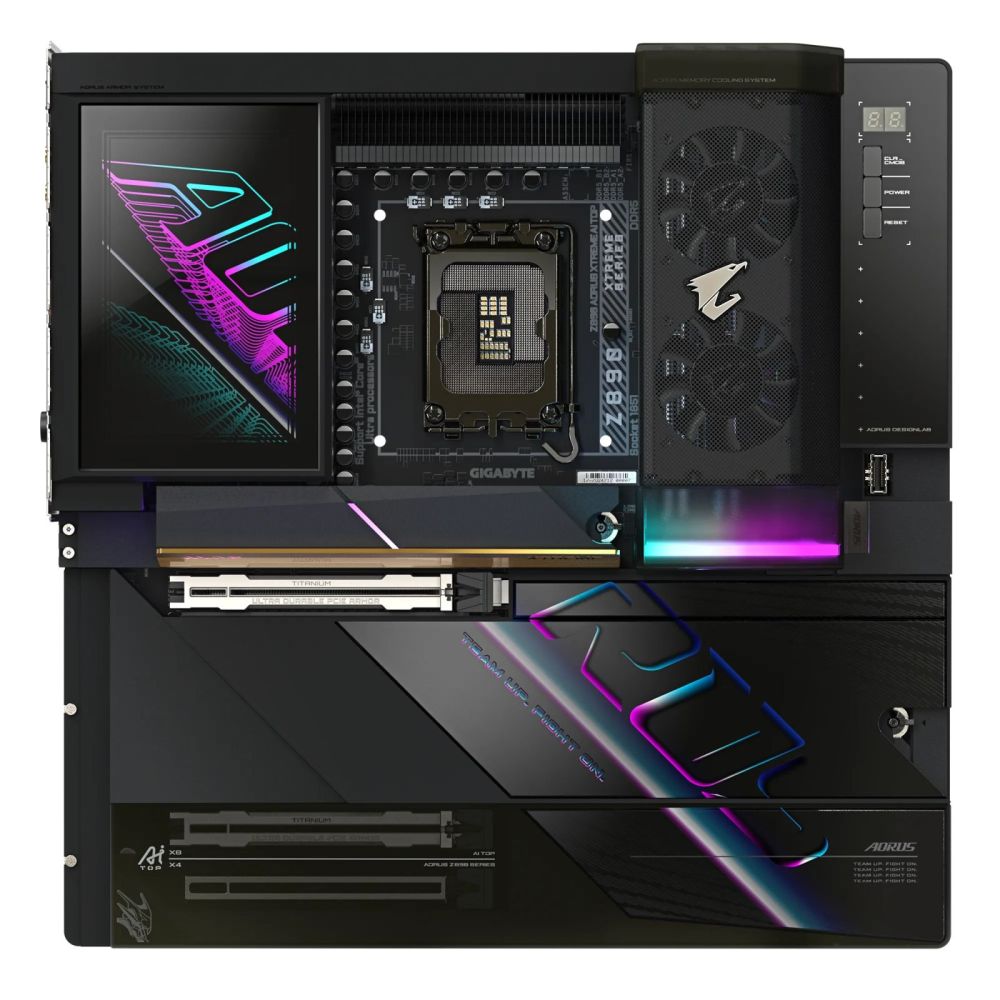

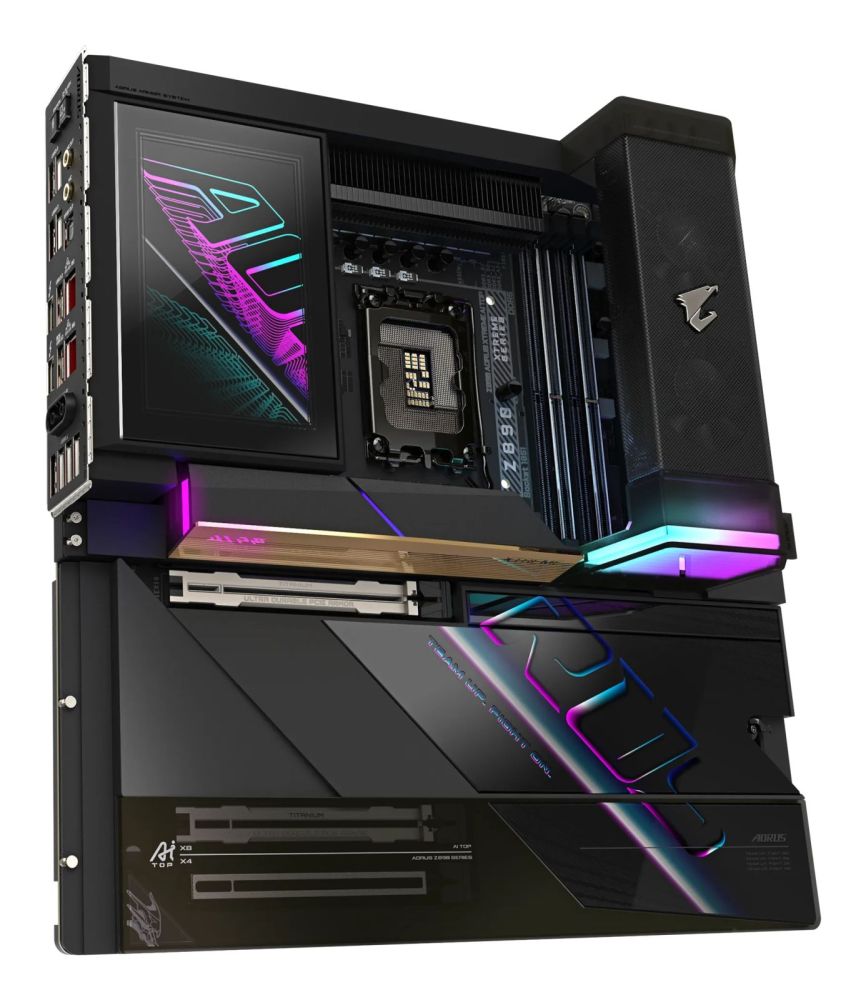

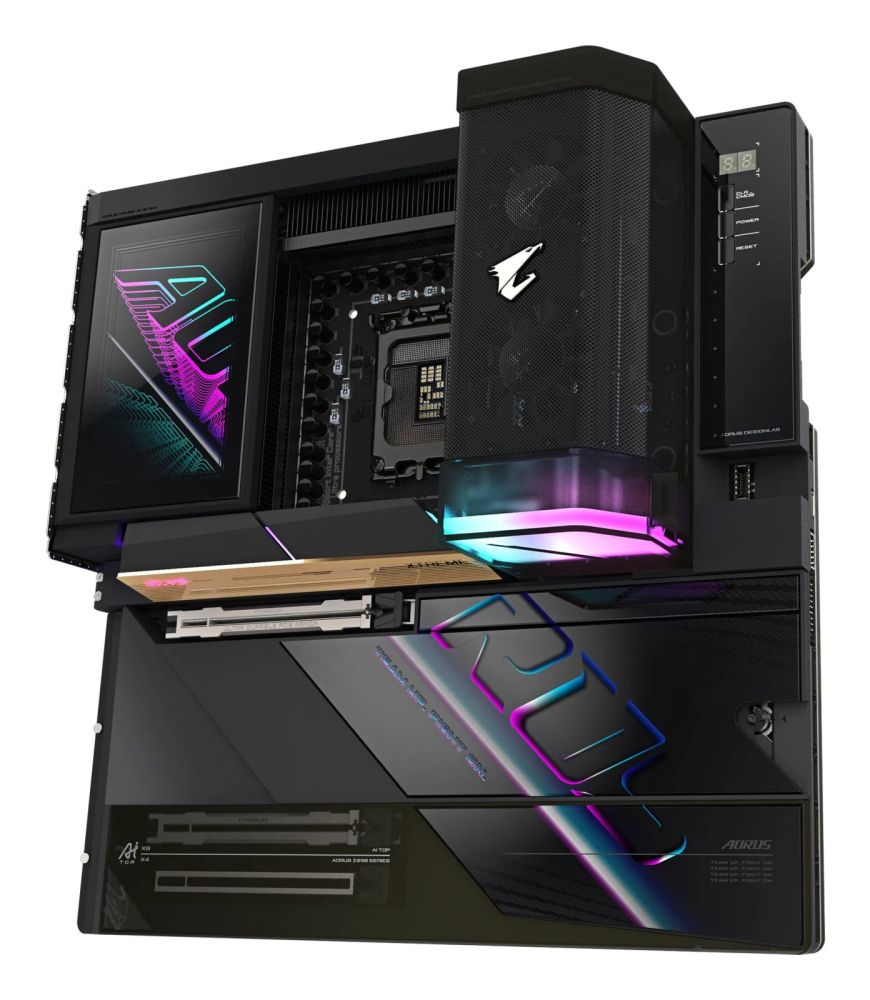

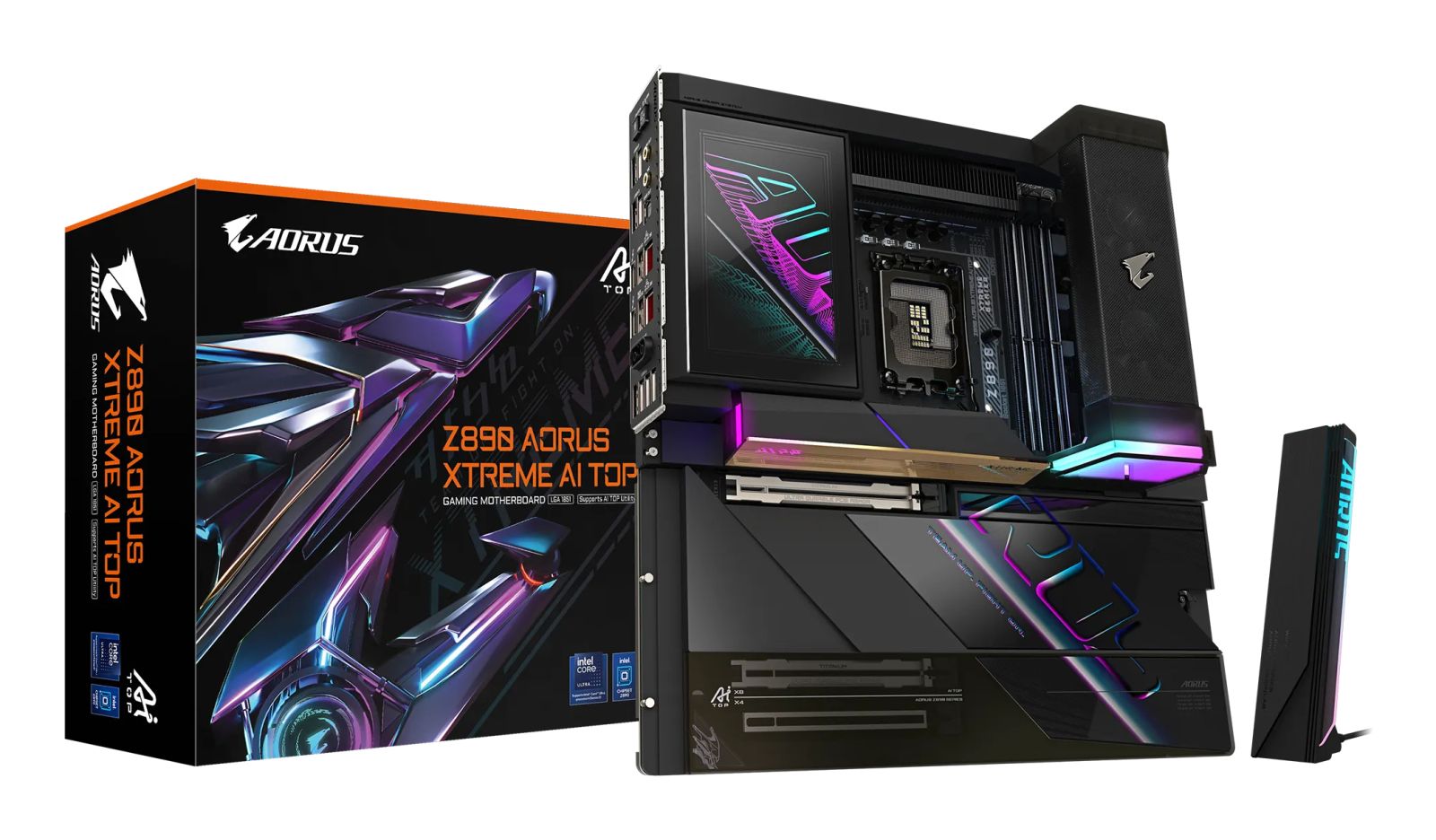

GIGABYTE Z890 A XTREME AI TOP LGA1851 4xDDR5 4xSATA 4xM.2
|
1.226,04 EUR |
|
|
( 1.458,99 EUR incl. VAT ) ≈ £1,032.33 | ≈ $1,376.84 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 740085 |
| Mfg Part No: | Z890 A XTREME AI TOP |
| UPC/EAN: | 4719331866174 |
| Weight: | 6.85 kg |
Product information for Gigabyte Z890 A XTREME AI TOP:
GIGABYTE Z890 A XTREME AI TOP Mainboard ist eine Premium‑Plattform für High‑End‑Intel‑Systeme, die Performance mit modernem Design verbindet. Es richtet sich an anspruchsvolle Gamer, Content‑Creator und Power‑User, die Wert auf Stabilität, Zuverlässigkeit und hochwertige Verarbeitung legen. Das Mainboard überzeugt durch durchdachte Features, robuste Komponenten und eine starke Bauweise, die auch bei intensiver Nutzung eine konstante Leistung sicherstellt. Das elegante Design macht es zum Blickfang in jedem PC‑Build.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel Z890 |
| Audio chip | ESS ES9280AC + ESS ES9080 |
| Audio output channels | 2.0 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 2 |
| Thunderbolt headers | 1 |
| Number of water pump connectors | 2 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz |
| Supported memory clock speed (max) | 9500 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Marvell AQtion AQC113C |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 5.03 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |

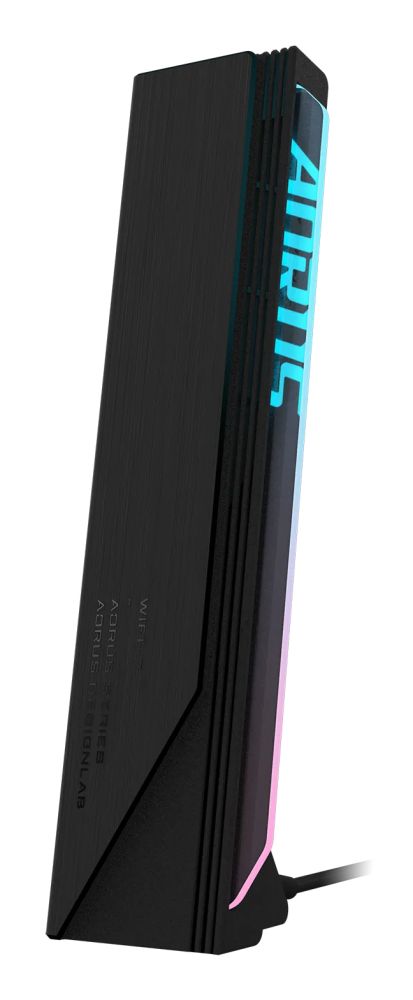

| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 386 mm |
| Package depth | 370 mm |
| Package height | 140 mm |
| Package weight | 6.7 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Maximum internal memory supported by processor | 256 GB |

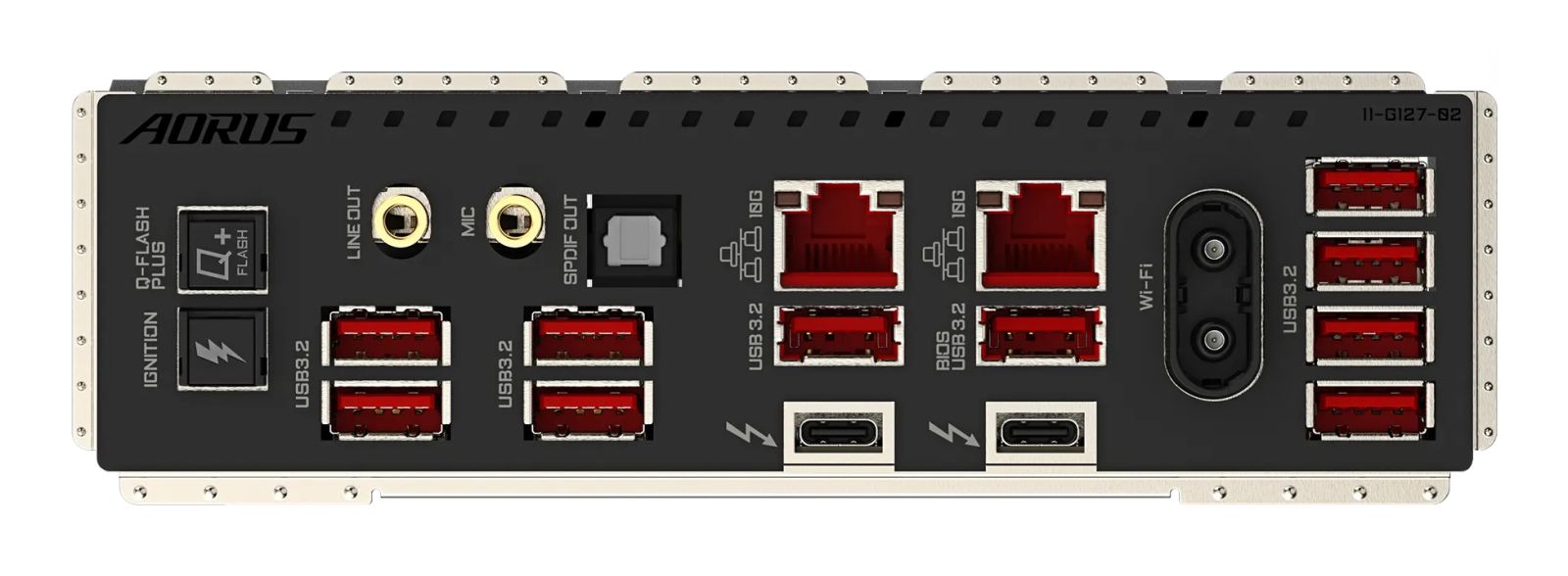

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 305 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of GIGABYTE Z890 A XTREME AI TOP LGA1851 4xDDR5 4xSATA 4xM.2?
The article GIGABYTE Z890 A XTREME AI TOP LGA1851 4xDDR5 4xSATA 4xM.2 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte Z890 A XTREME AI TOP to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you GIGABYTE Z890 A XTREME AI TOP LGA1851 4xDDR5 4xSATA 4xM.2 always at the best possible price. We can give you a discount of 2% on GIGABYTE Z890 A XTREME AI TOP LGA1851 4xDDR5 4xSATA 4xM.2 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
