GIGABYTE Z890 EAGLE PLUS LGA1851 1xDP
|
198,85 EUR 200,29 EUR |
|
|
( 236,63 EUR incl. VAT ) ≈ £166.04 | ≈ $222.91 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 215370 |
| Mfg Part No: | Z890 EAGLE PLUS |
| UPC/EAN: | 4719331880750 |
| Weight: | 2.443 kg |
Product information for Gigabyte Z890 EAGLE PLUS:

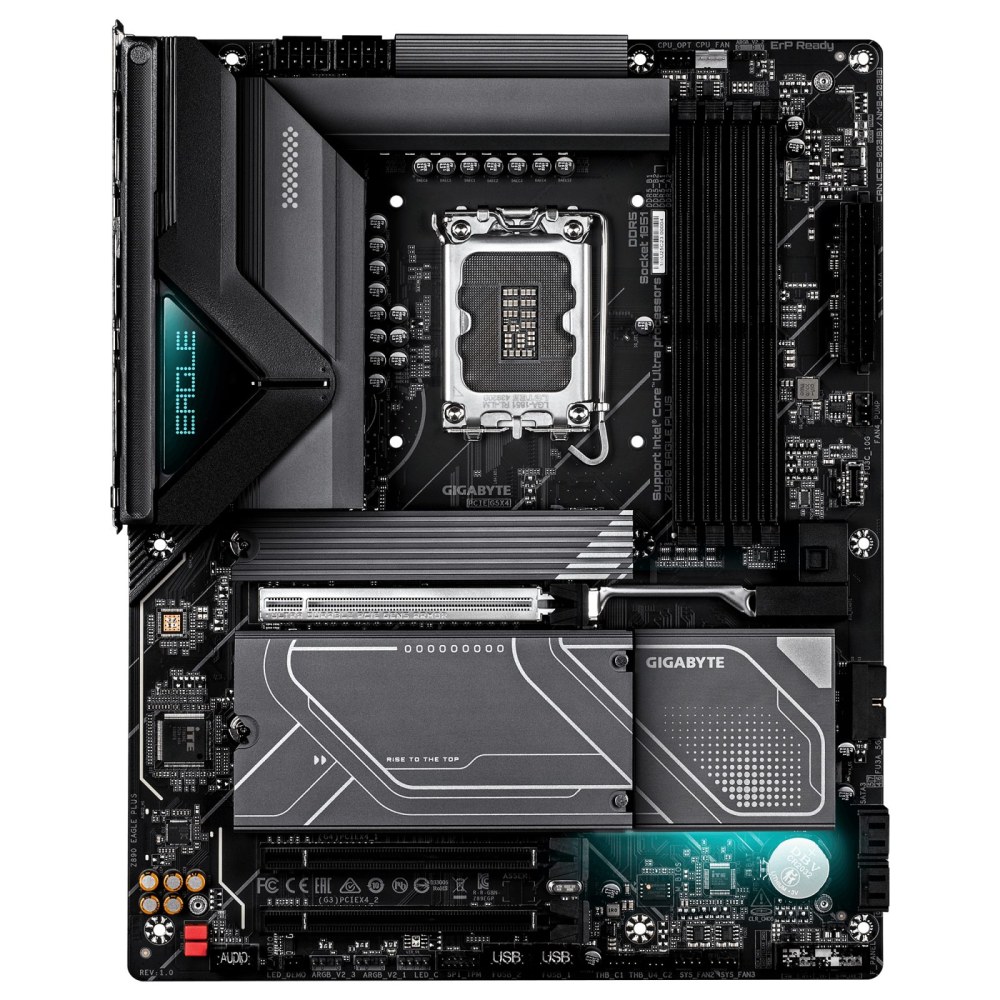

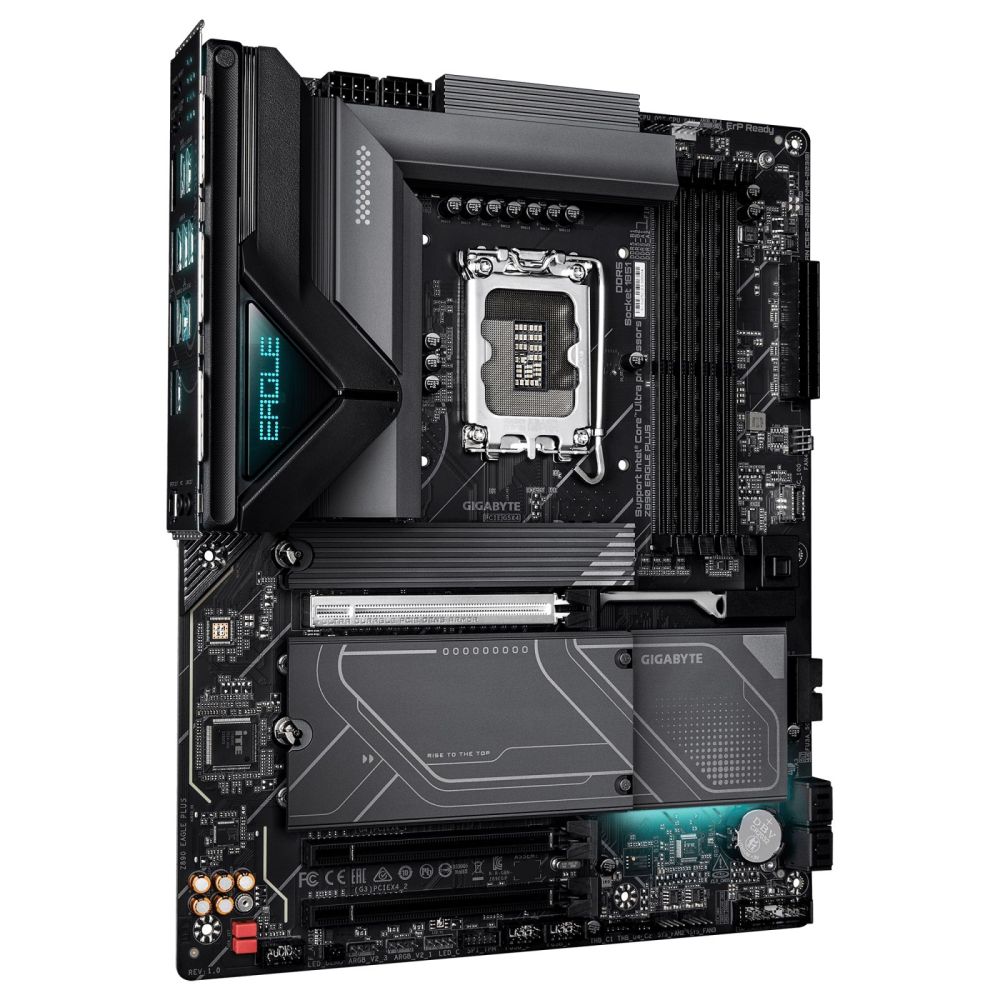

The Gigabyte Z890 EAGLE PLUS is an ATX motherboard with Intel Z890 chipset, specifically developed for Intel Core Ultra processors of Series 2 on the LGA 1851 socket. It serves as a platform for high-performance desktop PCs and offers comprehensive features for demanding applications such as gaming, content creation, or professional work environments. The board supports modern memory technologies and provides multiple interfaces for fast data transfer performance.
Applications
This motherboard is designed for systems requiring high computing power and fast data access. It is particularly suitable for workstations, gaming PCs, and multimedia systems that rely on support for DDR5-SDRAM and PCIe 5.0 slots. The integrated 2.5-Gigabit Ethernet connection and support for USB4 as well as DisplayPort 2.1 expand application possibilities in networks and when connecting external devices.
Features and Specifications in Detail
The board features four DIMM memory slots supporting up to 256 GB DDR5-SDRAM with clock speeds up to 9466 MHz (overclocked). The memory architecture is dual-channel and supports unbuffered memory. The maximum capacity per slot is 64 GB. For memory control, M.2 and SATA III interfaces are available, supporting up to eight storage drives (HDD and SSD). RAID levels 0, 1, 5, and 10 are implemented, increasing flexibility for data protection and performance enhancement.
Technology Explained Simply
Power delivery is handled by a 14+1+2-phase VRM, ensuring stable and efficient power supply to the CPU and chipset. Cooling is passive, ensuring quiet operation. Graphics functions are oriented towards the integrated graphics of the processor, with a maximum resolution of 3840 x 2160 pixels and DirectX 12.0 support. Audio functions are based on the Realtek ALC1220-VB chip, supporting 7.1 channels and featuring an optical digital output.
Compatibility and Accessories
The motherboard is equipped with the Intel Z890 chipset and supports exclusively Intel Core Ultra processors of Series 2. Expansion options include one PCIe 5.0 x16 slot, two PCIe 4.0 x16 slots, and four M.2 slots (one with PCIe 5.0 x4, three with PCIe 4.0 x4). Internal connectors include two USB 2.0, one USB 3.2 Gen 1, one USB 3.2 Gen 2, four SATA III connectors, front panel headers, CPU and chassis fan connectors, EPS power connectors, TPM connector, Thunderbolt pin headers, water pump connectors, and four RGB-LED pin headers.
Installation and Mounting
The board is in ATX format and requires a compatible PC case. Installation is performed via standard slots and connectors. Power supply is via ATX and EPS connectors. PC health monitoring includes fan, temperature, voltage, and water cooling monitoring, which is helpful for system stability.
Operational Advantages
The combination of 14+1+2-phase VRM, DDR5 support up to 9466 MHz (OC), four M.2 slots, and 2.5-GbE LAN provides a powerful and scalable platform. Support for USB4 and DisplayPort 2.1 enables fast external connections and driving high-resolution monitors. Integrated audio and networking technology, along with extensive connectivity options, increase flexibility in system configuration. The board supports the Windows 11 x64 operating system.
Applications
This motherboard is designed for systems requiring high computing power and fast data access. It is particularly suitable for workstations, gaming PCs, and multimedia systems that rely on support for DDR5-SDRAM and PCIe 5.0 slots. The integrated 2.5-Gigabit Ethernet connection and support for USB4 as well as DisplayPort 2.1 expand application possibilities in networks and when connecting external devices.
Features and Specifications in Detail
The board features four DIMM memory slots supporting up to 256 GB DDR5-SDRAM with clock speeds up to 9466 MHz (overclocked). The memory architecture is dual-channel and supports unbuffered memory. The maximum capacity per slot is 64 GB. For memory control, M.2 and SATA III interfaces are available, supporting up to eight storage drives (HDD and SSD). RAID levels 0, 1, 5, and 10 are implemented, increasing flexibility for data protection and performance enhancement.
Technology Explained Simply
Power delivery is handled by a 14+1+2-phase VRM, ensuring stable and efficient power supply to the CPU and chipset. Cooling is passive, ensuring quiet operation. Graphics functions are oriented towards the integrated graphics of the processor, with a maximum resolution of 3840 x 2160 pixels and DirectX 12.0 support. Audio functions are based on the Realtek ALC1220-VB chip, supporting 7.1 channels and featuring an optical digital output.
Compatibility and Accessories
The motherboard is equipped with the Intel Z890 chipset and supports exclusively Intel Core Ultra processors of Series 2. Expansion options include one PCIe 5.0 x16 slot, two PCIe 4.0 x16 slots, and four M.2 slots (one with PCIe 5.0 x4, three with PCIe 4.0 x4). Internal connectors include two USB 2.0, one USB 3.2 Gen 1, one USB 3.2 Gen 2, four SATA III connectors, front panel headers, CPU and chassis fan connectors, EPS power connectors, TPM connector, Thunderbolt pin headers, water pump connectors, and four RGB-LED pin headers.
Installation and Mounting
The board is in ATX format and requires a compatible PC case. Installation is performed via standard slots and connectors. Power supply is via ATX and EPS connectors. PC health monitoring includes fan, temperature, voltage, and water cooling monitoring, which is helpful for system stability.
Operational Advantages
The combination of 14+1+2-phase VRM, DDR5 support up to 9466 MHz (OC), four M.2 slots, and 2.5-GbE LAN provides a powerful and scalable platform. Support for USB4 and DisplayPort 2.1 enables fast external connections and driving high-resolution monitors. Integrated audio and networking technology, along with extensive connectivity options, increase flexibility in system configuration. The board supports the Windows 11 x64 operating system.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| Number of EPS power connectors (8-pin) | 2 |
| Thunderbolt headers | 2 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9466 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| LAN controller | Realtek RTL8125 |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 2.44 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Screws included | |
| Packaging data | |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.85 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |

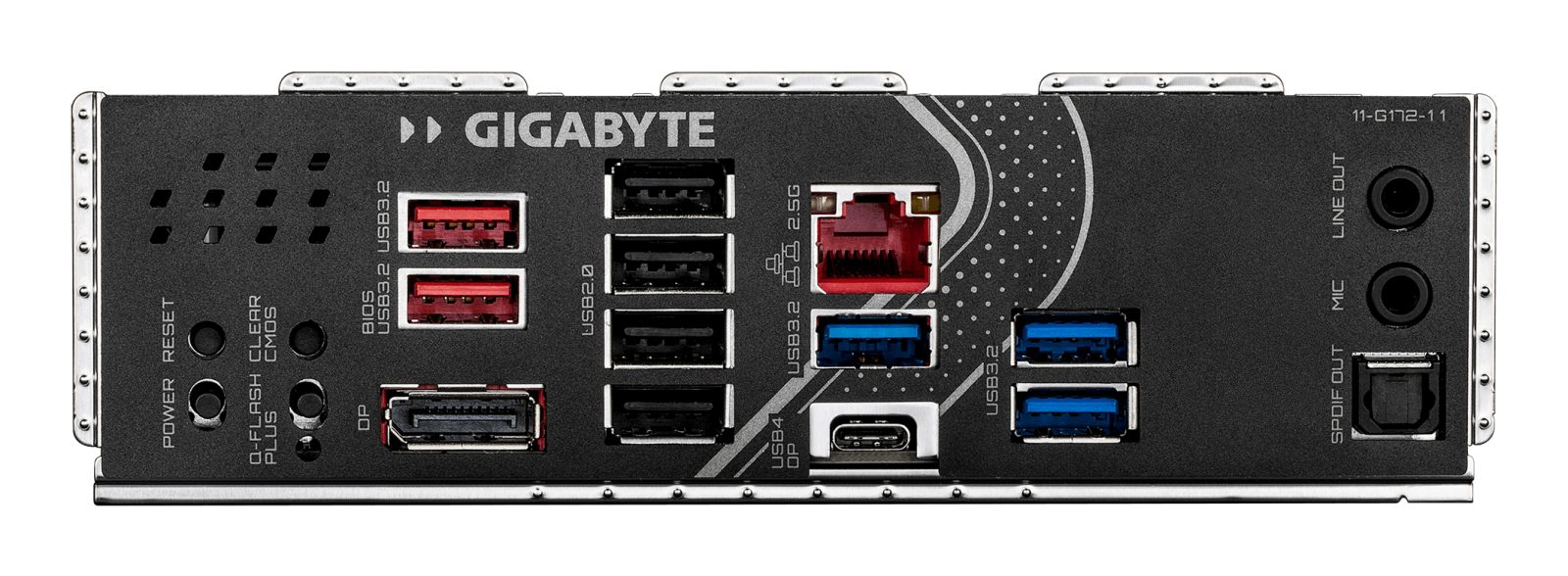

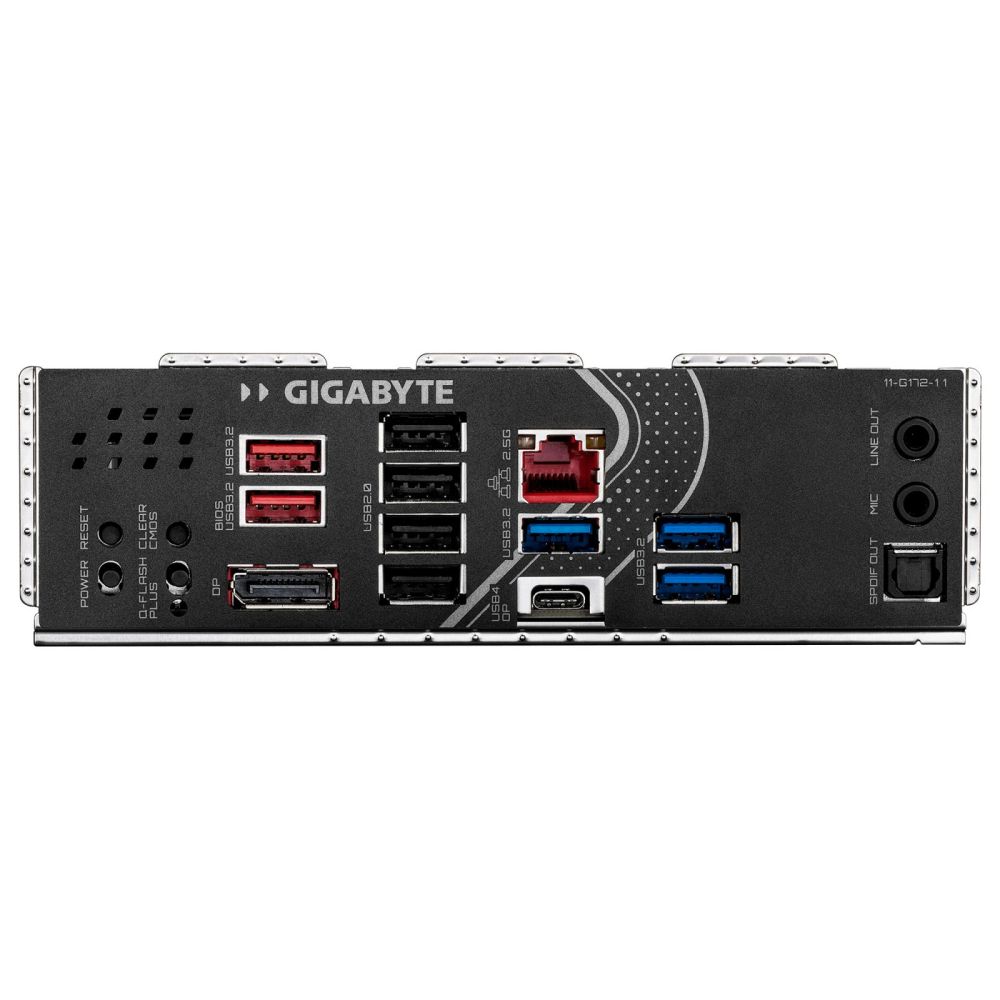

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Digital audio optical out | 1 |
| Line-in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
