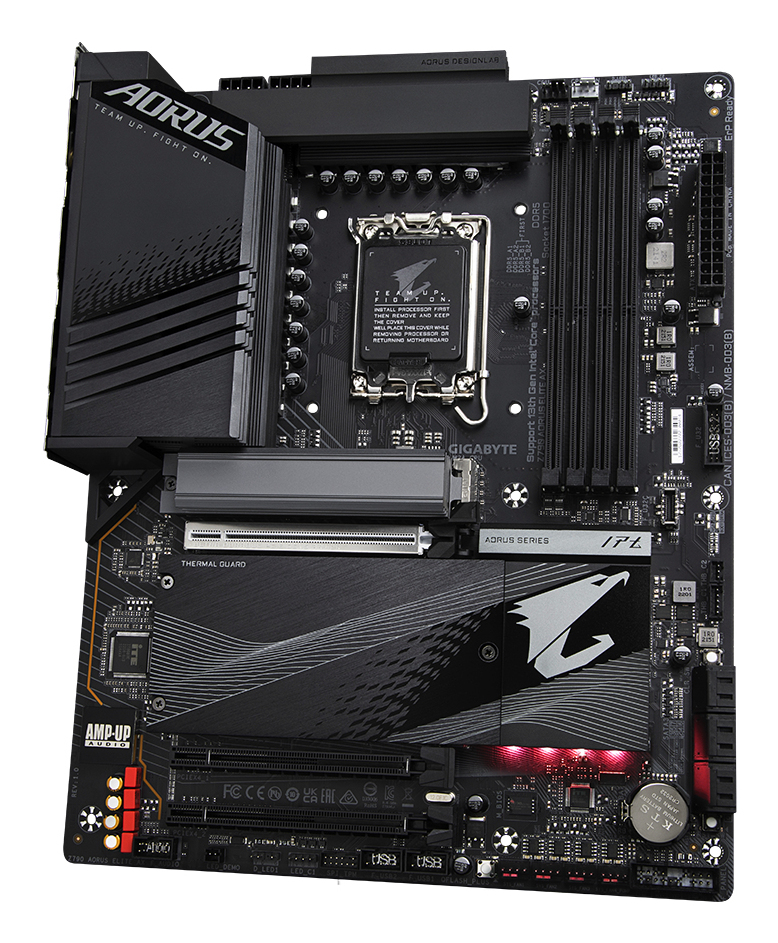

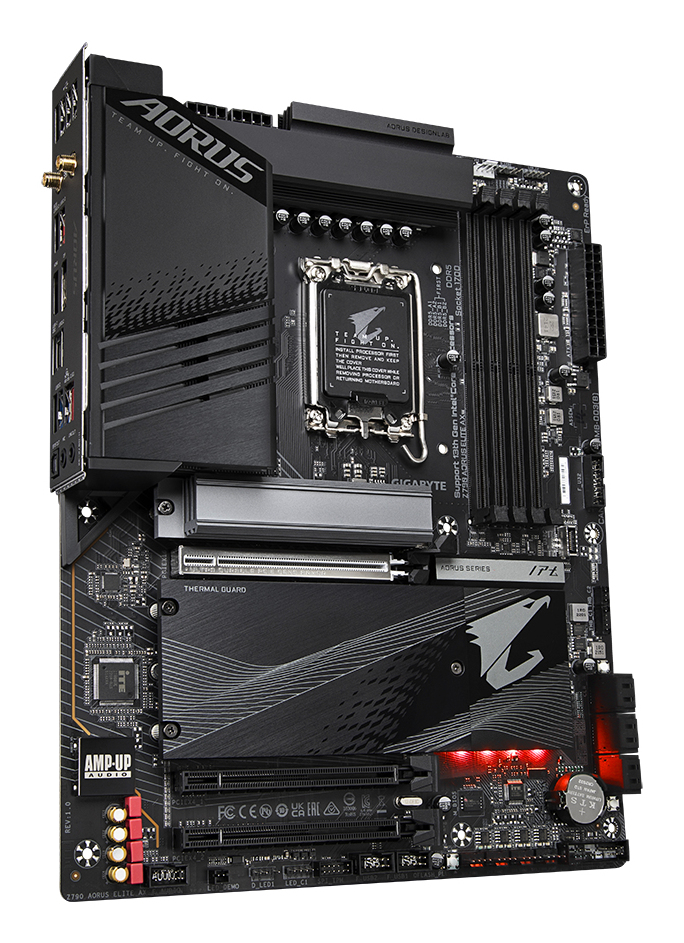

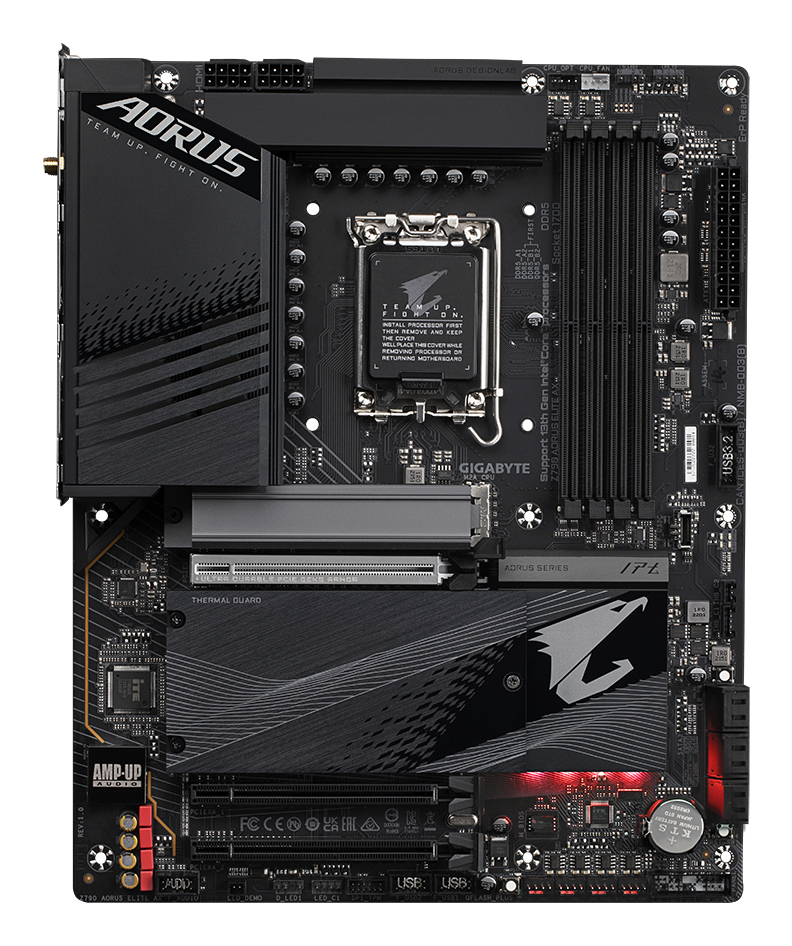

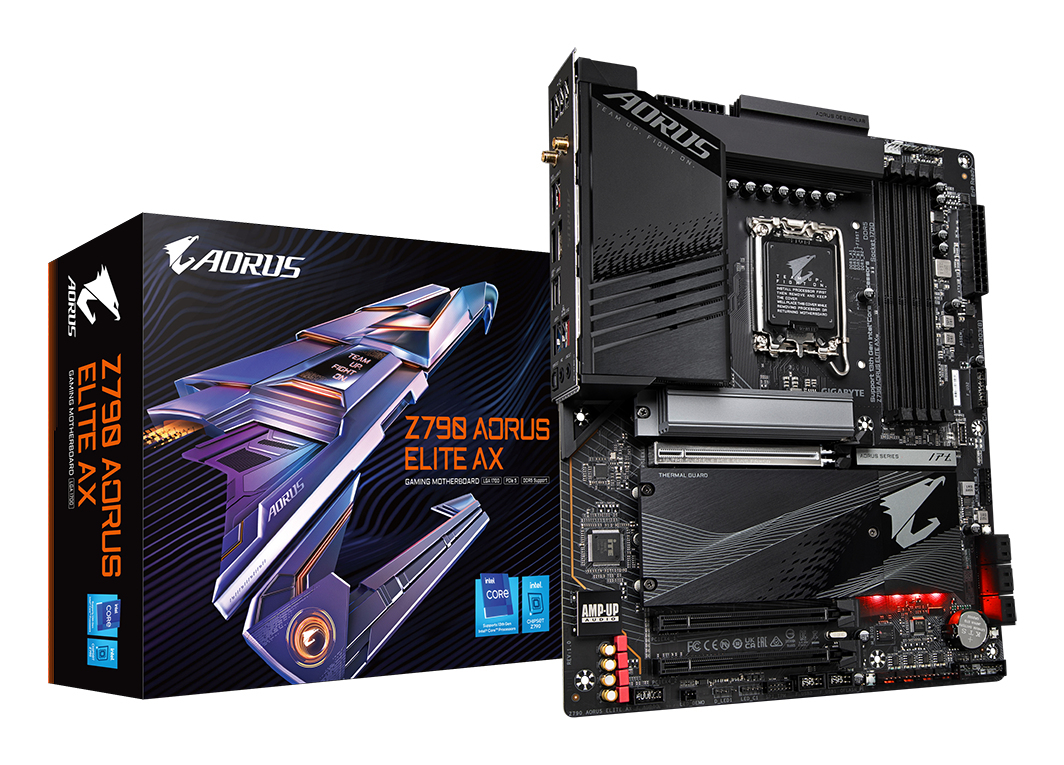

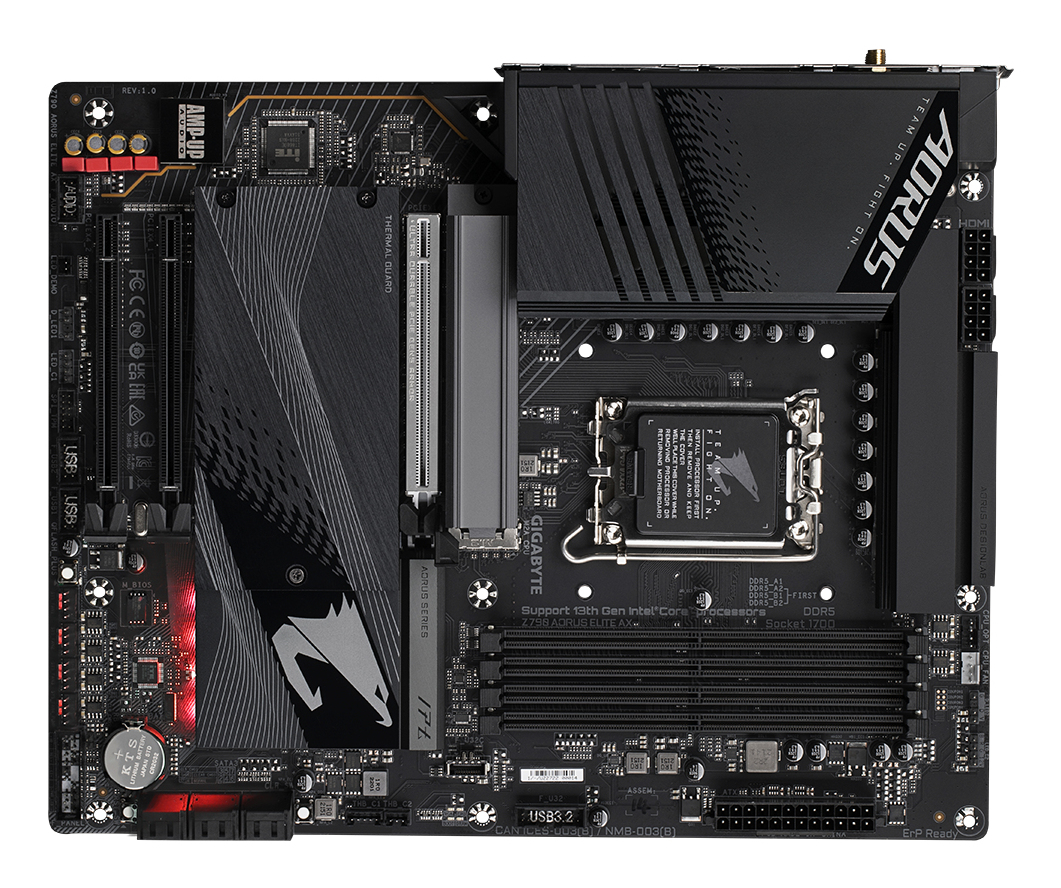

Gigabyte Z790 AORUS ELITE AX 1.0 GIGA Z790 AORUS ELITE AX S1700/DDR5/HDMI-DP/4xM.2/WIFI/ATX
|
-7% 197,57 EUR 211,43 EUR |
|
|
( 235,11 EUR incl. VAT ) ≈ £166.35 | ≈ $221.87 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1706328 |
| Mfg Part No: | Z790 AORUS ELITE AX 1.0 |
| UPC/EAN: | 4719331849467 |
| Weight: | 2.026 kg |
Product information for Gigabyte Z790 AORUS ELITE AX 1.0:
Socket LGA1700 supports Intel 14th/ 13th/ 12th Gen Core,
Intel Z790 Express Chipset
4x DDR5 Unbuffered DIMM, non-ECC, up to 192GB (4x 48GB)
1x PCI Express 5.0 x16 slot @ x16 mode
1x PCI Express 4.0 x16 slot @ x4 mode
1x PCI Express 3.0 x16 slot @ x4 mode
3x M.2 (22110/2280) PCIe 4.0 x4 (PCIe/NVMe)
1x M.2 (22110/2280) PCIe 4.0 x4 & SATA 6GB/s (PCIe/NVMe & SATA)
6x SATA 6GB/s RAID 0/1/5/10 for NVMe and SATA
1x Realtek Ethernet 2.5GB
1x HDMI 2.0 (4096x2160@60Hz)
1x DisplayPort 1.2 (4096x2304@60Hz)
WiFi 6E & Bluetooth 5.3
1x USB Type-C® USB 3.2 Gen 2x2 support
2x USB 3.2 Gen 2 Type Type-A (red)
3x USB 3.2 Gen 1 ports (blue)
4x USB 2.0/1.1 ports
2x SMA antenna connectors (2T2R)
1x HDMI, 1 x DisplayPort
1x RJ-45, 1x optical S/PDIF Out, 2x audio jacks
Intel Z790 Express Chipset
4x DDR5 Unbuffered DIMM, non-ECC, up to 192GB (4x 48GB)
1x PCI Express 5.0 x16 slot @ x16 mode
1x PCI Express 4.0 x16 slot @ x4 mode
1x PCI Express 3.0 x16 slot @ x4 mode
3x M.2 (22110/2280) PCIe 4.0 x4 (PCIe/NVMe)
1x M.2 (22110/2280) PCIe 4.0 x4 & SATA 6GB/s (PCIe/NVMe & SATA)
6x SATA 6GB/s RAID 0/1/5/10 for NVMe and SATA
1x Realtek Ethernet 2.5GB
1x HDMI 2.0 (4096x2160@60Hz)
1x DisplayPort 1.2 (4096x2304@60Hz)
WiFi 6E & Bluetooth 5.3
1x USB Type-C® USB 3.2 Gen 2x2 support
2x USB 3.2 Gen 2 Type Type-A (red)
3x USB 3.2 Gen 1 ports (blue)
4x USB 2.0/1.1 ports
2x SMA antenna connectors (2T2R)
1x HDMI, 1 x DisplayPort
1x RJ-45, 1x optical S/PDIF Out, 2x audio jacks
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 4 |
| Features | |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Crossfire |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| On-board graphics card | |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Total number of SATA connectors | 6 |
| Thunderbolt headers | 2 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Batteries included | |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.32 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 192 GB |

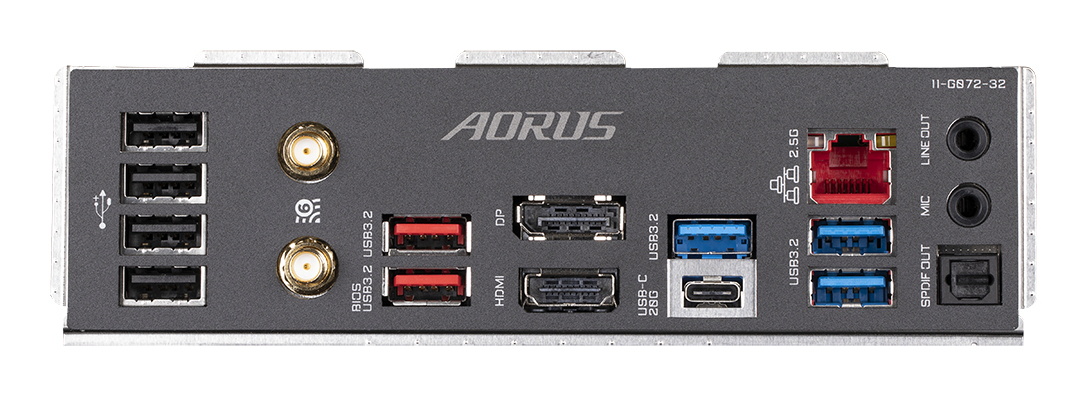

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 2 |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 10 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of Gigabyte Z790 AORUS ELITE AX 1.0 GIGA Z790 AORUS ELITE AX S1700/DDR5/HDMI-DP/4xM.2/WIFI/ATX?
The article Gigabyte Z790 AORUS ELITE AX 1.0 GIGA Z790 AORUS ELITE AX S1700/DDR5/HDMI-DP/4xM.2/WIFI/ATX is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte Z790 AORUS ELITE AX 1.0 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte Z790 AORUS ELITE AX 1.0 GIGA Z790 AORUS ELITE AX S1700/DDR5/HDMI-DP/4xM.2/WIFI/ATX always at the best possible price. We can give you a discount of 2% on Gigabyte Z790 AORUS ELITE AX 1.0 GIGA Z790 AORUS ELITE AX S1700/DDR5/HDMI-DP/4xM.2/WIFI/ATX if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
