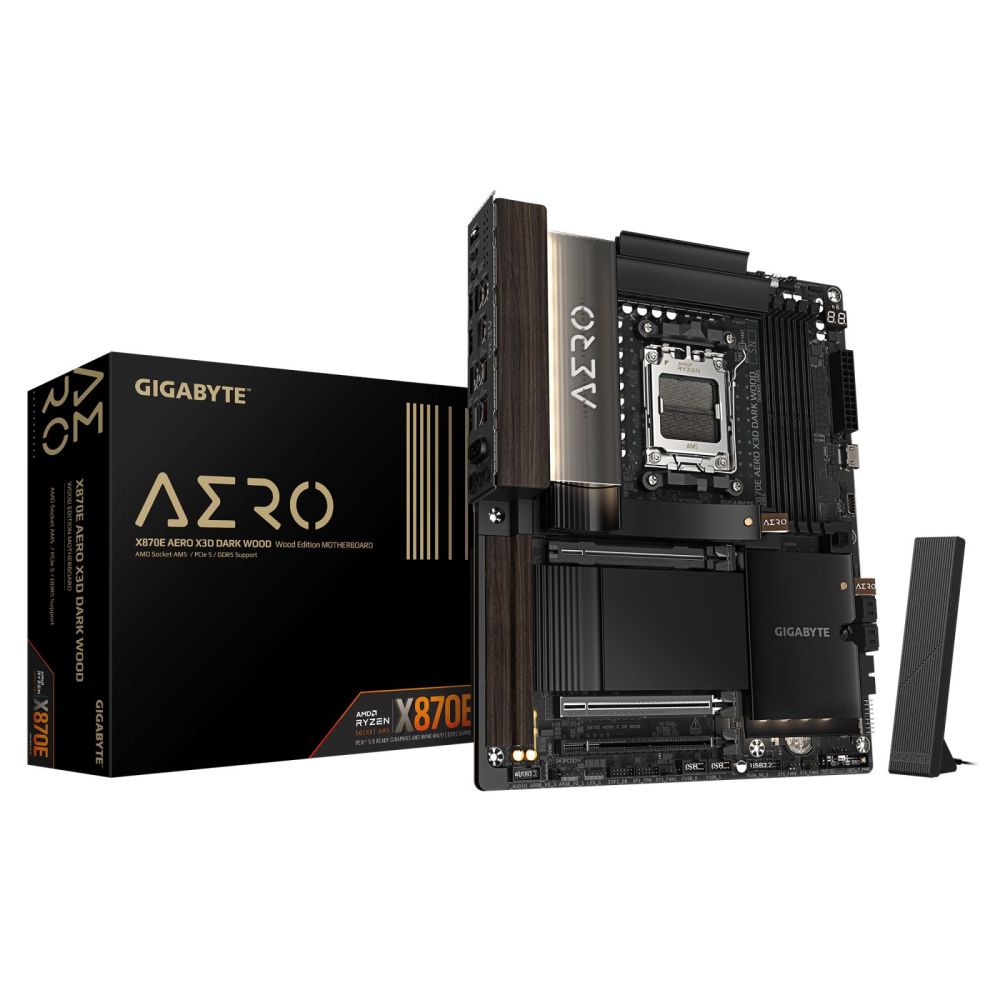

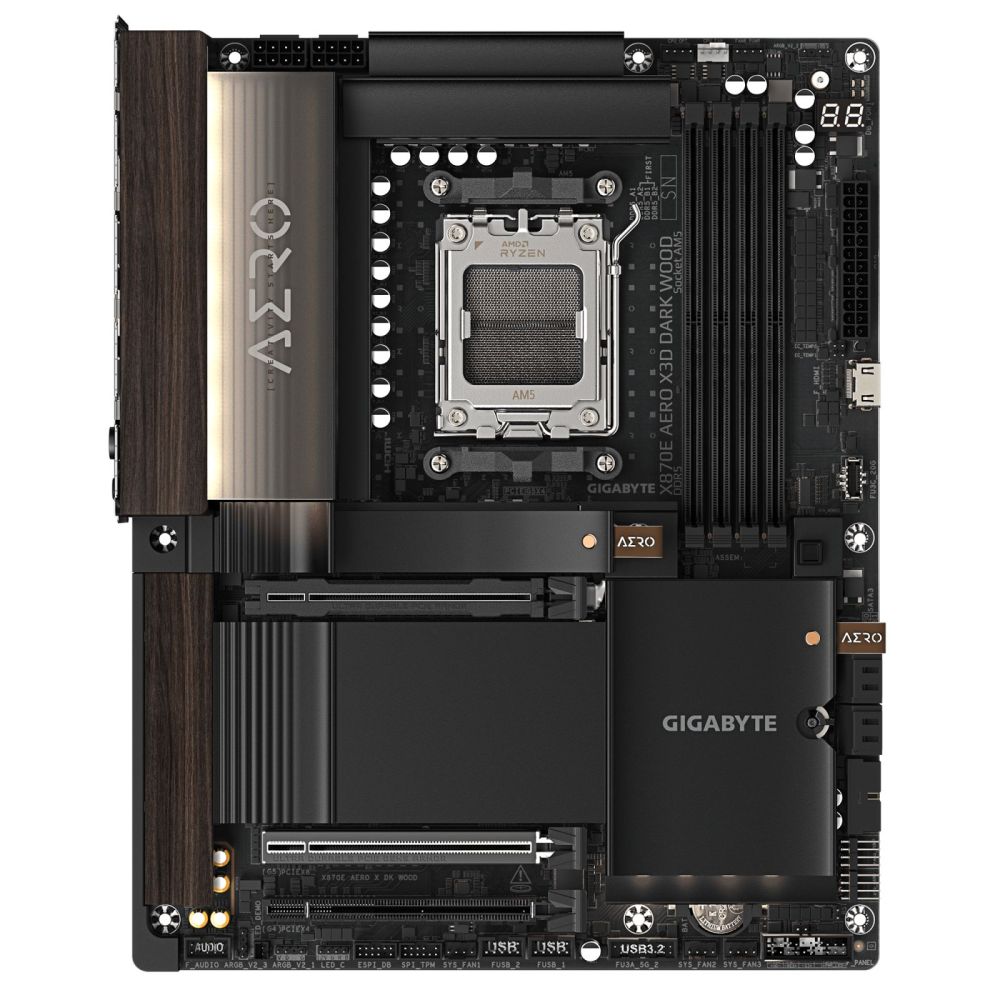

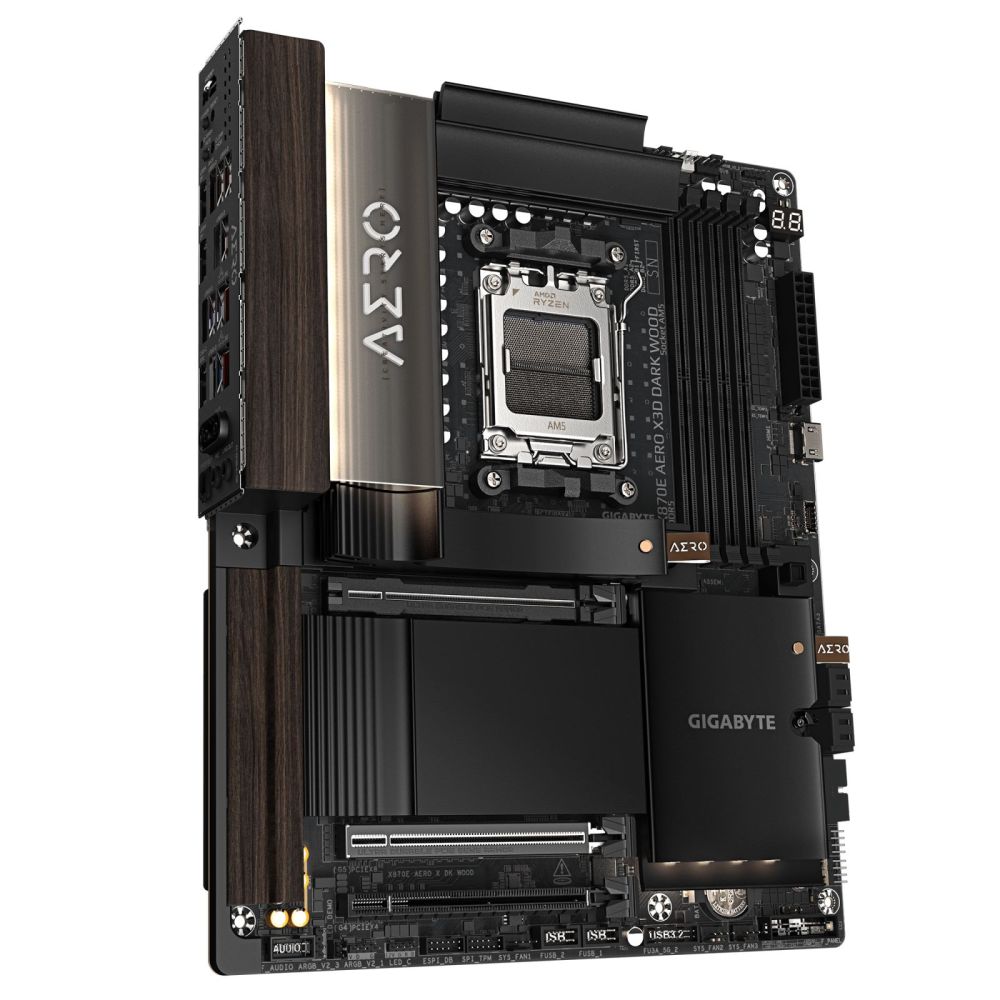

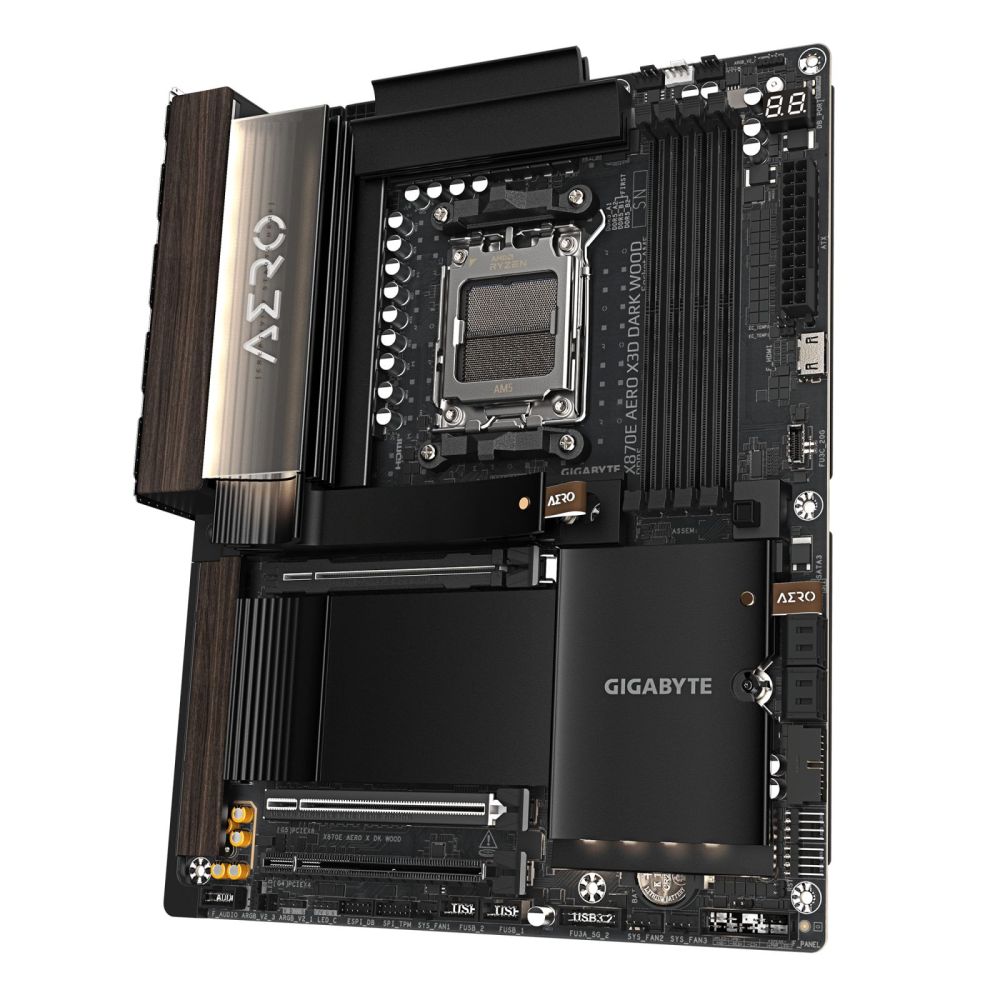

GIGABYTE X870E AERO X DK WOOD AM5 1xHDMI
|
387,87 EUR 388,91 EUR |
|
|
( 461,57 EUR incl. VAT ) ≈ £326.59 | ≈ $435.58 plus delivery charges: 53,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 861434 |
| Mfg Part No: | X870E AERO X DK WOOD |
| UPC/EAN: | 4719331880637 |
| Weight: | 3.15 kg |
Product information for Gigabyte X870E AERO X DK WOOD:
Gigabyte X870E AERO X3D DARK WOOD Mainboard AM5 DDR5 ATX – Das X870E AERO X3D DARK WOOD ist ein High-End-Mainboard von Gigabyte für AMDs AM5-Plattform und richtet sich an Enthusiasten, Creator und Design-orientierte Builds. Es kombiniert starke technische Ausstattung mit einem auffälligen „Dark Wood“-Design im AERO-Stil.
Technisch basiert das Board auf dem AMD X870E Chipsatz und unterstützt Ryzen-7000-, 8000- und 9000-Serienprozessoren. Es bietet eine sehr leistungsfähige 16+2+2 VRM-Spannungsversorgung, ein 8-Layer-PCB sowie eine 2-oz-Kupferstruktur für hohe Stabilität auch bei starken CPUs.
Beim Speicher unterstützt es DDR5 mit hohen OC-Taktraten (bis ~9000 MT/s) sowie vier DIMM-Slots für bis zu 256 GB RAM.
Für Erweiterungen stehen mehrere PCIe-5.0-x16-Slots sowie bis zu 4 M.2-SSD-Slots (inkl. PCIe 5.0) zur Verfügung, wodurch es klar im High-End-Segment positioniert ist.
Auch die Konnektivität ist modern gehalten: USB4, mehrere schn
Technisch basiert das Board auf dem AMD X870E Chipsatz und unterstützt Ryzen-7000-, 8000- und 9000-Serienprozessoren. Es bietet eine sehr leistungsfähige 16+2+2 VRM-Spannungsversorgung, ein 8-Layer-PCB sowie eine 2-oz-Kupferstruktur für hohe Stabilität auch bei starken CPUs.
Beim Speicher unterstützt es DDR5 mit hohen OC-Taktraten (bis ~9000 MT/s) sowie vier DIMM-Slots für bis zu 256 GB RAM.
Für Erweiterungen stehen mehrere PCIe-5.0-x16-Slots sowie bis zu 4 M.2-SSD-Slots (inkl. PCIe 5.0) zur Verfügung, wodurch es klar im High-End-Segment positioniert ist.
Auch die Konnektivität ist modern gehalten: USB4, mehrere schn
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC1220-VB |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.3 |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 3 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory clock speed (max) | 9000 MHz |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Realtek RTL8126 |

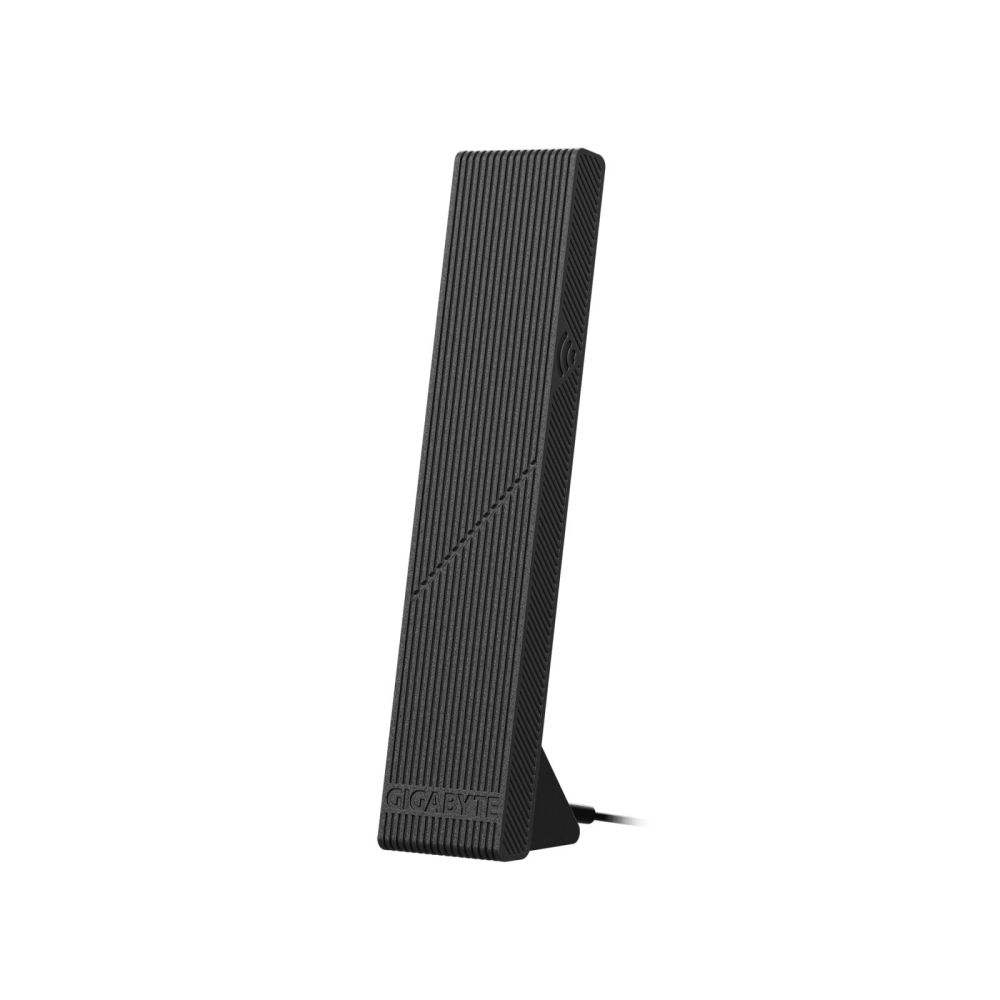

| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 3.17 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 341 mm |
| Package depth | 306 mm |
| Package height | 89 mm |
| Package weight | 3.67 kg |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |

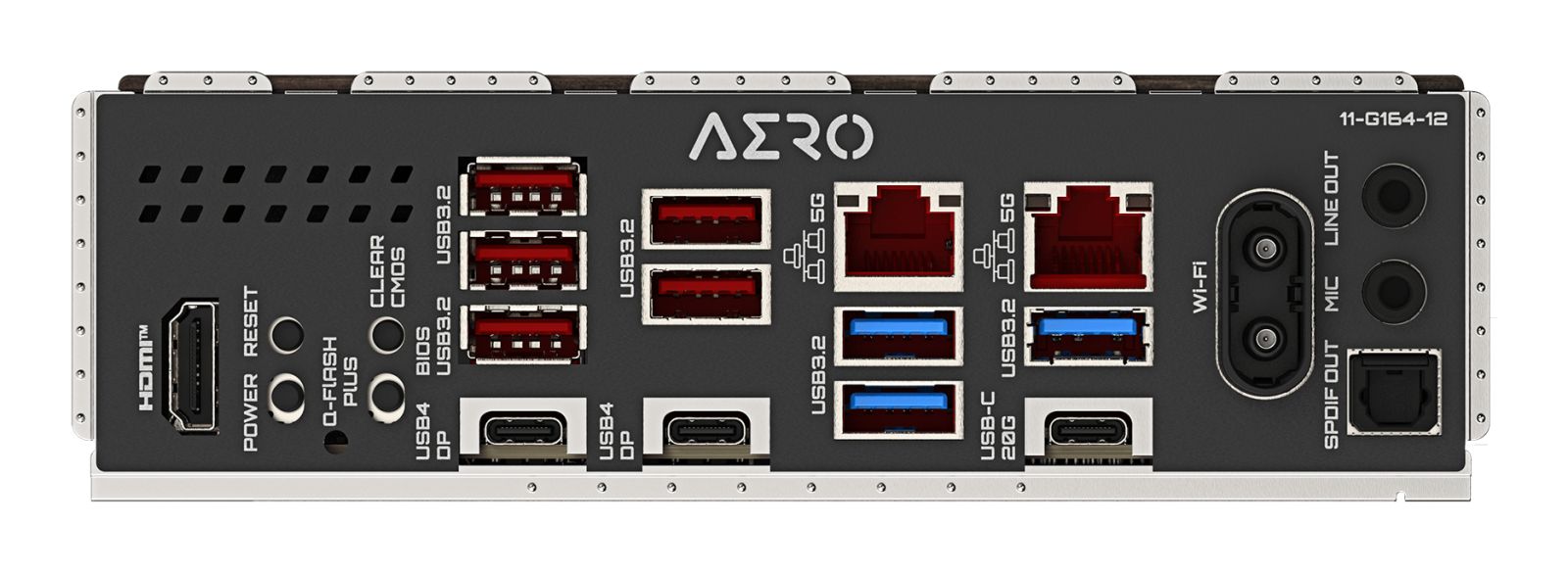

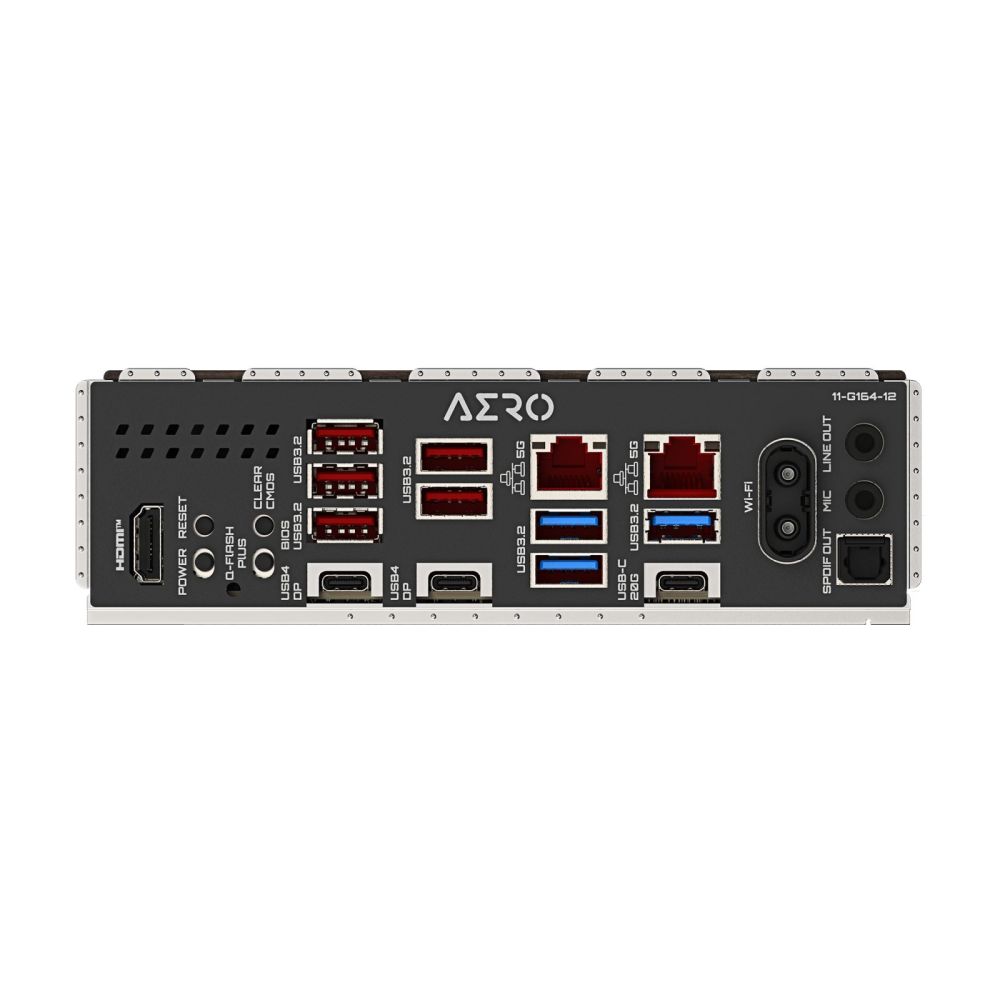

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | |
| S/PDIF out port | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of GIGABYTE X870E AERO X DK WOOD AM5 1xHDMI?
The article GIGABYTE X870E AERO X DK WOOD AM5 1xHDMI is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte X870E AERO X DK WOOD to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you GIGABYTE X870E AERO X DK WOOD AM5 1xHDMI always at the best possible price. We can give you a discount of 2% on GIGABYTE X870E AERO X DK WOOD AM5 1xHDMI if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
