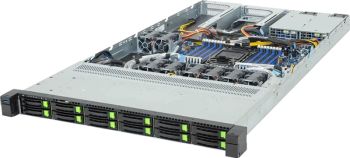

Gigabyte R164-SG5-AAV1 Barebone
|
2.807,84 EUR 2.926,63 EUR |
|
|
( 3.341,33 EUR incl. VAT ) ≈ £2,350.16 | ≈ $3,130.74 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 2 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2206404 |
| Mfg Part No: | R164-SG5-AAV1 |
| UPC/EAN: | 4719331864651 |
| Weight: | 0.123 kg |
Product information for Gigabyte R164-SG5-AAV1:
Rack Server, 1U, Intel Xeon 6700/6500 Series Processors with 136 PCIe lanes, Single Sockel LGA-4710, DDR5, 16x DIMMs, Front Hot-Swap: 12x 6,3 cm ( 2,5 inch ) Gen5 NVMe/SATA/SAS-4, 1x M.2 (2280/22110), PCIe 5.0 x2, 1x M.2 (2280/22110), PCIe 5.0 x2 shared with SATA, 1 x
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black, Steel |
| LED indicators | LAN, HDD, Status |
| Cooling type | Active |
| Number of fans | 8 fan(s) |
| Fan diameter | 4 cm |
| On/off switch | |
| Reset button | |
| Heat sink included | |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Features | |
| Trusted Platform Module (TPM) | |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Memory | |
| Number of DIMM slots | 16 |
| Supported memory types | GDDR5 |
| Memory channels | Octa-channel |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Packaging data | |
| Packaging content | 1 x R164-SG5-AAV1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 1 x GPU power cable (16-pin, 550mm) 2 x Carriers 1 x 2-Section Rail kit |
| Package width | 1038 mm |
| Package depth | 588 mm |
| Package height | 238 mm |
| Package weight | 15.7 kg |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power supply | 1600 W |
| Number of main power supplies | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 10 A |
| 80 PLUS certification | 80 PLUS Titanium |
| Processor | |
| Processor socket | LGA 4710 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Xeon® |
| Built-in processor | |
| Storage | |
| Number of storage drives supported | 14 |
| Number of 2.5" bays | 12 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA, PCI Express 4.0 |
| SSD form factor | M.2 |
| Hot-swap HDD bays | |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 815 mm |
| Height | 43.5 mm |
| Weight | 13.5 kg |
Questions & answers
What is the delivery time of Gigabyte R164-SG5-AAV1 Barebone ?
The article Gigabyte R164-SG5-AAV1 Barebone is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte R164-SG5-AAV1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte R164-SG5-AAV1 Barebone always at the best possible price. We can give you a discount of 2% on Gigabyte R164-SG5-AAV1 Barebone if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
