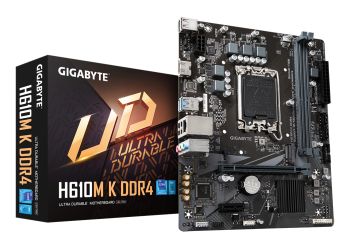

Gigabyte H610M K DDR4 (H610,S1700,mATX,DDR4)
|
58,48 EUR |
|
|
( 69,59 EUR incl. VAT ) ≈ £48.95 | ≈ $65.21 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 01.01.2199info_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2073904 |
| Mfg Part No: | H610M K DDR4 |
| UPC/EAN: | 4719331851675 |
| Weight: | 0.715 kg |
Further Miscellaneous from GigabyteFurther products in category Miscellaneous
All products of Gigabyte
Product information for Gigabyte H610M K DDR4:
Gigabyte H610M K DDR4 – Dieses Micro-ATX-Mainboard von GIGABYTE bietet eine solide Basis für Intel-PC-Builds mit Sockel LGA 1700 und unterstützt die neuesten Intel Core, Pentium Gold und Celeron Prozessoren der 12., 13. und 14. Generation. Es ist kompatibel mit DDR4-RAM bis 64 GB über zwei DIMM-Slots und eignet sich perfekt für Alltags- und Office-Systeme, kompakte Gaming- oder Multimedia-Rechner. Das Board bietet vielseitige Anschlussmöglichkeiten inklusive PCIe 4.0 x16-Slot, M.2-Slot für schnelle SSDs, Gigabit-LAN, HDMI-Grafikausgang sowie mehrere USB-Ports und SATA-Anschlüsse – eine flexible und zuverlässige Plattform für vielseitige Anwendungen.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Total number of SATA connectors | 2 |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 1 |
| Audio connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| Power fan connector | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum RDIMM memory | 64 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 717 g |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| USB connector type | USB Type-A |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 3 |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 185 mm |
| Height | 35 mm |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Gigabyte H610M K DDR4 (H610,S1700,mATX,DDR4)?
The article Gigabyte H610M K DDR4 (H610,S1700,mATX,DDR4) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte H610M K DDR4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte H610M K DDR4 (H610,S1700,mATX,DDR4) always at the best possible price. We can give you a discount of 2% on Gigabyte H610M K DDR4 (H610,S1700,mATX,DDR4) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
