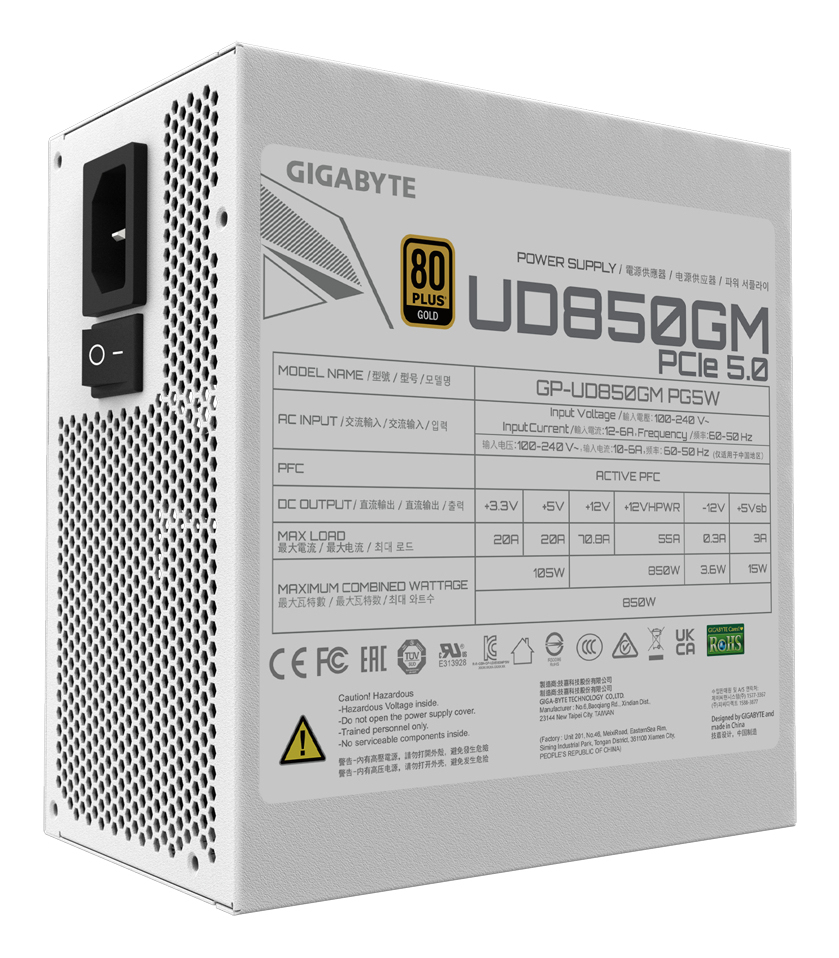

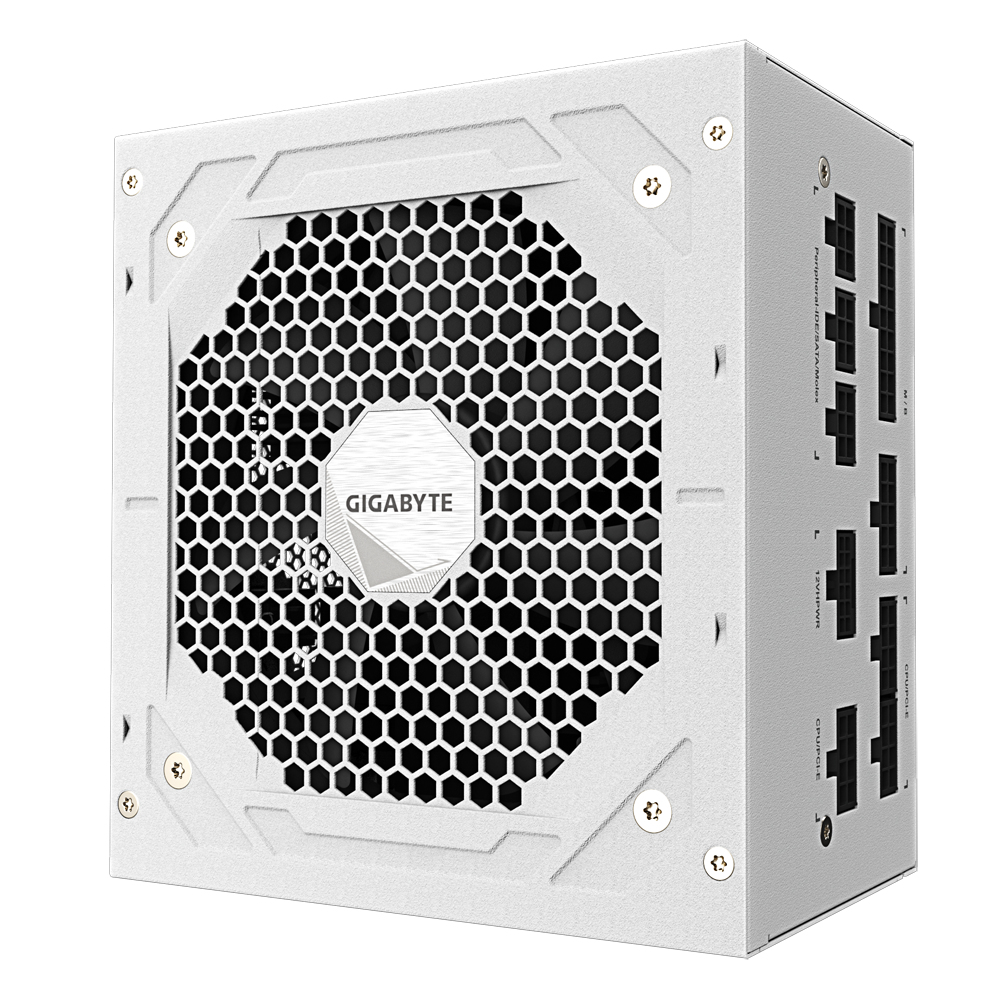

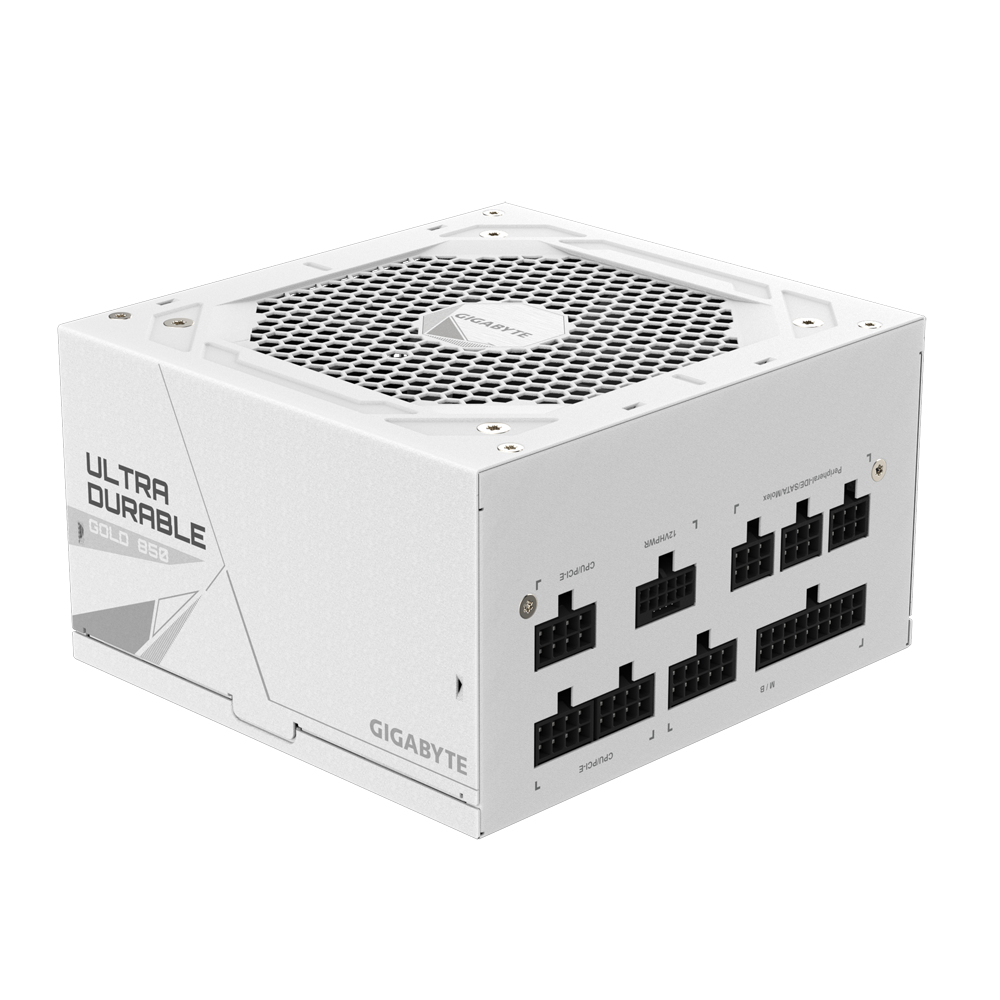

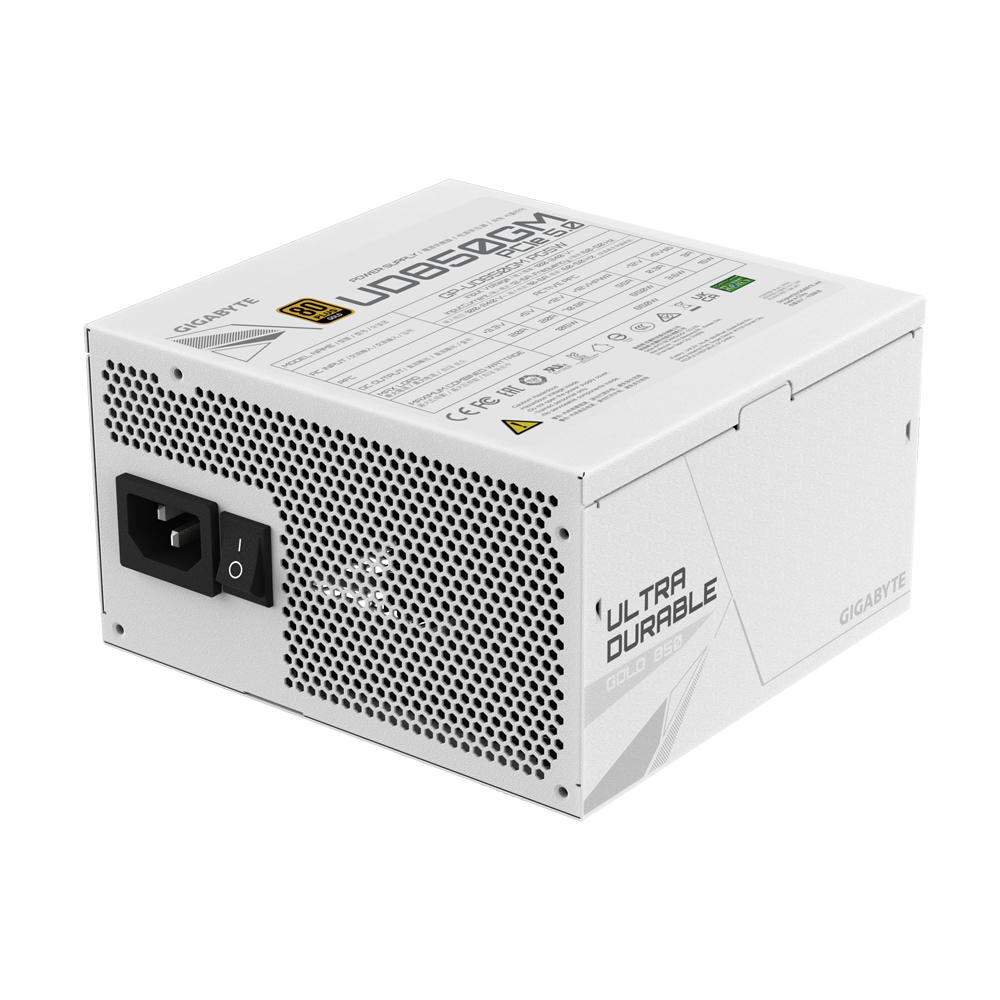

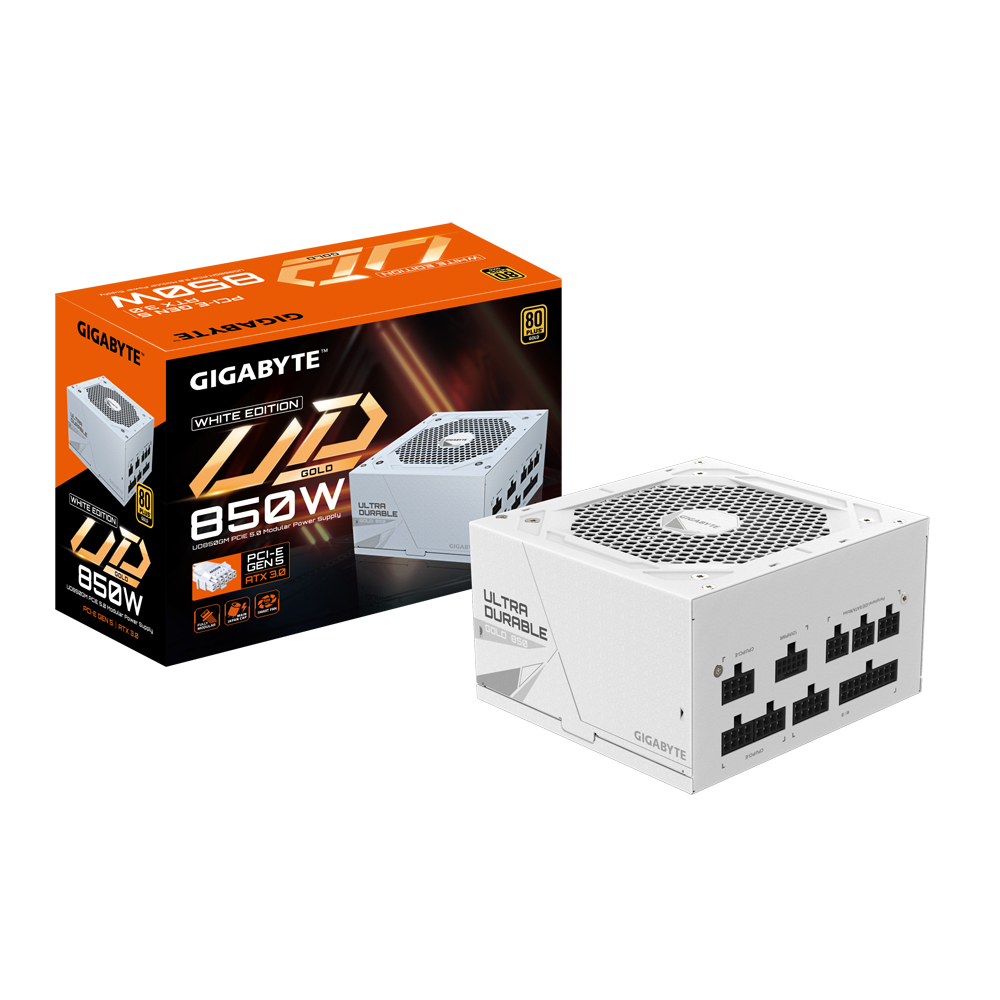

GIGABYTE GP-UD850GM PG5W 850W Gold PSU ATX3.0 Pciex5 PFC Activ White
|
100,31 EUR |
|
|
( 119,37 EUR incl. VAT ) ≈ £83.96 | ≈ $111.85 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 09. Dec 2025 |
|---|---|
| Lieske Part No.: | 306322 |
| Mfg Part No: | GP-UD850GM PG5W |
| UPC/EAN: | 4719331553470 |
| Weight: | 2.694 kg |
| Design | |
| Product colour | Black |
| Cooling type | Active |

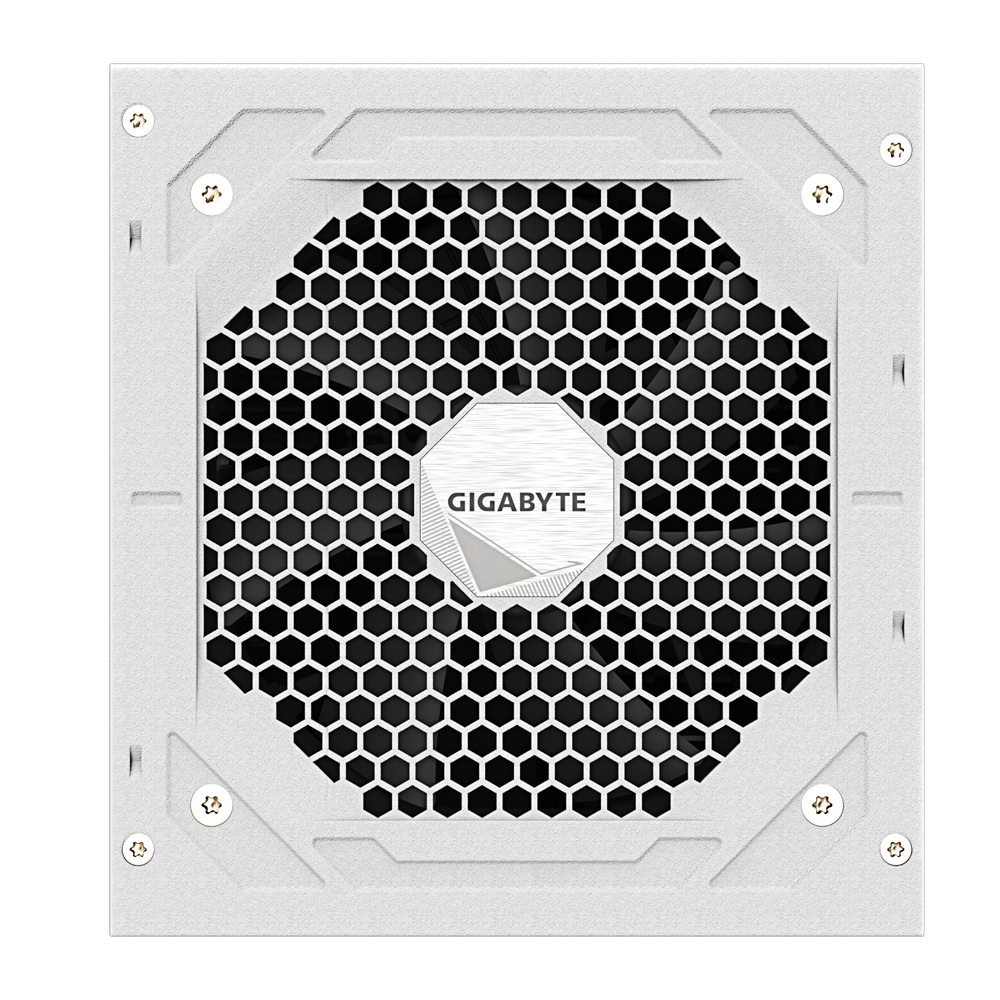

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | |
| Logistics data | |
| Warranty period | 5 year(s) |
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Packaging data | |
| Package width | 254 mm |
| Package depth | 206 mm |
| Package height | 117 mm |
| Package weight | 4.5 kg |
| Package type | Box |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |

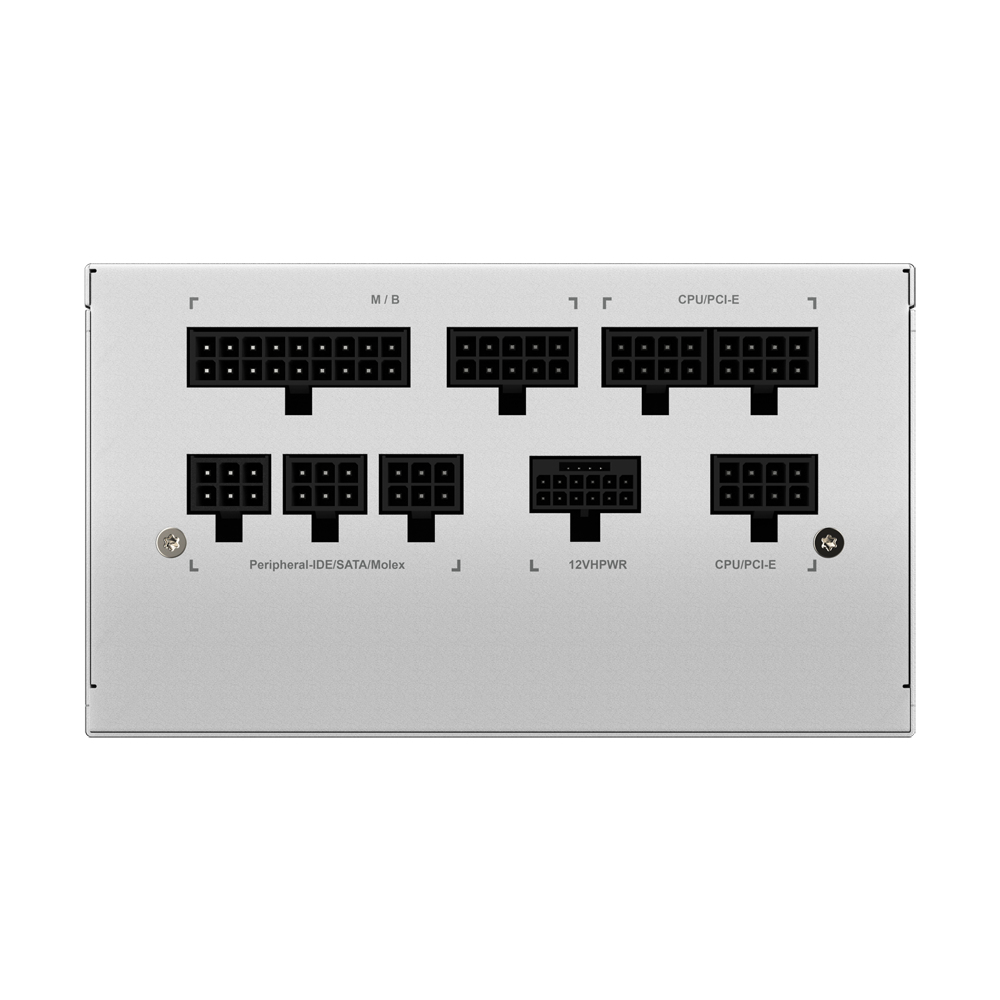

| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | |
| CPU power connector (4+4 pin) | |
| ATX power connector (20+4 pin) | |
| Floppy disk drive connector | |
| Power | |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 80 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 4.17 kg |
