GIGABYTE POWER SUPPLY 850W 80+ Gold
|
69,26 EUR |
|
|
( 82,42 EUR incl. VAT ) ≈ £57.97 | ≈ $77.22 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 04.11.2026info_outline | |
| End-Of-Life: | 16. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1559883 |
| Mfg Part No: | GP-P850GM |
| UPC/EAN: | 4719331551865 |
| Weight: | 0.123 kg |

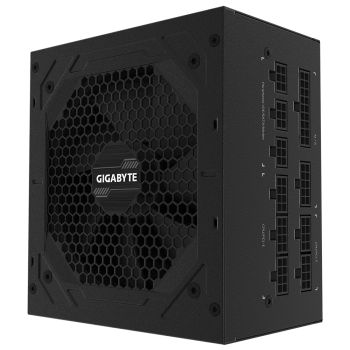

Product information for Gigabyte GP-P850GM:
Gigabyte P850GM - 850 W Power Supply Unit – 850 W ATX-PC-Netzteil mit 80 PLUS Gold-Effizienz
Das Gigabyte P850GM ist ein internes PC-Netzteil mit 850 W Leistung und 80 PLUS Gold-Zertifizierung, konzipiert für Desktop-Rechner mit moderaten bis hohen Leistungsanforderungen wie Gaming- oder Multimedia-Systeme. Es bietet vollmodulares Kabelmanagement, gute Effizienz und solide Schutzschaltungen für zuverlässigen Betrieb.
Das Gigabyte P850GM ist ein internes PC-Netzteil mit 850 W Leistung und 80 PLUS Gold-Zertifizierung, konzipiert für Desktop-Rechner mit moderaten bis hohen Leistungsanforderungen wie Gaming- oder Multimedia-Systeme. Es bietet vollmodulares Kabelmanagement, gute Effizienz und solide Schutzschaltungen für zuverlässigen Betrieb.
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging data | |
| Package type | Box |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 600,750,900 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 2 |
| Floppy disk drive cable length | 89 cm |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | |
| ATX power connector (20+4 pin) | |
| Floppy disk drive connector | |
| Power | |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
