GIGABYTE B760M G P WIFI DDR4 LGA1700 4xDDR4 4xSATA 2xM.2
|
113,15 EUR 114,71 EUR |
|
|
( 134,65 EUR incl. VAT ) ≈ £94.82 | ≈ $127.07 plus delivery charges: 53,00 € |
|
| On order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 2180090 |
| Mfg Part No: | B760M G P WIFI DDR4 |
| UPC/EAN: | 4719331862855 |
| Weight: | 1.15 kg |
Product information for Gigabyte B760M G P WIFI DDR4:

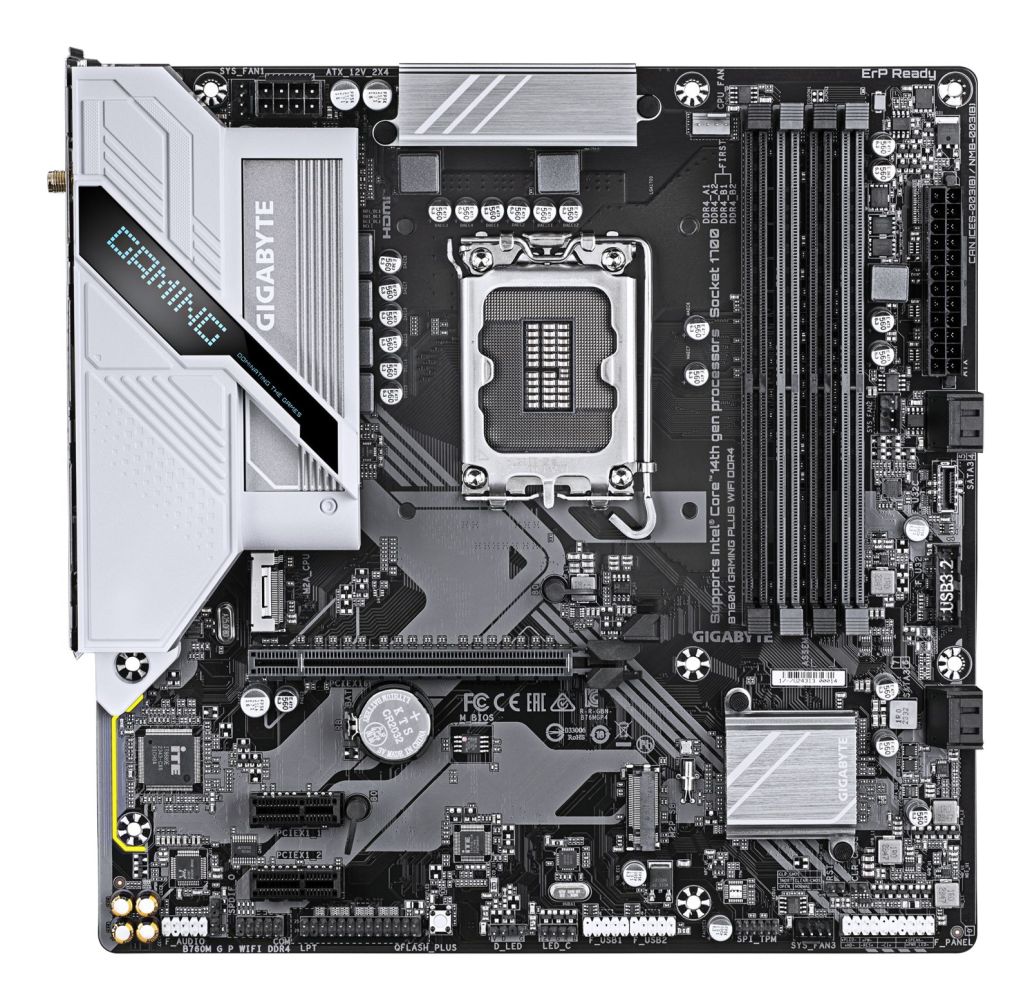

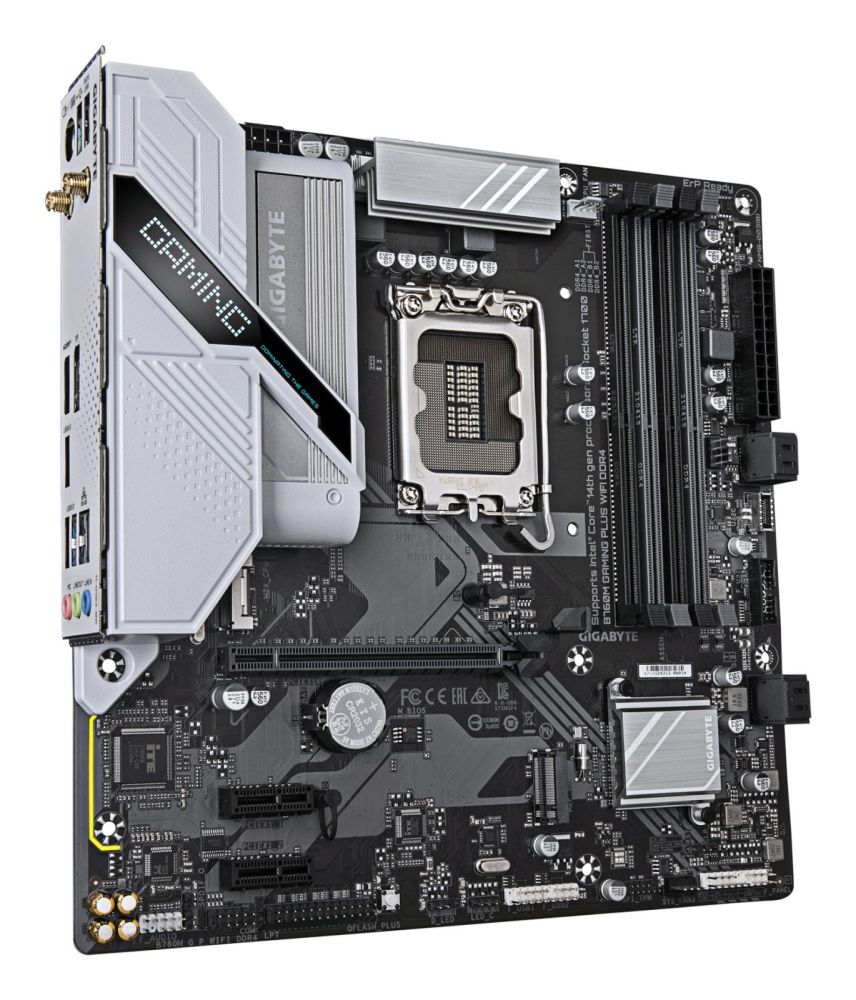

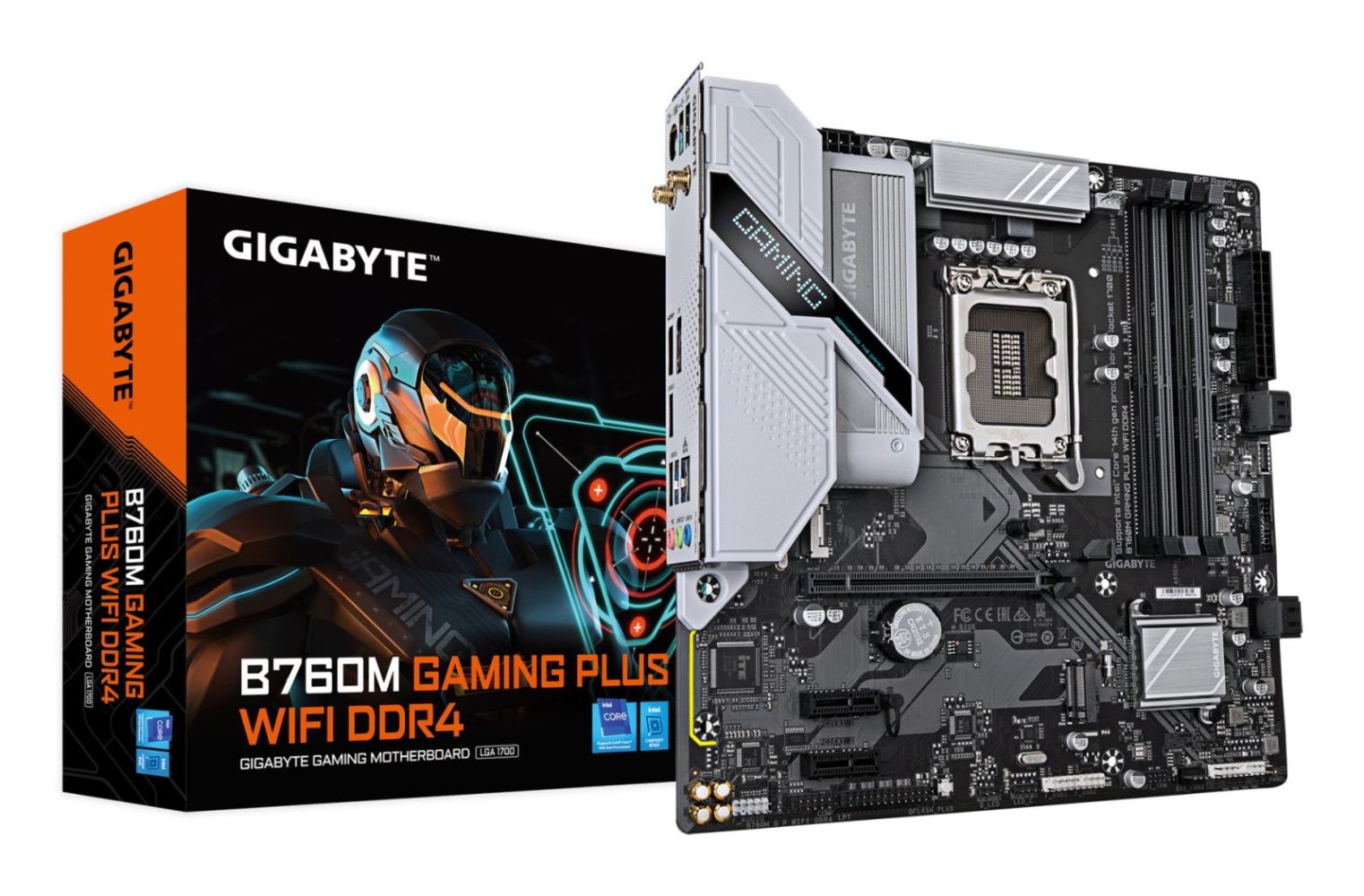

Gigabyte B760M G P WIFI DDR4 – Micro-ATX Mainboard (EAN: 4719331862855)
Das Gigabyte B760M G P WIFI DDR4 ist ein vielseitiges Mainboard für moderne Intel-Systeme und unterstützt Core-Prozessoren der 12., 13. und 14. Generation im LGA1700-Sockel. Mit dem Intel B760-Chipsatz, DDR4-Support bis 5333 MHz (OC) und bis zu 128 GB RAM bietet es eine solide Basis für Gaming- und Allround-PCs.
Zur Ausstattung gehören 2× PCIe 4.0 M.2-Slots, Wi-Fi 6, Gigabit-LAN sowie moderne Anschlüsse wie USB-C, HDMI und DisplayPort. Die stabile Spannungsversorgung und Smart-Fan-Technologie sorgen für zuverlässige Performance und effiziente Kühlung.
Dank Micro-ATX-Format, einfacher Installation und vielseitiger Konnektivität ist das Board ideal für kompakte Gaming- oder Office-Builds mit hoher Leistung und guter Erweiterbarkeit.
Das Gigabyte B760M G P WIFI DDR4 ist ein vielseitiges Mainboard für moderne Intel-Systeme und unterstützt Core-Prozessoren der 12., 13. und 14. Generation im LGA1700-Sockel. Mit dem Intel B760-Chipsatz, DDR4-Support bis 5333 MHz (OC) und bis zu 128 GB RAM bietet es eine solide Basis für Gaming- und Allround-PCs.
Zur Ausstattung gehören 2× PCIe 4.0 M.2-Slots, Wi-Fi 6, Gigabit-LAN sowie moderne Anschlüsse wie USB-C, HDMI und DisplayPort. Die stabile Spannungsversorgung und Smart-Fan-Technologie sorgen für zuverlässige Performance und effiziente Kühlung.
Dank Micro-ATX-Format, einfacher Installation und vielseitiger Konnektivität ist das Board ideal für kompakte Gaming- oder Office-Builds mit hoher Leistung und guter Erweiterbarkeit.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Grey |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 1 |
| Serial port headers | 1 |
| Number of RGB LED pin headers | 2 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| Parallel connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Wi-Fi | |
| Bluetooth | |
| Other features | |
| Weight | 1.1 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |
| Antenna included | |
| Screws included | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.2 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |

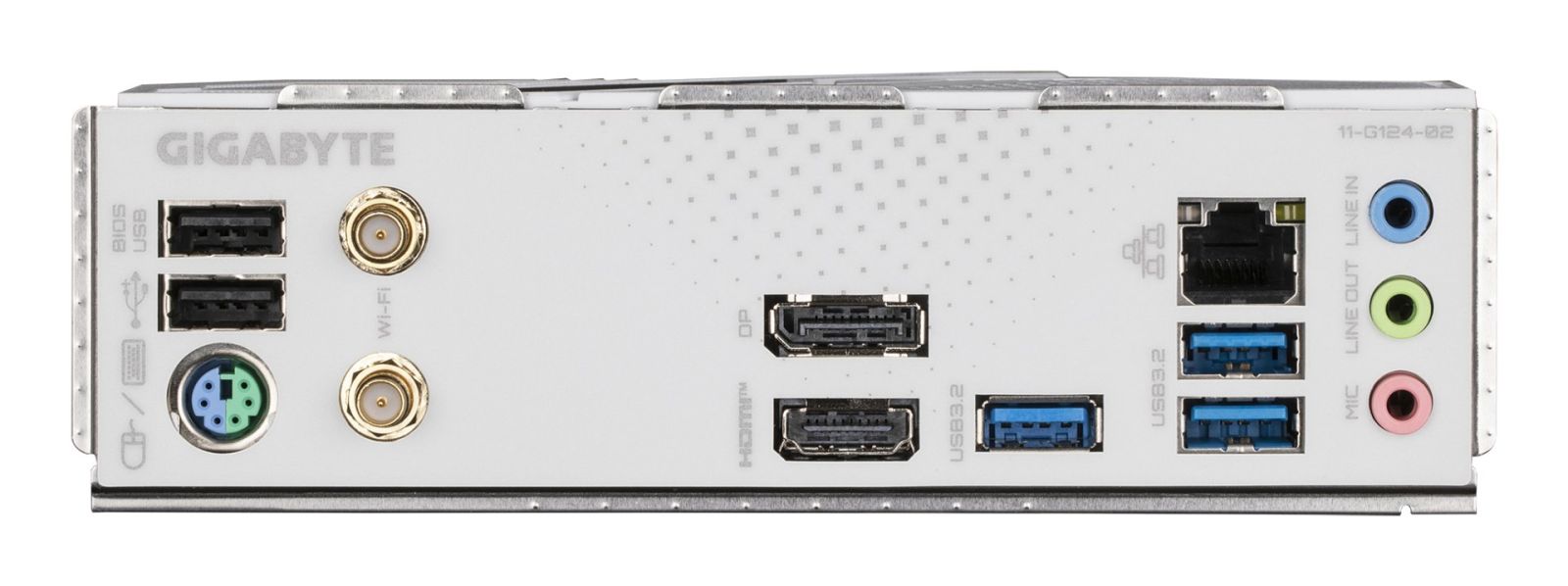

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 2 |
| Line-in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
