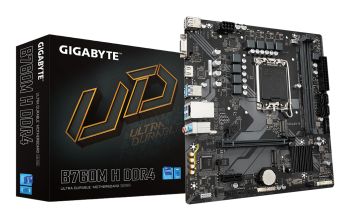

Gigabyte B760M H DDR4 (B760,S1700,mATX,DDR4)
|
77,23 EUR 79,05 EUR |
|
|
( 91,90 EUR incl. VAT ) ≈ £64.72 | ≈ $85.96 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 01.01.2199info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2073900 |
| Mfg Part No: | B760M H DDR4 |
| UPC/EAN: | 4719331854645 |
| Weight: | 0.836 kg |
Product information for Gigabyte B760M H DDR4:
Gigabyte B760M H DDR4 – Dieses Micro-ATX-Mainboard von GIGABYTE bildet eine solide Grundlage für moderne Intel-PC-Builds mit LGA 1700-Sockel und unterstützt Prozessoren der 12., 13. und 14. Generation. Es nutzt den Intel B760-Chipsatz und ist auf DDR4-Speicher ausgelegt, was eine kosteneffiziente und zuverlässige Plattform für Alltags-, Büro- oder Gaming-Systeme bietet. Mit vielseitigen Anschluss- und Erweiterungsmöglichkeiten, integriertem Gigabit-LAN, mehreren SATA- und M.2-Anschlüssen sowie gängigen USB-Ports bringt es Flexibilität und stabile Performance in kompakte Builds.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| Features | |
| Motherboard chipset | Intel B760 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Graphics | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.1 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Serial port headers | 1 |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Wi-Fi | |
| Packaging content | |
| Batteries included | |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 825 g |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 64 GB |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm |
Questions & answers
What is the delivery time of Gigabyte B760M H DDR4 (B760,S1700,mATX,DDR4)?
The article Gigabyte B760M H DDR4 (B760,S1700,mATX,DDR4) is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Gigabyte B760M H DDR4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Gigabyte B760M H DDR4 (B760,S1700,mATX,DDR4) always at the best possible price. We can give you a discount of 2% on Gigabyte B760M H DDR4 (B760,S1700,mATX,DDR4) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
