GIGABYTE B760M G X DDR4 GEN5
|
106,38 EUR 106,98 EUR |
|
|
( 126,59 EUR incl. VAT ) ≈ £89.57 | ≈ $119.46 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 939001 |
| Mfg Part No: | B760M G X DDR4 GEN5 |
| UPC/EAN: | 4719331874087 |
| Weight: | 1.4 kg |
Further Miscellaneous from GigabyteFurther products in category Miscellaneous
All products of Gigabyte
Product information for Gigabyte B760M G X DDR4 GEN5:

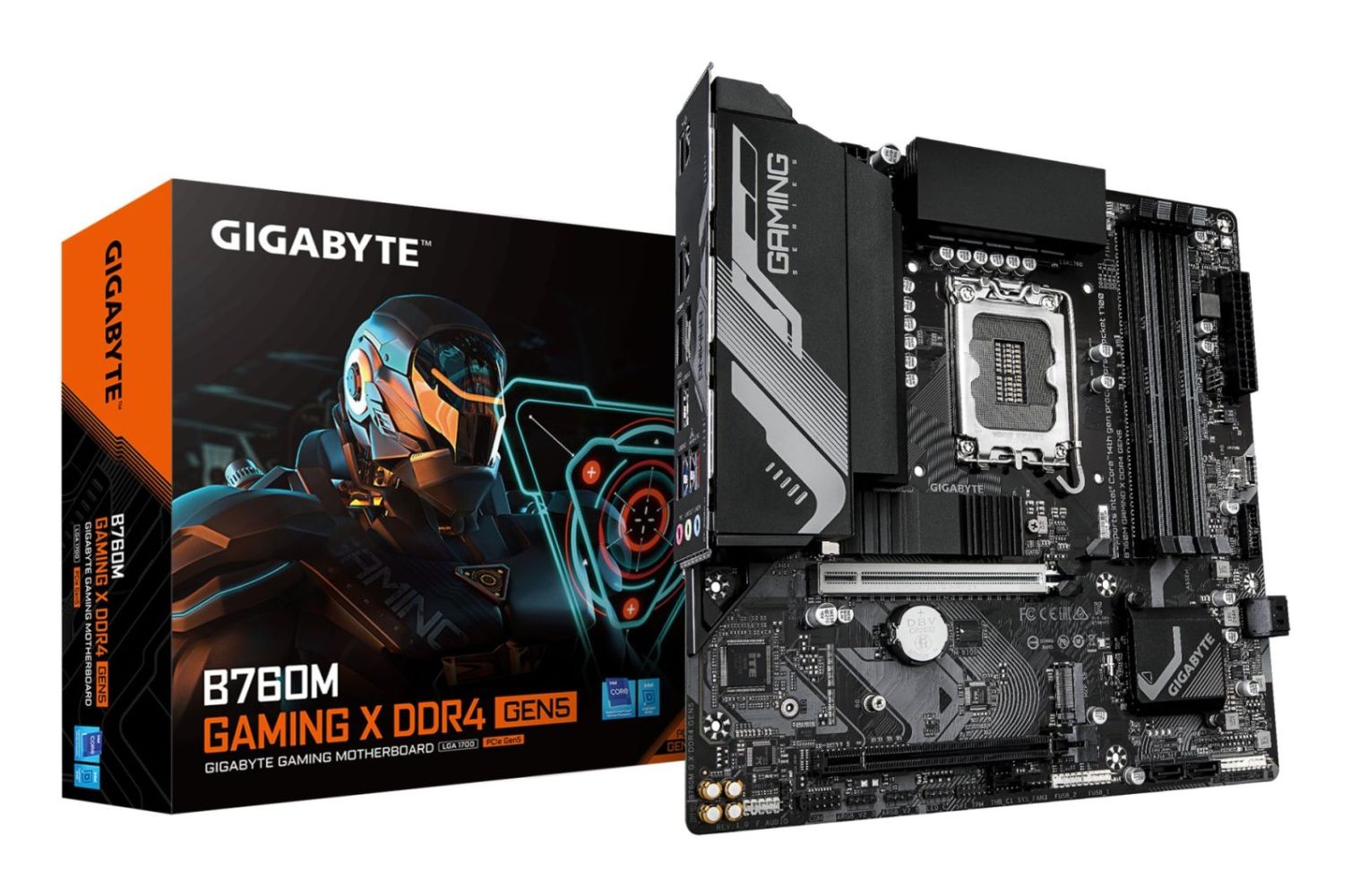

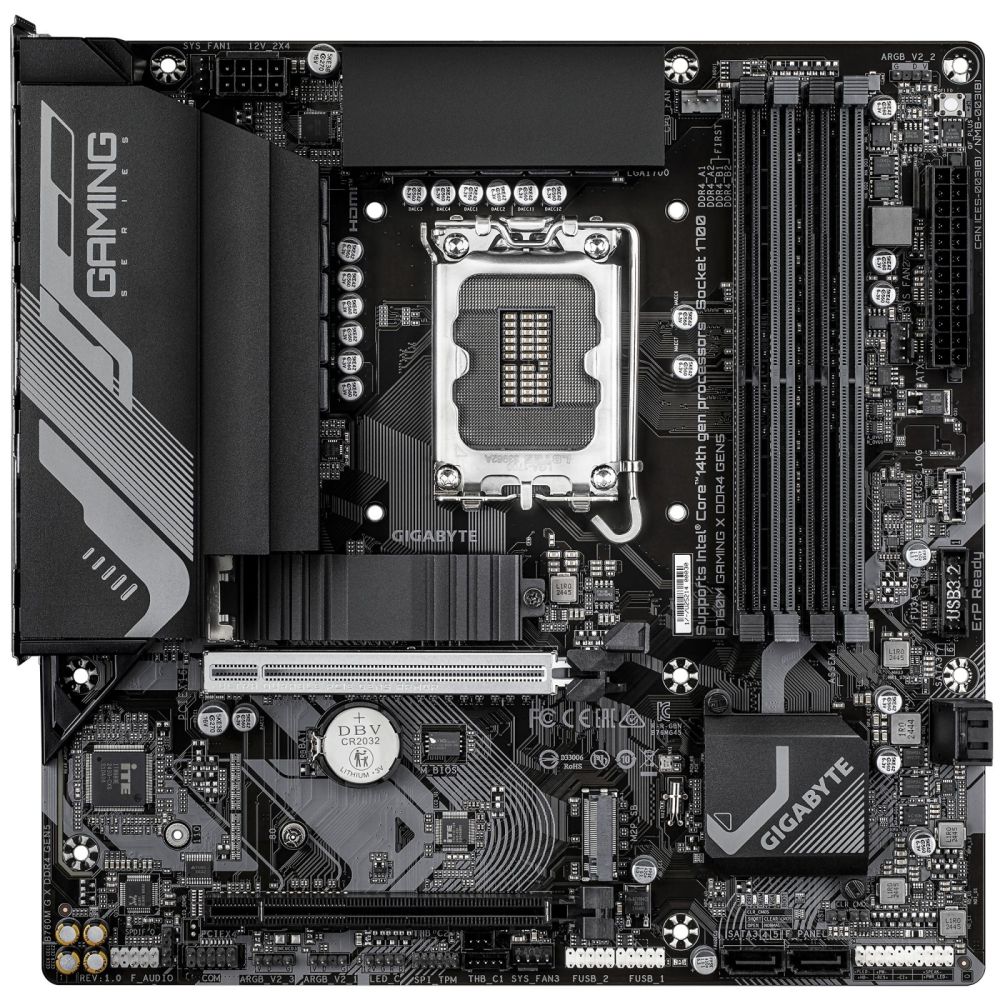

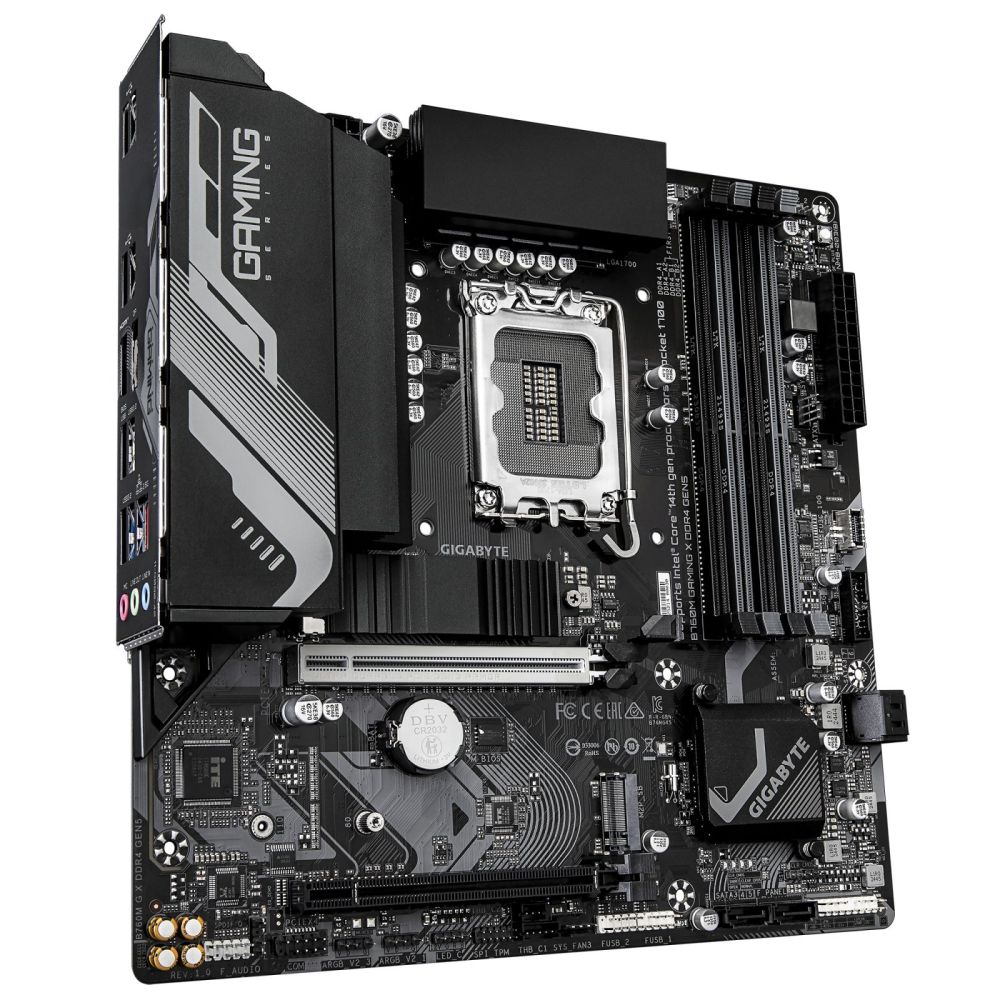

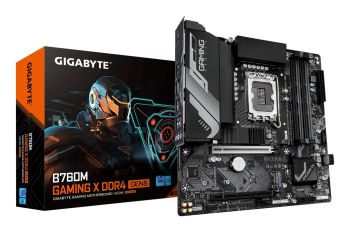

Gigabyte B760M G X DDR4 GEN5 – Mainboard – Intel B760, LGA1700
Das Gigabyte B760M G X DDR4 GEN5 Mainboard bietet eine leistungsstarke Grundlage für moderne PCs mit Intel-Prozessoren der 12., 13. und 14. Generation. Mit dem Intel-B760-Chipsatz, Unterstützung für bis zu 128 GB DDR4-Arbeitsspeicher und schnellen PCIe-Gen-4- sowie M.2-Schnittstellen sorgt es für hohe Performance im Gaming- oder Arbeits-PC. Funktionen wie 2,5-Gigabit-LAN, zahlreiche USB-Anschlüsse und stabiles VRM-Design gewährleisten zuverlässige Konnektivität und effiziente Systemleistung.
Das Gigabyte B760M G X DDR4 GEN5 Mainboard bietet eine leistungsstarke Grundlage für moderne PCs mit Intel-Prozessoren der 12., 13. und 14. Generation. Mit dem Intel-B760-Chipsatz, Unterstützung für bis zu 128 GB DDR4-Arbeitsspeicher und schnellen PCIe-Gen-4- sowie M.2-Schnittstellen sorgt es für hohe Performance im Gaming- oder Arbeits-PC. Funktionen wie 2,5-Gigabit-LAN, zahlreiche USB-Anschlüsse und stabiles VRM-Design gewährleisten zuverlässige Konnektivität und effiziente Systemleistung.
| Battery | |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Clear CMOS jumper | |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Features | |
| Motherboard chipset | Intel B760 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| HDCP | |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 1 |
| Serial port headers | 1 |
| Thunderbolt headers | 2 |
| Number of RGB LED pin headers | 4 |
| S/PDIF out connector | |
| Front panel audio connector | |
| Front panel connector | |
| ATX Power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12V power connector | |
| RGB LED pin header | |
| Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 3200,3000,2933,2666,2400,2133 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Maximum internal memory per slot | 32 GB |
| Unbuffered memory | |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Ethernet LAN | |
| Wi-Fi | |
| Other features | |
| Weight | 1.19 kg |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | |
| Screws included | |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.6 kg |
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Supported processor sockets | LGA 1700 |

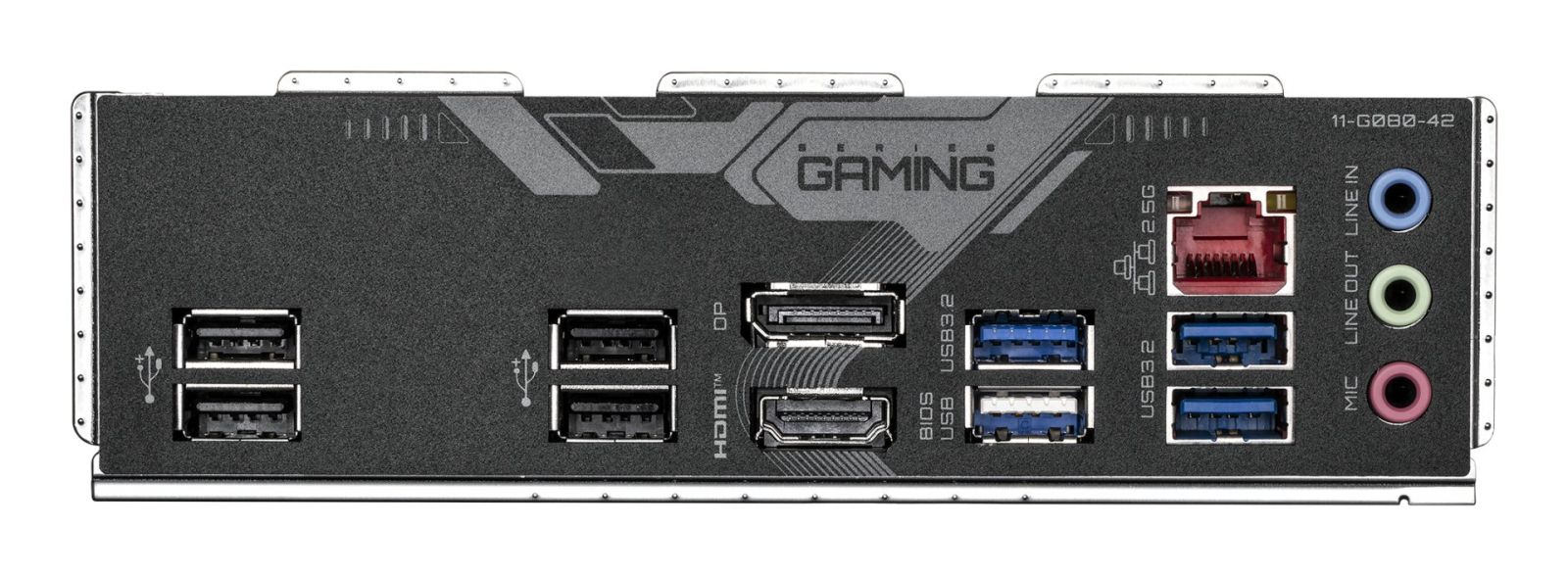

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Line-in | |
| Microphone in | |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Technical details | |
| Warranty period | 3 year(s) |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
